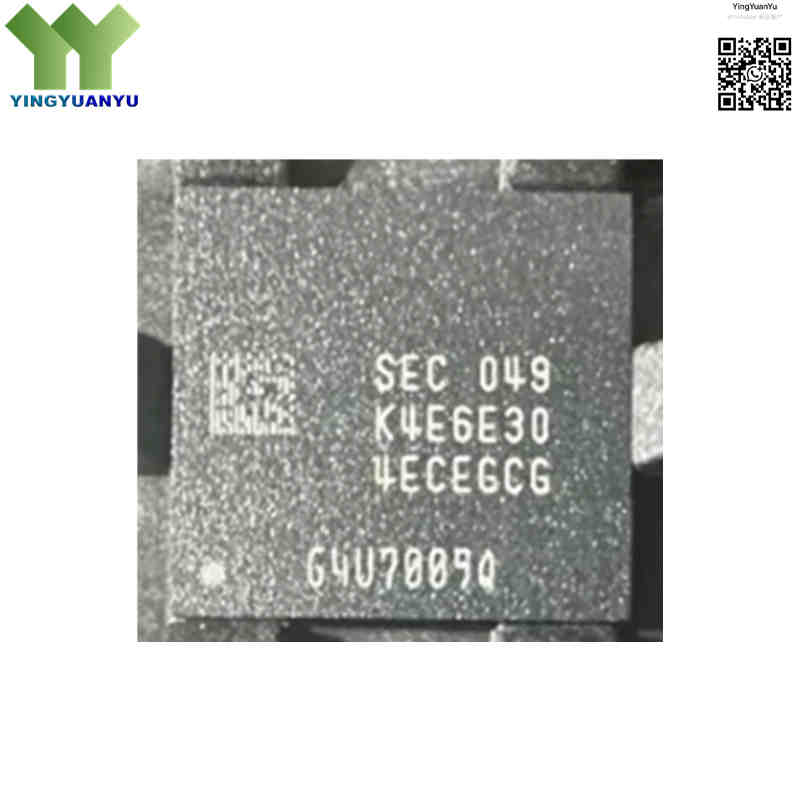

K4E6E304EC-EGCG
K4E6E304EC-EGCG
| Part Number | K4E6E304EC-EGCG |
|---|---|
| Manufacturer | Samsung Electronics |
| Category | Integrated Circuits (ICs) > Memory > LPDDR3 SDRAM |
| Description | 16Gb (2GB) High-Speed Low-Power LPDDR3 SDRAM, 2133 Mbps, 1.2V Core / 1.8V IO, 178-FBGA Package. |
| Stock Status | In Stock |
| Origin | Original Factory |
Product Overview
The K4E6E304EC-EGCG is Samsung’s low-power mobile LPDDR3 DRAM with 16Gb(2GB) capacity. It supports 2133 Mbps high bandwidth for embedded, mobile and single-board devices. Low 1.2V core voltage and multi power-saving modes cut power consumption, compact 178-ball FBGA saves PCB space.
Core Advantages
Ultra-High Bandwidth LPDDR3 Execution
Max 2133 Mbps data transfer speed eliminates memory bandwidth bottlenecks for graphics and multi-task workloads.
Advanced Low-Power Storage Design
Dual voltage rails plus dynamic self-refresh modes cut power consumption and thermal output for portable hardware.
Efficient 8-Bank Memory Architecture
8 independent internal banks support bank interleaving to hide precharge delay and deliver continuous stable data flow.
Samsung Original Process Reliability
Fabricated on Samsung mature semiconductor process, with consistent timing performance and stable reflow soldering tolerance.
Key Specifications
| Brand | Samsung DRAM Series |
|---|---|
| Part Number | K4E6E304EC-EGCG |
| RoHS Status | RoHS Compliant / Halogen-Free / Lead-Free |
| EDA/CAD Model | Schematic symbols, 3D component files and 178-ball BGA landing templates available on request |
| Warranty | 1-Year Standard Quality Warranty |
| Package / Case | 178-FBGA (11mm × 11.5mm) |
| Mounting Type | Surface Mount (SMT / SMD) |
| Surface Marking / Silkscreen | K4E6E304ECEGCG Marking |
| Memory Technology | LPDDR3 SDRAM (Low Power Double Data Rate 3) |
| Density & Organization | 16 Gbit (2GB), 256M x 32, 8 internal banks |
| Bus Frequency / Data Rate | 1066 MHz (1.066GHz) clock frequency / 2133 Mbps data transfer rate per pin |
| Internal Bank Structure | 8-Bank Architecture |
| Operating Core Voltage | 1.2V typical core supply |
| Operating I/O Voltage | 1.8V typical interface buffer supply (1.7V ~ 1.95V tolerance) |
| Operating Temperature Range | -25°C to +85°C (Commercial Mobile Grade) |
| Refresh Mode | Partial Array Self-Refresh(PASR), Deep Power-Down, Clock Stop |
| Data Bus Width | 32-bit |
| Reflow Temperature | Max 260°C Lead-free reflow standard |
| Data Interface | Differential clock, single-ended data strobe |
| Storage Capacity Conversion | 16Gbit = 2GB usable memory space |
Typical Applications
- High-end smartphones, tablets and lightweight ultra-portable notebooks
- Embedded single-board computers (SBC), development kits and AI IoT computing modules
- Automotive infotainment, dashboard display and vehicle telematics units
- HD streaming set-top boxes, smart routers and multimedia gateway equipment
- Industrial handheld terminals, portable scanners and rugged POS payment systems
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Shipped within 1-2 business days |
| Delivery Time | 3-7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
Q1: What does the “EGCG” suffix in K4E6E304EC-EGCG mean?
A1: Samsung internal coding: EG = 2133Mbps speed grade; CG = commercial grade, halogen-free 178-FBGA package.
Q2: Can this LPDDR3 replace desktop DDR3 memory?
A2: No. LPDDR3 has different voltage, pinout and command set; a dedicated mobile memory controller is required.
Q3: What usable storage capacity does this 16Gbit chip have?
A3: 8 bits = 1 byte, 16Gbit equals 2GB physical usable memory.
Q4: What power-saving modes are supported?
A4: Deep Power-Down, Clock Stop, CKE Power-Down and PASR. PASR only refreshes active banks to cut standby power.
Q5: What operating temperature range does this chip support?
A5: Commercial mobile grade, -25°C to +85°C.
Q6: What is the maximum reflow temperature for soldering?
A6: Max 260°C lead-free reflow temperature, meets standard SMT production requirements.
Q7: Do you have alternative replacement models for K4E6E304EC-EGCG?
A7: Yes, we offer compatible LPDDR3 memory chips with matching capacity and speed for substitution.
Q8: Is this component original Samsung new stock?
A8: All parts are original factory new, full traceability with 1-year quality warranty.
Q9: How fast is the delivery after order confirmation?
A9: In-stock items ship within 1-3 working days, bulk orders with negotiable lead time.
