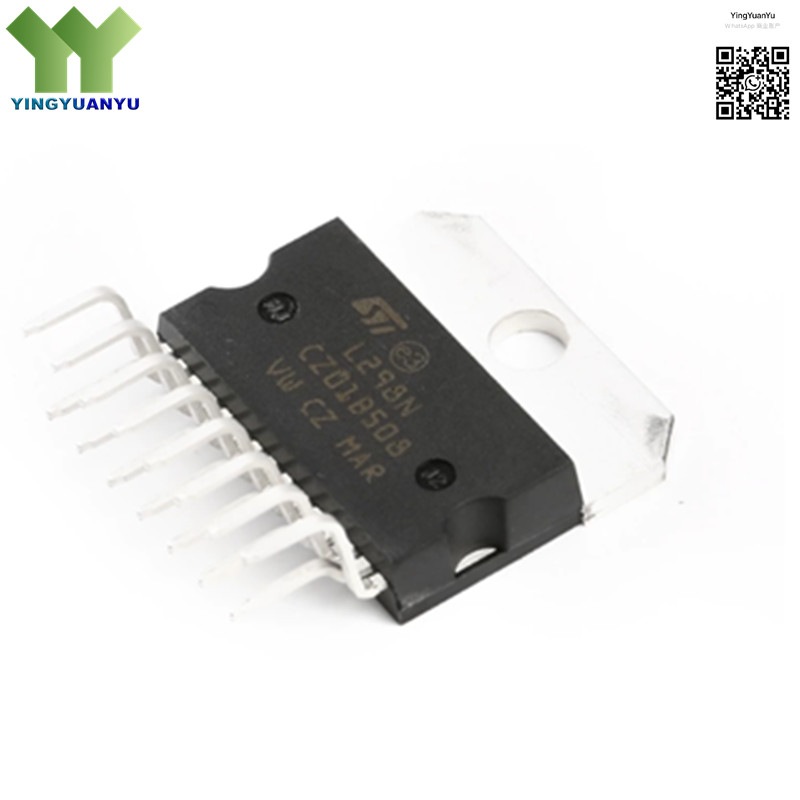

L298N
L298N
| Part Number | L298N |
|---|---|
| Manufacturer | STMicroelectronics |
| Category | Motor Driver ICs; Dual Full-Bridge Motor Drivers |
| Description | Dual Full-Bridge DC Motor Driver, 4.5V~46V, 2A, High Voltage, High Current, Multiwatt-15 Package |
Product Overview
The L298N is a high-voltage, high-current dual full-bridge motor driver designed to drive inductive loads such as DC motors, stepping motors, relays, and solenoids. It can control two DC motors independently with bidirectional drive capability, supporting forward, reverse, and brake modes. The device features a wide operating voltage range up to 46V, continuous output current up to 2A per channel, built-in thermal shutdown, and over-current protection for reliable operation. With standard TTL/CMOS logic level inputs, it is easily compatible with microcontrollers and embedded systems, making it a widely used solution for motor control in robotics, industrial automation, and educational electronics.
| Key Specifications | |
|---|---|
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Brand | STMicroelectronics |
| Operating Voltage | 4.5V ~ 46V |
| Output Current | 2A per Channel (Continuous) |
| Package Type | Multiwatt-15 (Vertical) |
| Operating Temperature | -25°C to +130°C |
Typical Applications
- DC Motor Drive & Control Systems
- Stepper Motor Driver Modules
- Robotics & Smart Car Platforms
- Industrial Automation Equipment
- DIY Electronics & Educational Kits
- Model Trains & RC Toys
- Relay & Solenoid Control
- Embedded Motor Control Applications
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
