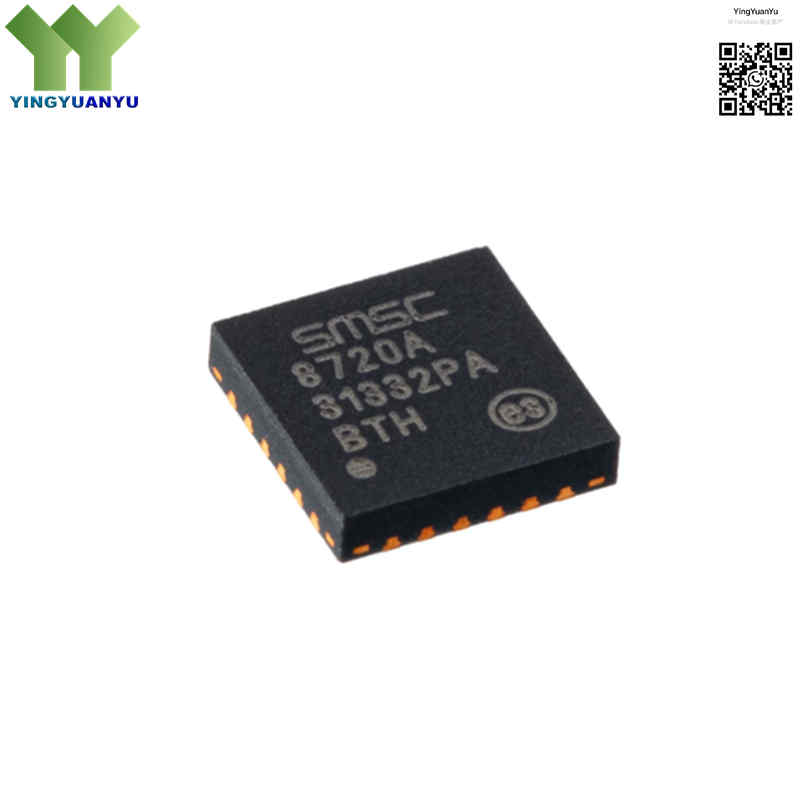

LAN8720A-CP-TR-ABC
LAN8720A-CP-TR-ABC
| Part Number | LAN8720A-CP-TR-ABC |
|---|---|
| Manufacturer | Microchip Technology |
| Category | Integrated Circuits (ICs) > Interface – Telecom / Ethernet PHY transceivers |
| Description | High-performance, ultra-low power 10/100 Ethernet physical layer (PHY) transceiver featuring a reduced pin count RMII interface, integrated 1.2V linear regulator, and HP Auto-MDIX support, housed in a compact 24-pin QFN package. |
| Stock Status | In Stock |
| Origin | Original Factory |
Product Overview
The LAN8720A-CP-TR-ABC is a compact, low-power 10/100 Ethernet PHY transceiver from Microchip for cost & space-limited embedded networking systems. It adopts the RMII interface to cut pin counts vs traditional MII, and integrates Microchip FlexPWR® 1.2V LDO to support single 3.3V power supply and lower BOM cost. Built-in HP Auto-MDIX auto-corrects cable polarity without crossover cables. Packaged in thermal-enhanced 24-pin QFN, it’s ideal for IoT gateways, industrial controllers, IP cameras and network test instruments.
Core Advantages
Ultra-Compact and Reduced Pin Count
Utilizes a streamlined RMII interface implementation to cut down peripheral trace routing by up to 40% compared to standard MII networks, freeing up valuable microcontroller I/O pins for custom hardware execution.
Integrated 1.2V Linear Regulator
Features an onboard internal voltage regulator to supply the core logic components directly from the external 3.3V rail, simplifying multi-voltage trace topologies and shrinking overall discrete circuit complexity.
Advanced FlexPWR® Low Power Modes
Incorporates specialized power management modes, including low-current standby and Energy Efficient Ethernet (EEE) states, optimizing system thermal profiles and decreasing constant power drainage.
Seamless Cable Diagnostic Deployment
Supports robust HP Auto-MDIX configurations along with built-in loopback capabilities, allowing the transceiver to dynamically fix cross-wired cable errors and accelerate system initialization diagnostics.
Key Specifications
| Brand | Microchip Technology |
|---|---|
| RoHS Status | RoHS Compliant / Lead-Free Standard (Green Lead-Free Assembly Standard) |
| EDA/CAD Model | 3D Model & PCB Footprint Available upon request |
| Warranty | 1-Year Standard Factory Warranty |
| Package / Case | QFN-24-EP (4mm x 4mm) |
| Mounting Type | Surface Mount Technology (SMD/SMT) |
| Surface Marking / Silkscreen | 8720A Marking |
| Data Transfer Rate | 10/100 Mbps (Fast Ethernet compliance auto-negotiation) |
| Duplex Mode Support | Auto-negotiable Full-Duplex & Half-Duplex transmission modes |
| MAC Interface Type | RMII (Reduced Media Independent Interface) supports 50 MHz reference clock |
| Management Interface | MDC/MDIO SMII serial interface for PHY register configuration |
| Crossover Support | HP Auto-MDIX Automatic Cable Detection and Correction |
| Integrated Clock Sources | Supports external 25 MHz crystal oscillator or 50 MHz RMII reference clock inputs |
| Internal Voltage Generation | Integrated 1.2V LDO Regulator for internal silicon core operations |
| Operational Supply Voltage | +1.6V to +3.6V variable I/O tolerance with a nominal +3.3V main rail input |
| Typical Power Consumption | 40mW typical active power, ultra-low standby power via FlexPWR® power management |
| ESD Protection | ±15kV contact ESD protection on Ethernet differential signal pins |
| Operating Temperature Range | 0°C to +85°C (Extended Commercial Temperature Range) |
| Industry Compliance Standard | IEEE 802.3, IEEE 802.3u Fast Ethernet specification compliant |
| Moisture Sensitivity Level | MSL3, 168 hours floor life under 30°C / 60% RH storage condition |
Typical Applications
- Smart Home Internet-of-Things (IoT) Hubs, Network Gateways, and Connected Home Appliances
- Industrial Automation Control Units, Distributed Sensor Clusters, and Programmable Controllers
- High-Definition IP Security Cameras, Network Video Recorders (NVR), and Access Monitors
- Network-Attached Storage (NAS) Enclosures, Smart Print Servers, and Small Office Routers
- Embedded Processing Development Systems, Single Board Computers (SBC), and Media Streaming Bridges
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Shipped within 1-2 business days |
| Delivery Time | 3-7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
Q1: Is your currently available stock of the LAN8720A-CP-TR-ABC transceiver 100% genuine and original?
A: Yes, we guarantee that all LAN8720A-CP-TR-ABC components in our warehouse are 100% brand-new, factory-original products directly from Microchip Technology. Every batch is cataloged and packed inside anti-static ESD shielding bags under strict moisture sensitivity level (MSL) conditions.
Q2: What is the exact layout configuration meaning designated by the “TR” parameter suffix?
A: The “TR” designation in Microchip’s part-numbering matrix represents Tape and Reel packaging. This means the components are supplied on continuous carrier tapes wound onto standard reels, optimized for rapid pick-and-place operation on automated SMT assembly lines.
Q3: Do I need to supply an external 50 MHz clock signal when interfacing this PHY chip via RMII?
A: The LAN8720A is highly flexible. It can either generate the required 50 MHz RMII reference clock internally from an inexpensive 25 MHz crystal, or it can accept an externally derived 50 MHz clock trace on its REF_CLK pin from your host MCU or clock buffer.
Q4: How can our hardware design division request schematic design guides, IBIS simulation models, or ask for special volume pricing tiers?
A: Please complete our Quick Inquiry web form on this page with details about your project parameters. Our application support desk will process your inquiry and dispatch the available technical documentation package within 24 hours.
