LFCG-1575+
LFCG-1575+
| Part Number | LFCG-1575+ |
|---|---|
| Manufacturer | Mini-Circuits |
| Category | RF Filters; GPS Band Pass Filters |

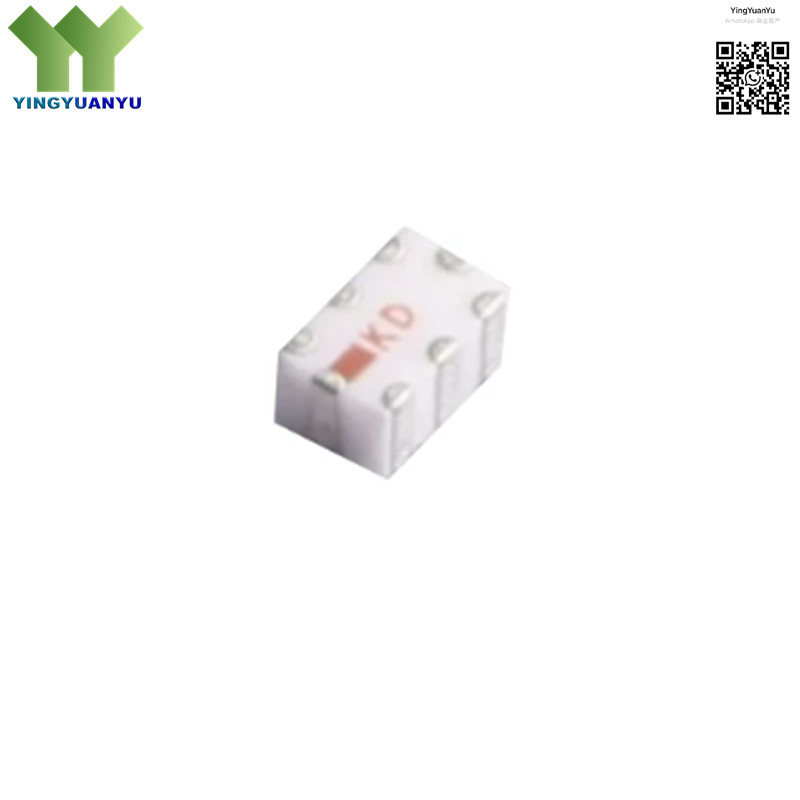

| Description | GPS Band Pass Filter, 1575 MHz Center Frequency, 50Ω, Low Insertion Loss, SMD-8P,2×1.2mm Package |
Product Overview
The LFCG-1575+ is a high-performance surface-mount band pass filter specifically optimized for GPS L1 band (1575.42 MHz) applications. It delivers excellent out-of-band rejection, low insertion loss, and sharp roll-off characteristics to enhance signal purity and reduce interference in GNSS receiver systems. Utilizing advanced ceramic and thin-film technology, this filter provides stable performance, high reliability, and consistent electrical characteristics across wide temperature ranges. With 50Ω impedance matching and a compact SMD form factor, it enables seamless integration into GPS modules, navigation systems, and high-density RF designs.
| Key Specifications | |
|---|---|
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Brand | Mini-Circuits |
| Center Frequency | 1575.42 MHz (GPS L1) |
| Impedance | 50Ω |
| Insertion Loss | 1.2 dB Typical |
| Package Type | SMD-8P,2×1.2mm |
| Operating Temperature | -40°C to +85°C |
Typical Applications
- GPS L1 Receiver Front-Ends
- GNSS Navigation Modules
- Vehicle Tracking Systems
- Wearable GPS Devices
- RF Signal Conditioning for GNSS
- Interference Rejection Circuits
- High-Density GPS PCB Designs
- Industrial & Commercial GNSS Systems
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
