LFCN-160+
LFCN-160+
| Part Number | LFCN-160+ |
| Manufacturer | Mini-Circuits |
| Category | RF Components > RF Filters > Ceramic Low Pass RF Filter |
| Description | 8W SMD Low Pass Filter, DC~230MHz Cutoff,Stopband Attenuation; Min 20dB / Typ 35dB out of passband, 50Ohm RF Harmonic & Spurious Suppression Component,SMD-4P,3.2×1.6mm Package |
Product Overview

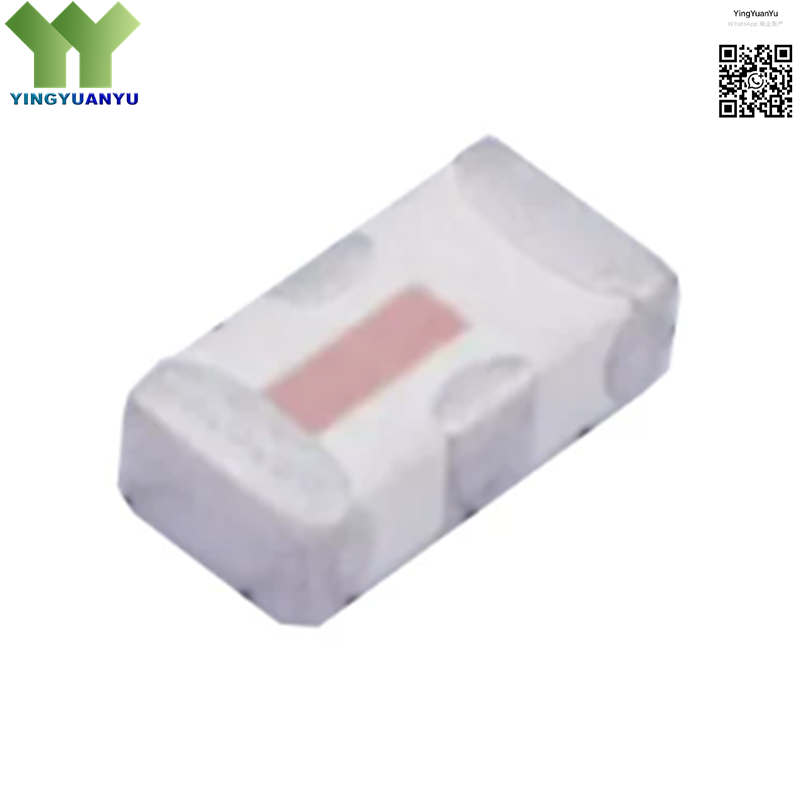

The LFCN-160+ is compact multilayer ceramic low pass RF filter from Mini-Circuits with 230MHz cutoff frequency. Adopting advanced multilayer ceramic manufacturing technology, this SMD filter delivers low insertion loss inside passband and high attenuation for out-of-band harmonic signals and high-frequency interference. Miniature surface mount form factor supports automated SMT assembly for mass PCB production, maintaining consistent electrical performance across full working temperature range. Widely used for front-end filtering, LO spurious suppression and harmonic elimination in HF/VHF wireless modules, test instruments and analog RF transceiver circuits.
Key Specifications
| Brand | Mini-Circuits |
| RoHS | RoHS Compliant |
| EDA / CAD | Symbols, Footprints, 3D Models Available |
| Warranty | 1 Year Standard Warranty |
| Package / Case | SMD-4P,3.2×1.6mm Package |
| Mounting Type | Surface Mount |
| Surface Marking / Silkscreen | LFCN-160+ |
| Passband Range | DC ~ 230MHz |
| Nominal Impedance | 50 Ohm |
| Passband Insertion Loss | Low Insertion Loss 1dB |
| Operating Temperature | -40°C ~ 85°C |
Typical Applications
- VHF Radio Transceiver Front-End Low Pass Filter
- RF Test & Measurement Equipment Signal Conditioning
- Ham Radio HF/VHF Receiver Harmonic Suppression Circuit
- Industrial Wireless Data Transmission Module Filtering
- RF Power Amplifier Output Harmonic Elimination Unit
- Shortwave Communication Receiver Input Filter Module
- IoT Low Frequency RF Wireless Node Matching Filter
- Signal Generator Low Pass Output Filter Circuits
Order & Shipping Info
Minimum Order Quantity (MOQ): 1 Piece
Shipping Time: Shipped within 1-2 business days
Delivery Time: 3-7 working days worldwide
Shipping Methods: DHL, UPS, FedEx, EMS
Payment Methods: T/T (Bank Transfer), PayPal, Credit Card, Western Union
Technical Support
Frequently Asked Questions
Q1: Is LFCN-160+ RoHS compliant?
A: Yes, this product fully complies with RoHS environmental standards.
Q2: Can I apply for product samples for testing?
A: Sample service is available, please submit your request via the Quick Inquiry form.
Q3: What is the package and mounting type?
A: It adopts SMD-4P,3.2×1.6mm package and surface mount type for PCB assembly.
Q4: What is the typical insertion loss of LFCN-160+ within passband?
A: The component owns low typical insertion loss in DC~230MHz passband:1dB.
