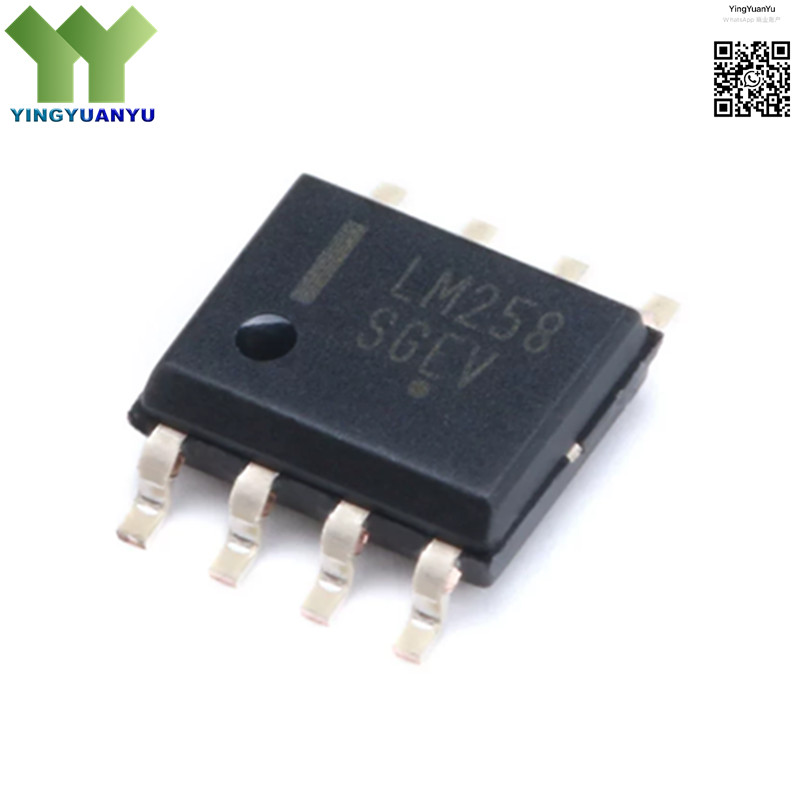

LM258DR2G
LM258DR2G
| Part Number | LM258DR2G |
|---|---|
| Manufacturer | ON Semiconductor |
| Category | Operational Amplifiers; Dual Low Power Op Amps |
| Description | Dual Operational Amplifier, Wide Supply Range, Low Power, 3V-32V, SOIC-8 Package |
Product Overview
The LM258DR2G is a dual high-performance operational amplifier designed for general-purpose analog circuits. It features a wide single/dual supply voltage range (3V to 32V), low quiescent current consumption, and stable operation across temperature. The device offers true differential input capability, low input offset voltage, and excellent gain bandwidth performance for industrial, consumer, and automotive applications. Housed in a standard SOIC-8 surface-mount package, it provides reliable performance, easy integration, and cost-effective amplification for a wide range of signal conditioning and control circuits.
| Key Specifications | |
|---|---|
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Brand | ON Semiconductor |
| Channels | Dual Operational Amplifiers |
| Supply Voltage | 3.0V ~ 32V (Single Supply) |
| Gain Bandwidth | 700 kHz Typical |
| Package Type | SOIC-8 |
| Operating Temperature | -40°C to +125°C |
Typical Applications
- General-Purpose Signal Amplification
- Sensor Signal Conditioning
- Active Filter Circuits
- Industrial Control Systems
- Automotive Electronics
- Battery-Powered Portable Devices
- Audio Preamplifiers
- Voltage Followers & Comparators
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
