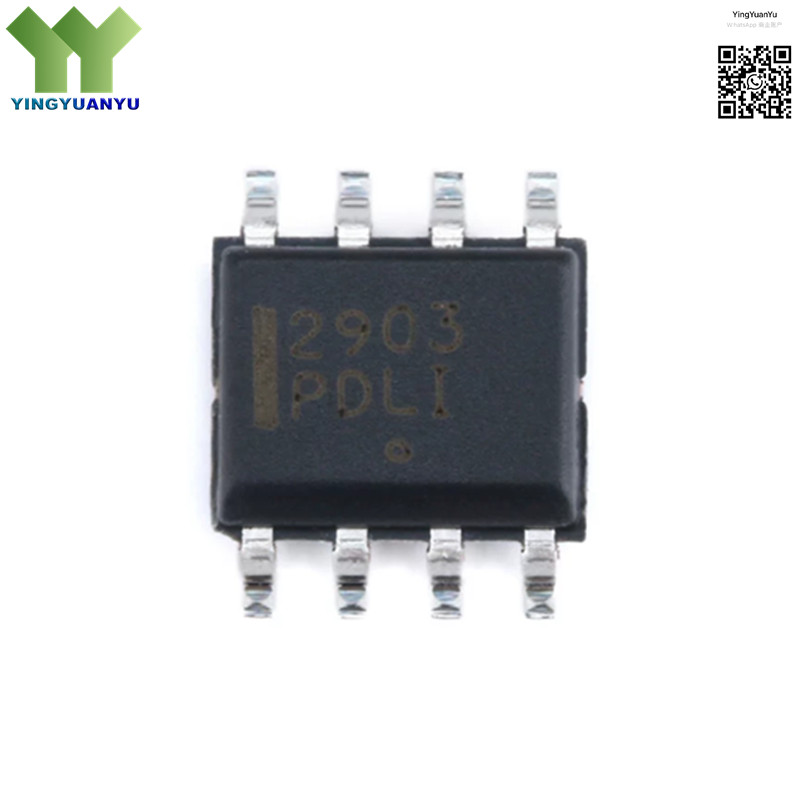

LM2903DR2G
LM2903DR2G
| Part Number | LM2903DR2G |
|---|---|
| Manufacturer | ON Semiconductor |
| Category | Linear ICs; Dual Differential Comparators |
| Description | Dual High-Precision Voltage Comparator, Open-Collector Output, 2V–36V, SOIC-8 Package |
Product Overview
The LM2903DR2G is a dual-channel precision voltage comparator designed for a wide range of industrial, automotive, and consumer applications. It features two independent comparators with open-collector outputs, wide single/dual supply voltage operation (2V to 36V), low input offset voltage, and low power consumption. The device supports rail-to-rail input common-mode range and is optimized for reliable voltage comparison, level detection, and signal conditioning in harsh operating environments. Housed in a compact SOIC-8 surface-mount package, it offers high stability and ease of integration into control and sensing systems.
| Key Specifications | |
|---|---|
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Brand | ON Semiconductor |
| Channels | Dual Independent Comparators |
| Supply Voltage | 2.0V ~ 36V (Single/Dual Supply) |
| Output Type | Open-Collector |
| Package Type | SOIC-8 (Surface Mount) |
| Operating Temperature | -40°C to +125°C |
Typical Applications
- Voltage Level Detection & Monitoring
- Signal Conditioning & Waveform Shaping
- Automotive Electronics & Control Systems
- Industrial Sensors & Measurement Equipment
- Battery Management & Overvoltage Protection
- Power Supply Regulation & Fault Detection
- Consumer Electronics & Appliances
- Zero-Crossing Detection Circuits
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
