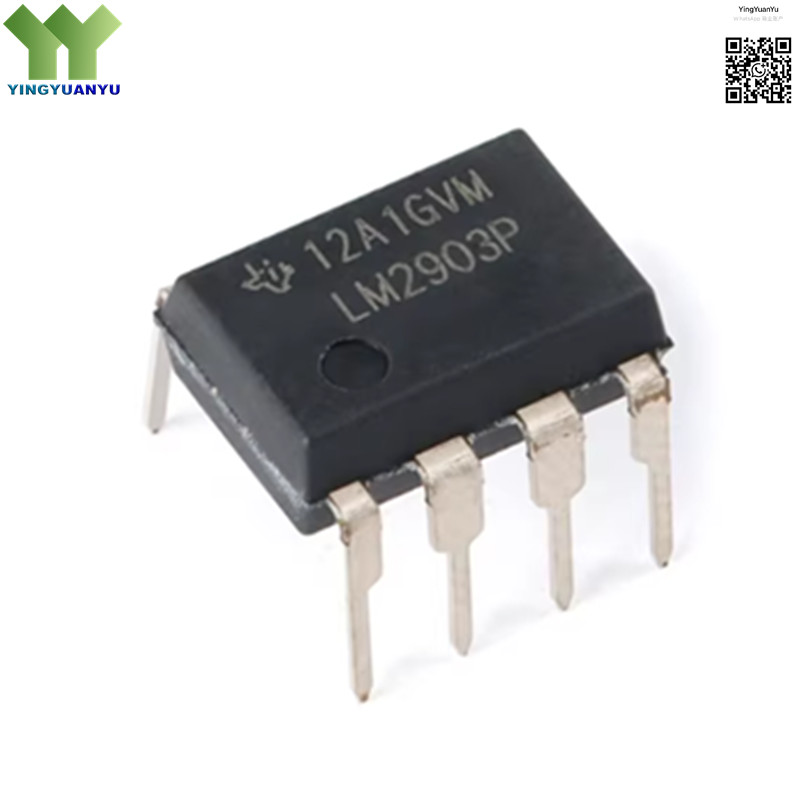

LM2903P
LM2903P
| Part Number | LM2903P |
|---|---|
| Manufacturer | Texas Instruments |
| Category | Linear Comparators; Dual Differential Voltage Comparators |
| Description | Dual Independent Voltage Comparator, Wide Supply Range, Open-Collector Output, DIP-8 Package |
Product Overview
The LM2903P is a widely used, dual-channel differential voltage comparator designed for general-purpose industrial, automotive, and consumer electronic applications. It features two independent high-precision comparators with a wide single/dual supply voltage range (2V to 36V), low input offset voltage, and open-collector outputs for flexible system integration. The device supports rail-to-rail input common-mode voltage range, low power consumption, and fast response speed, making it ideal for voltage monitoring, level detection, and signal comparison tasks. With robust ESD protection and wide temperature tolerance, it ensures stable operation in harsh environments. Housed in a through-hole DIP-8 package, it is easy to prototype and integrate into industrial control systems.
| Key Specifications | |
|---|---|
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Brand | Texas Instruments |
| Channels | Dual Independent Comparators |
| Supply Voltage | 2V ~ 36V (Single/Dual Supply) |
| Output Type | Open-Collector Output |
| Package Type | DIP-8 (Through-Hole) |
| Operating Temperature | -40°C to +125°C |
Typical Applications
- Voltage Level Detection & Monitoring
- Industrial Control & Automation Systems
- Automotive Electronics & Sensor Interfaces
- Battery & Power Supply Management
- Signal Comparison & Waveform Shaping
- Overvoltage/Undervoltage Protection Circuits
- Consumer Electronics & Appliances
- General-Purpose Analog Comparator Designs
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
