LM321LVIDBVR
LM321LVIDBVR
| Part Number | LM321LVIDBVR |
| Manufacturer | Texas Instruments |
| Category | Integrated Circuits > Operational Amplifiers > Single General Purpose Op-Amp |
| Description | Single Channel Low Voltage General Purpose Operational Amplifier, Rail-to-Rail Input/Output,SOT-23-5 Package |
Product Overview
The LM321LVIDBVR is a single-channel general-purpose operational amplifier from Texas Instruments optimized for low-voltage battery-powered applications. Featuring rail-to-rail input and output swing capability, wide supply voltage range and low quiescent current, this op-amp delivers stable amplification performance for signal conditioning circuits. Built-in short-circuit output protection improves circuit reliability against abnormal load conditions. Compact SOT-23-5 small outline package saves PCB layout space and supports automated SMT assembly, widely used for sensor signal amplification, voltage comparison and low-power portable electronic circuit design.
Key Specifications
| Brand | Texas Instruments |
| RoHS | RoHS Compliant |
| EDA / CAD | Symbols, Footprints, 3D Models Available |
| Warranty | 1 Year Standard Warranty |
| Package / Case | SOT-23-5 |
| Mounting Type | Surface Mount |

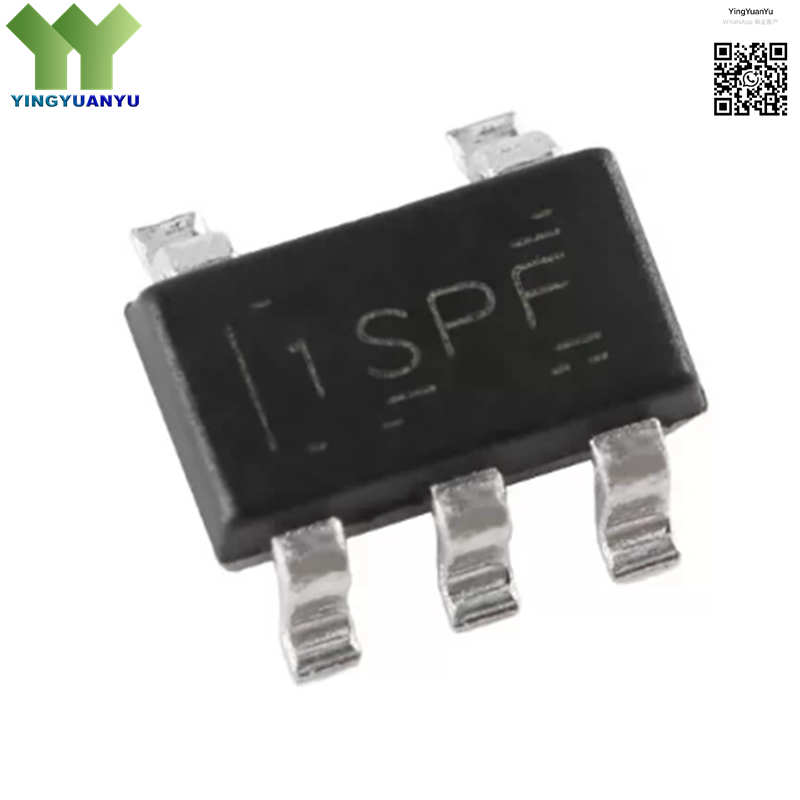

| Surface Marking / Silkscreen | 1SPF Marking |
| Supply Voltage Range | 2.7V ~ 5.5V Single Supply |
| Input/Output Type | Rail-to-Rail |
| Typical Quiescent Current | 210μA per Channel |
| Gain Bandwidth Product | 1MHz Typical |
| Operating Temperature | -40°C ~ 125°C |
Typical Applications
- Various Analog Sensor Signal Amplification Circuits
- Battery Powered Portable Instrument Conditioning Modules
- Low Voltage Voltage Comparator & Level Detection Circuits
- Smart Home Small Electronic Control Boards
- IoT Wireless Module Signal Processing Circuits
- Audio Pre-Amplifier Small Signal Gain Circuits
- LED Constant Current Control Auxiliary Circuits
- Industrial Low Power Field Transmitter Units
Order & Shipping Info
Minimum Order Quantity (MOQ): 1 Piece
Shipping Time: Shipped within 1-2 business days
Delivery Time: 3-7 working days worldwide
Shipping Methods: DHL, UPS, FedEx, EMS
Payment Methods: T/T (Bank Transfer), PayPal, Credit Card, Western Union
Technical Support
Frequently Asked Questions
Q1: Is LM321LVIDBVR RoHS compliant?
A: Yes, this product fully complies with RoHS environmental standards.
Q2: Can I apply for product samples for testing?
A: Sample service is available, please submit your request via the Quick Inquiry form.
Q3: What is the package and mounting type?
A: It adopts SOT-23-5 package and surface mount type for PCB assembly.
Q4: How long is the warranty period?
A: We provide 1 year standard warranty for all products.
