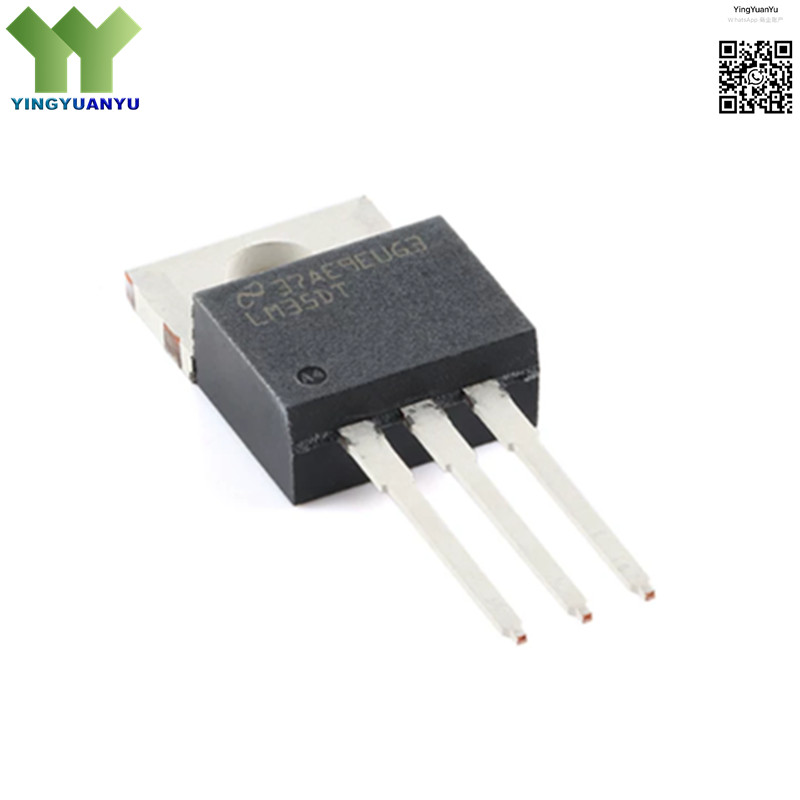

LM35DT/NOPB
LM35DT/NOPB
| Part Number | LM35DT/NOPB |
|---|---|
| Manufacturer | Texas Instruments |
| Category | Temperature Sensors; Analog Output Temperature Sensor |
| Description | Precision Analog Temperature Sensor, 0°C to +100°C Range,4V~30V, TO-220 Package, Through Hole |
Product Overview
The LM35DT/NOPB is a precision, easy-to-use analog output temperature sensor designed for accurate temperature measurement in industrial, commercial, and consumer applications. It provides a linear output voltage directly proportional to Celsius temperature, requiring no external calibration or components. The device features low impedance output, low quiescent current, and excellent linearity, ensuring stable and reliable performance. Housed in a TO-220 through-hole package for excellent thermal coupling, it is ideal for simple, cost-effective temperature sensing designs.
| Key Specifications | |
|---|---|
| Brand | Texas Instruments |
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Package / Case | TO-220 |
| Mounting Type | Through Hole |
| Temperature Range | 0°C to +100°C |
| Output Type | Linear Analog (10 mV/°C) |
| Accuracy | ±0.5°C (Typical at 25°C) |
| Supply Voltage | 4.0V ~ 30V |
| Operating Temperature | -55°C to +150°C |
Typical Applications
- Industrial Temperature Monitoring & Control
- HVAC Systems & Thermal Management
- Battery Temperature Sensing
- Consumer Electronics Thermal Protection
- Test & Measurement Instruments
- Power Supply Temperature Regulation
- Automotive Temperature Sensing
- Simple Embedded Temperature Systems
Order & Shipping Info
Minimum Order Quantity (MOQ): 1 Piece
Shipping Time: Shipped within 1-2 business days
Delivery Time: 3-7 working days worldwide
Shipping Methods: DHL, UPS, FedEx, EMS
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
