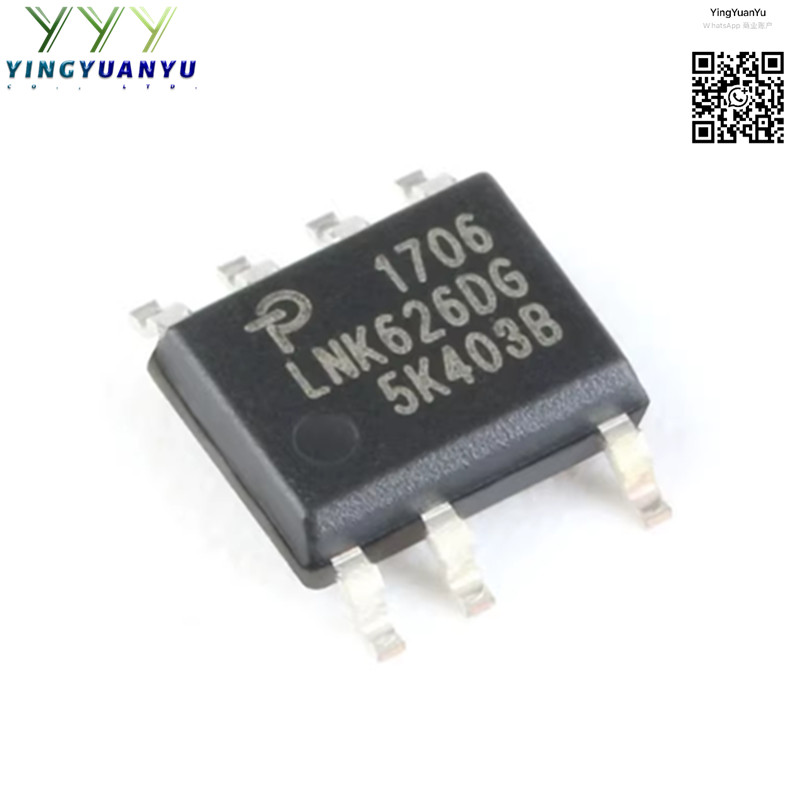

LNK626DG-TL
LNK626DG-TL
| Part Number | LNK626DG-TL |
|---|---|
| Manufacturer | Power Integrations |
| Category | AC-DC Converters; Offline Switcher ICs, Energy-Efficient Power Management |
| Description | Off-Line PWM Switcher IC, 6W Output, Low Component Count, High Efficiency, SOP-7 Package |
Product Overview
The LNK626DG-TL is a highly integrated offline PWM switcher IC designed for compact, low-power AC-DC power supply applications. It combines a high-voltage power MOSFET, oscillator, control circuitry, and protection functions into a single chip, drastically reducing external components and simplifying power supply design. Supporting up to 6W output power, this IC delivers exceptional energy efficiency, low no-load power consumption, and stable constant-voltage output for consumer and industrial auxiliary power systems. Built-in safeguards including over-temperature, over-voltage, over-current, and short-circuit protection ensure long-term reliability. Housed in a standard SOP-7 surface-mount package, it enables miniaturized, cost-effective, and regulatory-compliant power solutions.
| Key Specifications | |
|---|---|
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Brand | Power Integrations |
| Output Power | Up to 6W |
| Topology | Offline PWM Flyback / Buck |
| Package Type | SOP-7 |
| Operating Temperature | -40°C to +150°C |
Typical Applications
- Low-Power AC-DC Adapter & Charger
- Home Appliance Auxiliary Power Supplies
- Industrial Control & Metering Power Units
- IoT & Smart Home Device Power
- LED Driver & Lighting Power Modules
- Set-Top Box & Consumer Electronics Power
- Miniature Offline Power Supplies
- High-Efficiency Auxiliary Power Systems
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
