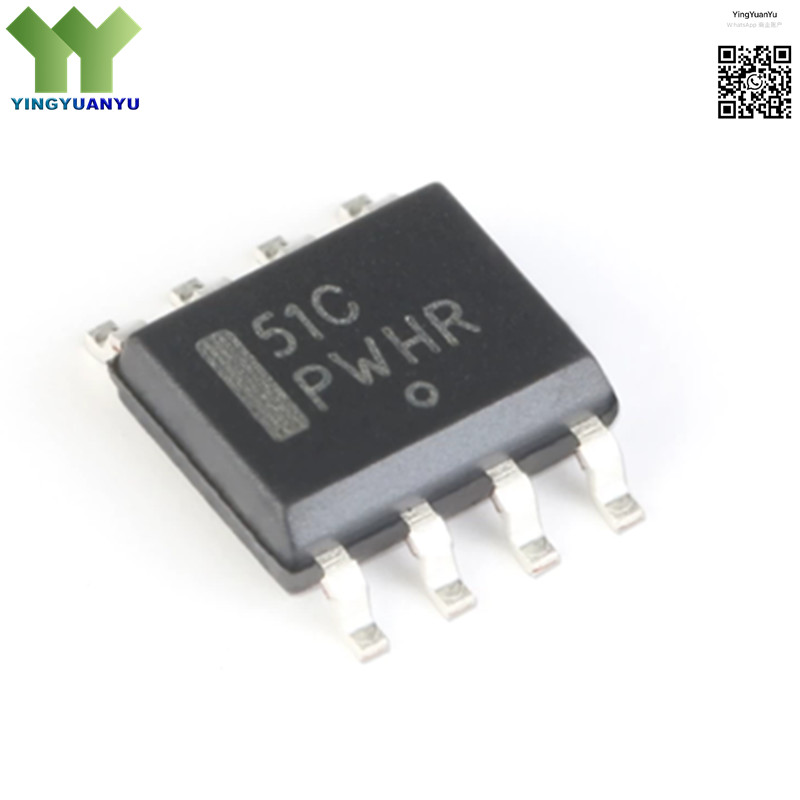

LP2951CDR2G
LP2951CDR2G
| Part Number | LP2951CDR2G |
|---|---|
| Manufacturer | ON Semiconductor |
| Category | Power Management ICs; Low-Dropout (LDO) Voltage Regulators |
| Description | Adjustable Low-Dropout Voltage Regulator, 100mA Output, LDO, SOIC-8 Package |
Product Overview
The LP2951CDR2G is a high-performance, adjustable low-dropout (LDO) linear voltage regulator designed for low-power, battery-operated, and space-constrained applications. It provides a stable output voltage from 1.23V to 30V with a maximum output current of 100mA and ultra-low dropout voltage, ensuring efficient power conversion even at low input voltages. The device features built-in overcurrent protection, thermal shutdown, and reverse-battery protection for enhanced reliability. With low quiescent current and excellent line/load regulation, it is ideal for portable electronics, industrial sensors, and low-power embedded systems. Housed in a compact SOIC-8 surface-mount package, it supports high-density PCB designs.
| Key Specifications | |
|---|---|
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Brand | ON Semiconductor |
| Regulator Type | Adjustable Low-Dropout (LDO) |
| Output Current | 100 mA (Max) |
| Output Voltage | 1.23V ~ 30V Adjustable |
| Package Type | SOIC-8 (Surface Mount) |
| Operating Temperature | -40°C to +125°C |
Typical Applications
- Battery-Powered Portable Electronics
- Low-Power Embedded Systems & MCUs
- Industrial Sensors & Monitoring Modules
- IoT & Wearable Device Power Supplies
- Automotive Aftermarket Electronics
- Consumer Electronics & Small Appliances
- Portable Test & Measurement Equipment
- Low-Voltage Analog & Digital Circuits
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
