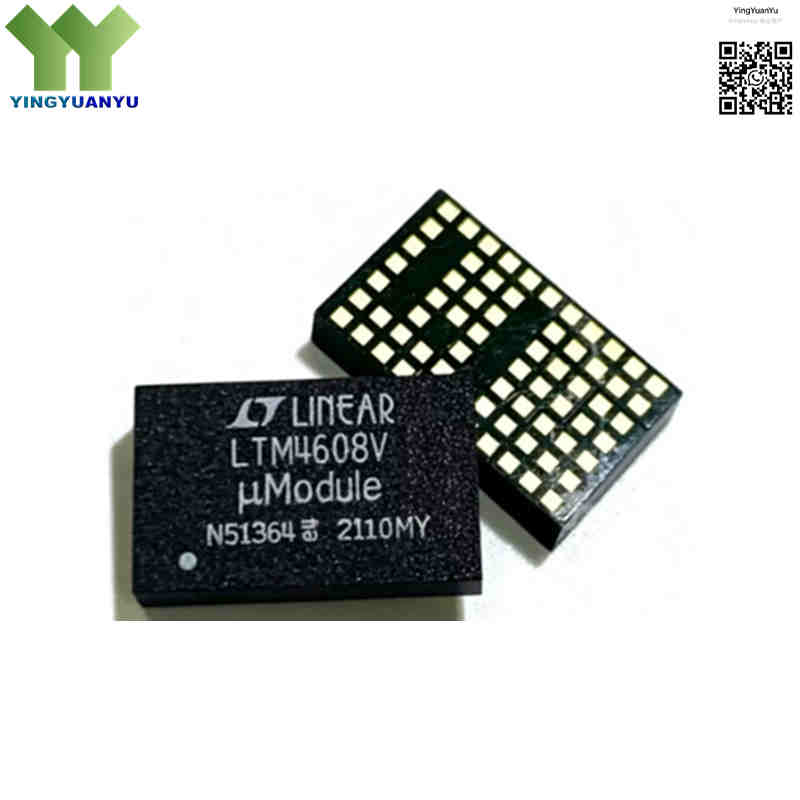

LTM4608IV#PBF
LTM4608IV#PBF
| Part Number | LTM4608IV#PBF |
|---|---|
| Manufacturer | Analog Devices (Linear Technology) |
| Category | Integrated Circuits (ICs) > PMIC – DC DC Regulators – Board Mount (μModule) |
| Description | 8A Low Vin Step-Down μModule Regulator, 2.7V to 5.5V Input, 0.6V to 5V Output, LGA-68 Package, Pb-Free. |
| Stock Status | In Stock |
| Origin | Original Factory |
Product Overview
LTM4608IV#PBF is an 8A high-efficiency step-down DC/DC μModule regulator from ADI. It works with 2.7V–5.5V input and adjustable 0.6V–5V output via one resistor. This all-in-one LGA-68 package integrates controller, MOSFET, inductor and compensation circuits to simplify PCB design. It supports frequency sync, voltage tracking and power sequencing. Industrial grade for -40°C ~ +85°C ambient temp, max junction temp 125°C for stable harsh-environment operation.
Core Advantages
All-In-One Power Solution
Integrates full power loop components inside one package, cuts PCB layout workload and shortens product development cycle.
Mini Low-Profile Package
Compact 9mm×15mm×2.82mm LGA-68 form factor, fits double-sided high-density circuit boards.
Great Heat Dissipation
LGA packaging reduces thermal resistance to PCB; delivers full 8A continuous output without extra heat sinks under normal use.
EMI Reduction & Multi-Rail Control
External clock synchronization lowers system EMI; supports voltage tracking for accurate multi-power supply startup sequencing.
Key Specifications
| Part Number | LTM4608IV#PBF |
|---|---|
| Brand | Analog Devices / Linear Technology (μModule) |
| Device Type | Step-Down DC-DC μModule Regulator |
| RoHS Status | RoHS Compliant (Pb-Free, Lead-Free) |
| EDA/CAD Model | 3D CAD step files, LTspice simulation models available |
| Warranty | 1-Year Standard Quality Warranty |
| Package / Case | LGA-68 (9.00 mm × 15.00 mm × 2.82 mm) |
| Mounting Type | Surface Mount |
| Surface Silkscreen / Marking | LTM4608V Marking |
| Input Voltage (Vin) Range | 2.7V to 5.5V DC |
| Output Voltage (Vout) Range | 0.6V to 5V (Resistor adjustable) |
| Continuous Output Current | 8A DC (10A Peak Current) |
| Switching Frequency | 1.5 MHz nominal, synchronizable 1.3MHz ~ 1.5MHz |
| Output Voltage Accuracy | ±1.5% total DC error (line, load, temperature) |
| Protection Features | Overcurrent, Overvoltage, Thermal Shutdown Protection |
| Operating Ambient Temp | -40°C ~ +85°C (Industrial Grade) |
| Maximum Junction Temperature | +125°C |
| Parallel Current Sharing | Support multi-module parallel operation for higher current |
| Tracking & Sequencing | Output voltage tracking, power rail startup sequencing |
Typical Applications
- Core/I/O power rails in telecom, networking, and wireless base station equipment
- Point-of-load (POL) regulation in advanced FPGA, DSP, ASIC, and microprocessor systems
- High-density PCIe cards, server mainboards, and high-performance computing systems
- Industrial control systems, automation hardware, and test equipment
- Battery-operated medical instrumentation and localized multi-rail distributed power architectures
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Shipped within 1-2 business days |
| Delivery Time | 3-7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
For datasheets, samples, stock inquiry and bulk price, fill out the quick inquiry form, we will reply within 24 hours.
Frequently Asked Questions
Q1: What advantages does μModule regulator have over discrete power circuits?
A1: It integrates all core power components in one package, simplifying PCB layout and ensuring stable performance with few peripheral parts.
Q2: What does suffix “IV” in LTM4608IV#PBF stand for?
A2: I = industrial temperature grade (-40℃~+85℃), V = LGA package with enhanced thermal pad.
Q3: Can multiple LTM4608 modules work in parallel for higher output current?
A3: Yes. It supports current sharing parallel operation, up to 24A total output to lower ripple noise.
Q4: Do I need an extra heat sink under full 8A load?
A4: No heat sink required with complete PCB ground plane; follow thermal derating curves for high temp zero-airflow environments.
Q5: What is the typical switching frequency of LTM4608IV?
A5: Nominal frequency 1.5MHz, adjustable and synchronizable between 1.3MHz~1.5MHz.
Q6: Is this component RoHS compliant?
A6: Yes, lead-free and fully RoHS compliant.
Q7: What is the adjustable output voltage range?
A7: Output voltage can be set from 0.6V to 5V via a single external resistor.
Q8: Can this module realize multi-power rail startup sequencing?
A8: Yes, it supports output voltage tracking for accurate multi-rail power sequencing.
Q9: Are samples available for testing?
A9: We provide free samples, submit inquiry form to apply for samples and datasheets.
