M30260F8AGP#U3A
M30260F8AGP#U3A
| Part Number | M30260F8AGP#U3A |
|---|---|
| Manufacturer | Renesas Electronics |
| Category | Integrated Circuits (ICs) > Embedded – Microcontrollers (M16C/26A Series) |
| Description | 16-Bit Microcontroller, M16C/60 Core, 64KB Flash, 2KB RAM, Sophisticated Timers, 48-Pin LQFP Package. |
| Stock Status | In Stock |
| Origin | Original Factory |
Product Overview
M30260F8AGP#U3A is a low-power, high-reliability 16-bit MCU of Renesas M16C/26A series, built on M16C/60 core. It integrates 64KB Flash, 2KB RAM, multi-function timers, 10-bit ADC, UART/I2C interfaces and watchdog timer. Packaged in compact 48-pin LQFP, it fits automotive, industrial and precision consumer control equipment.
Core Advantages
Ultra-Low Noise & Low EMI
Built-in noise reduction design with low EMI and great ESD resistance, suitable for noisy industrial & automotive environments.
Efficient M16C/60 16-bit Core
Optimized instruction set for fast computing, fast response and low power consumption.
Complete Mixed-Signal Peripherals
Onboard 10-bit ADC and multi-channel timers to realize sensor & actuator control without extra external chips.
Industrial & Automotive Grade Stability
Strict production standards support wide temperature range, stable long-term operation.
Key Specifications
| Brand | Renesas Electronics M16C Family |
|---|---|
| Part Number | M30260F8AGP#U3A |
| RoHS Status | RoHS Compliant / Lead-Free (Pb-Free) Assembly |
| EDA/CAD Model | Pinouts, footprint patterns, and CAD libraries are available upon request |
| Warranty | 1-Year Standard Quality Warranty |
| Package / Case | 48-Pin LQFP (7 mm × 7 mm) |
| Mounting Type | Surface Mount |

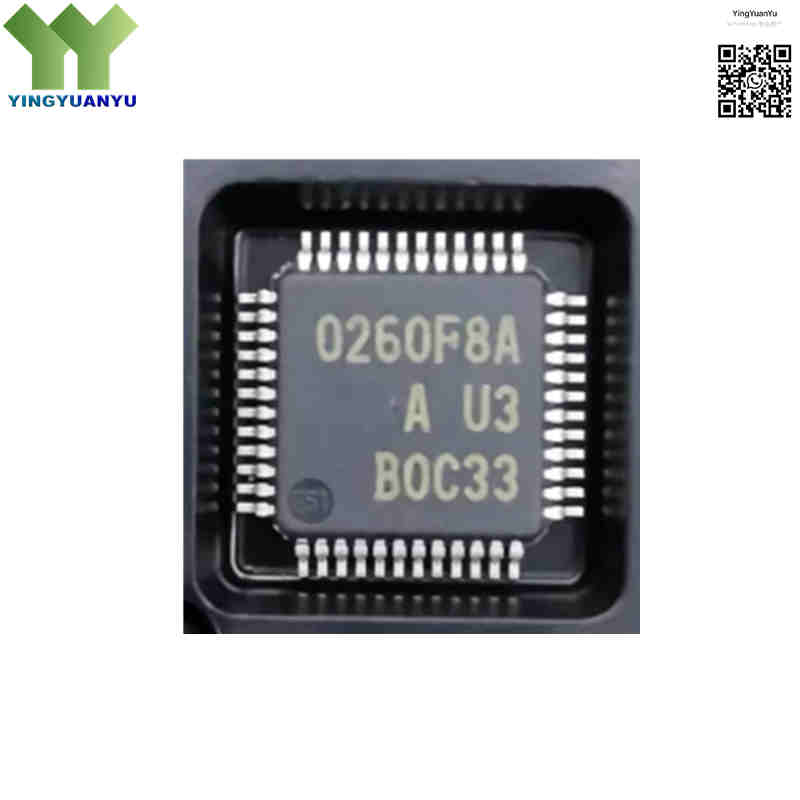

| Surface Marking / Silkscreen | 0260F8A Marking |
| Core Architecture | 16-Bit M16C/60 Core |
| CPU Bit Width | 16 Bit |
| Maximum Clock Frequency | 20 MHz (at 3.0V ≤ VCC ≤ 5.5V) |
| Program Memory (Flash) | 64 KB |
| Data RAM | 2 KB |
| A/D Converter | 10-bit resolution × 12 channels |
| Serial Interfaces | UART / Clock Synchronous Serial × 3 channels, I2C Bus compatible |
| Timers | 16-bit Timer A × 5 channels, 16-bit Timer B × 3 channels |
| Operating Supply Voltage (VCC) | 2.7V to 5.5V DC Single Supply |
| Operating Temperature Range | -40°C to +85°C (Industrial and Extended Grade Support) |
| Category | Integrated Circuits > Microcontrollers (MCU/MPU/SOC) |
| Minimum Order Quantity | 1 Piece |
| Tray Quantity | 250 Units per Tray |
| Application Fields | Office Equipment, Communication Devices, Test & Measurement, Home Appliances, Industrial Robots, Transportation Control Systems, Security Equipment |
Typical Applications
- Automotive body control modules (BCM), power windows, and dashboard subsystems
- Industrial process controllers, sensor telemetry modules, and factory actuator nodes
- Home appliances (washing machines, air conditioners, and inverter control systems)
- Consumer electronics requiring robust ESD protection and dependable 16-bit processing
- Smart energy meters, data loggers, and environmental monitoring equipment
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Shipped within 1-2 business days |
| Delivery Time | 3-7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
Q1: What does #U3A stand for in M30260F8AGP#U3A?
A1: It means lead-free matte-tin plating, compliant with global environmental standards, shipped in standard trays.
Q2: Does this MCU support in-system programming?
A2: Yes, it supports ISP serial programming and off-board parallel flashing for easy firmware upgrade.
Q3: How does the M16C series realize low EMI?
A3: Optimized internal clock circuit and decoupled power lines reduce high-frequency noise, no extra shielding needed.
Q4: Are there low-power sleep modes?
A4: Two power-saving modes: Wait Mode and Stop Mode, perfect for battery-powered portable devices.
Q5: What is the operating temperature range of this chip?
A5: Industrial grade range from -40°C to +85°C, stable for harsh working environments.
Q6: How many ADC channels does M30260F8AGP have?
A6: Built-in 10-bit ADC with 12 channels for multi-channel analog signal collection.
Q7: What communication interfaces are integrated?
A7: Equipped with UART and synchronous serial ports, compatible with I2C communication protocol.
Q8: Can this model be used for automotive equipment?
A8: Yes, low EMI and wide temperature design meet the basic requirements of automotive control systems.
Q9: What’s the package size of M30260F8AGP#U3A?
A9: 48-pin LQFP package with 7mm × 7mm small footprint to save PCB space.
