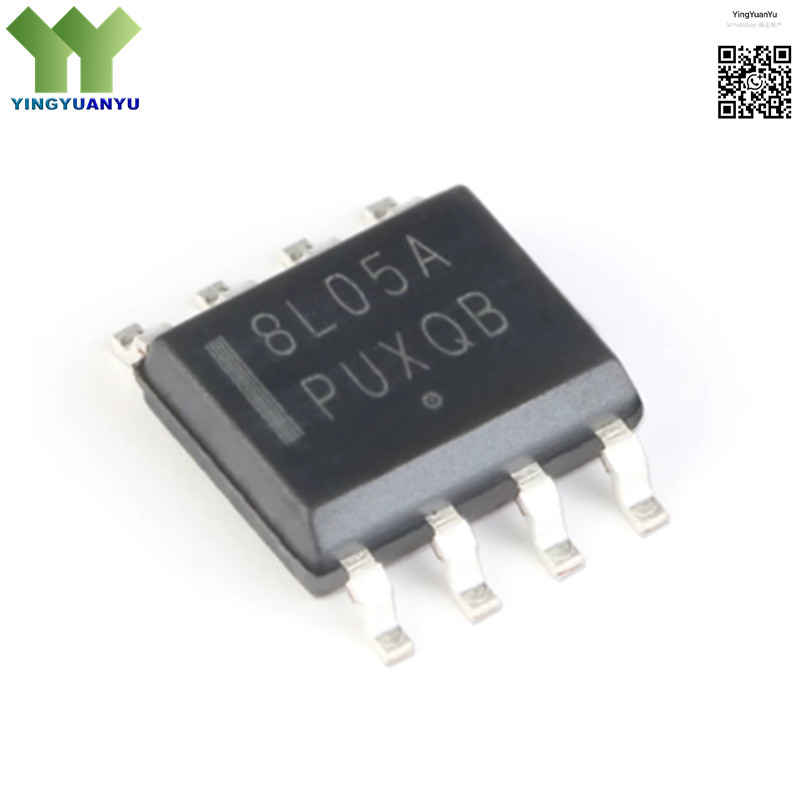

MC78L05ABDR2G
MC78L05ABDR2G
| Part Number | MC78L05ABDR2G |
|---|---|
| Manufacturer | ON Semiconductor |
| Category | Power Management ICs; Fixed Positive Linear Voltage Regulators |
| Description | 5.0V Fixed Output Linear Regulator, 100mA, Low Power, 2.0V Dropout, SOIC-8 Surface Mount Package |
Product Overview
The MC78L05ABDR2G is a compact, low-power fixed positive voltage regulator providing a stable 5.0V output with up to 100mA current capability. Designed using monolithic CMOS technology, it offers excellent line and load regulation, low quiescent current, and internal thermal overload / short-circuit protection for safe operation. The device supports an input voltage range up to 30V and is optimized for low-power embedded systems, consumer electronics, and portable applications. Housed in a small SOIC-8 surface-mount package, it enables high-density PCB design and reliable SMT assembly.
| Key Specifications | |
|---|---|
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Brand | ON Semiconductor |
| Output Voltage | 5.0V Fixed |
| Output Current | 100 mA (Max) |
| Input Voltage | Up to 30V |
| Package Type | SOIC-8 (Surface Mount) |
| Operating Temperature | -40°C to +125°C |
Typical Applications
- 5V Power Supply for MCU & Digital Logic
- Battery-Powered Portable Electronics
- IoT Sensor Nodes & Wireless Modules
- Consumer Electronics & Home Appliances
- Industrial Control & Low-Power Systems
- Automotive Aftermarket Electronics
- Arduino & Embedded Prototyping
- Local Voltage Regulation in PCB Designs
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
