MCDP6000C1
MCDP6000C1
| Part Number | MCDP6000C1 |
|---|---|
| Manufacturer | Kinetic Technologies (MegaChips / indie Semiconductor) |
| Category | Integrated Circuits (ICs) > Interface – Signal Buffers, Repeaters, Splitters / DisplayPort Re-timers |
| Description | High-performance, low-power USB Type-C / DisplayPort 1.4a and USB 3.2 Gen2 multi-protocol linear re-timer IC, engineered with advanced CTLE and DFE equalizer blocks for high-speed signal conditioning. |
| Stock Status | In Stock |
| Origin | Original Factory |
Product Overview
The MCDP6000C1 is a compact low-power multi-protocol linear re-timer from Kinetic Technologies (MegaChips, indie Semiconductor), optimized for USB Type-C DFP/UFP ports to condition DP 1.4a and USB 3.2 Gen2 signals. It supports up to 8.1Gbps per DP HBR3 lane and 10Gbps USB 3.2, offsetting signal loss from PCB traces, connectors and long cables via built-in CTLE, DFE and adjustable TX equalization to recover signal eye diagrams and control jitter. Packaged in thermally enhanced 46-VFQFN-EP, this power-saving IC is an ideal component for premium laptops, Type-C docking hubs, VR/AR headsets and commercial display systems.
Core Advantages
Multi-Protocol High-Bandwidth Support
Natively switches and retimes high-speed USB 3.2 Gen2 (10 Gbps) and DisplayPort 1.4a (8.1 Gbps HBR3) lanes simultaneously, supporting 1/2/4 DP lane configurations with seamless performance across modern multi-function USB Type-C links.
Advanced Signal Conditioning Topology
Incorporates programmable multi-stage CTLE, DFE, and transmit de-emphasis configurations to compensate up to -27dB channel loss, opening tight data eyes across complex multi-board layouts; built-in real-time Eye Opening Monitor (EOM) for signal debugging.
Ultra-Low Jitter Generation
Features ultra-stable internal Phase-Locked Loops (PLLs) with full CDR clock data recovery that locks onto incoming bitstreams and significantly filters out random and deterministic jitter, yielding maximum signal margin at the connector receptacle.
Intelligent Power and Lane Management
Utilizes dynamic protocol-aware power-down states (USB 3.2 U1/U2/U3 states and DisplayPort AUX snooze modes); typical full-load power 520mW, standby power as low as 850μW to drastically cut standby power consumption in battery-constrained portable devices.
Key Specifications
| Brand | Kinetic Technologies / MegaChips Smart Connectivity Series (indie Semiconductor) |
|---|---|
| Part Number | MCDP6000C1 |
| RoHS Status | RoHS3 Compliant / Lead-Free / Halogen-Free and Green Eco-Standards Approved |
| EDA/CAD Model | 3D STEP Models, Schematic Symbols, and PCB footprints available upon request |
| Warranty | 1-Year Standard Quality Warranty |
| Package / Case | 46-VFQFN (6.5mm × 4.5mm) |
| Mounting Type | Surface Mount Technology (SMD/SMT Reflow Assembly) |

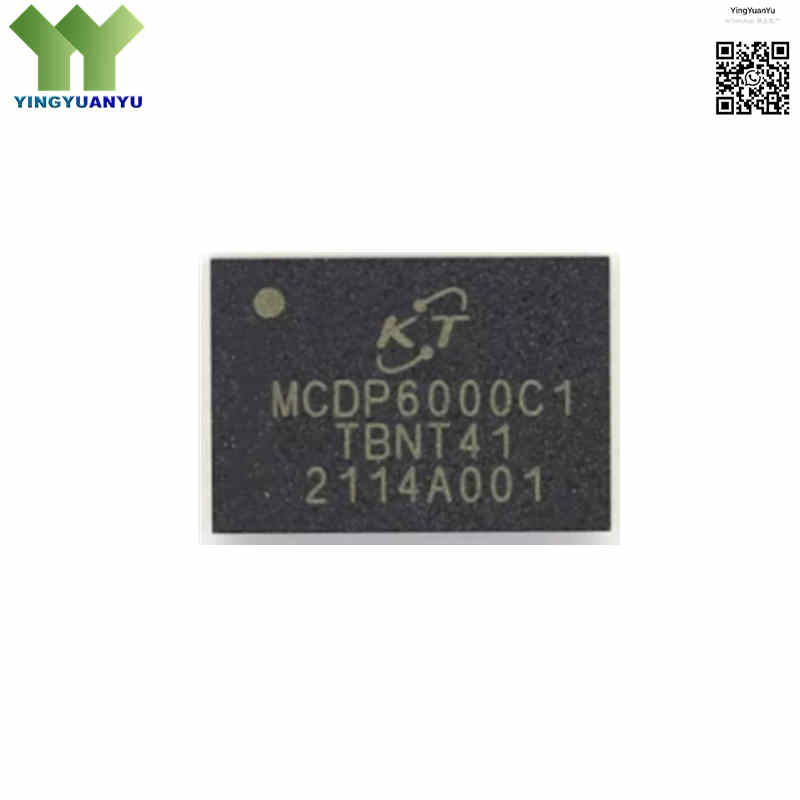

| Surface Marking / Silkscreen | MCDP6000C1 Marking |
| Product Category | USB Switch / Retimer IC, USB to DisplayPort Conversion Chip |
| Supported Signaling Standards | DisplayPort 1.4a (RBR/HBR/HBR2/HBR3 up to 8.1 Gbps) and USB 3.2 Gen1 x1 (5Gbps) / Gen2 x1 (10 Gbps) |
| Max Data Rate | USB 10Gbps, DisplayPort 8.1Gbps per lane |
| Equalization Processing Blocks | Programmable Continuous Time Linear Equalization (CTLE) and Decision Feedback Equalization (DFE), 3-tap TX FIR equalizer |
| Control Bus Programming Options | Standard TWI(I²C)/SMBus slave interface or local pin-strapping hardware configurations |
| USB Type-C Configuration Compatibility | Supports fully flippable plug orientation through integrated automatic Lane MUX routing assignments triggered by CC channel detection |
| Power Consumption Efficiency | 520mW full operation power; ultra-low 850μW standby sleep mode power draw |
| Supply Voltage Requirement | Split dual rail: Core 1.14V ~ 1.26V (Typ 1.2V); Analog I/O 1.65V ~ 1.95V (Typ 1.8V) |
| Operating Temperature Window | Commercial Temperature Range: 0°C to +70°C continuous operating range |
| Jitter Suppression | Built-in CDR clock data recovery to eliminate random & deterministic jitter |
| Channel Loss Compensation | Support up to -27dB PCB & cable channel loss compensation |
| Storage Temperature | -40°C ~ +125°C |
| Moisture Sensitivity Level (MSL) | MSL 3 (168 hours, 30°C/60%RH) |
Typical Applications
- Premium Ultra-Thin Notebooks, Desktop PC Motherboards, and Tablet Expansion USB Interfaces
- Advanced Universal USB Type-C Docking Stations, Multi-Stream Transport (MST) Hubs, and Port Replicators
- High-Resolution 4K/8K Gaming Displays, Professional Video Monitors, and Interactive Smart TVs
- Virtual Reality (VR) and Augmented Reality (AR) Headset Interconnect Cable Extension Extenders
- Industrial Computing Workstations, Embedded Single Board Computers (SBCs), and Media Capture Systems
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Shipped within 1-2 business days |
| Delivery Time | 3-7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
Q1: Is your currently available stock of the MCDP6000C1 100% original and genuine?
A: Yes, we guarantee that all MCDP6000C1 re-timer ICs in our warehouse are 100% brand-new, factory-original components directly from Kinetic Technologies / MegaChips. Every shipment lot undergoes strict quality verification and is packed and dispatched inside original anti-static protective trays to preserve package integrity.
Q2: What is the primary difference between a linear re-timer like the MCDP6000C1 and a standard redriver?
A: A standard redriver only offers analog amplification and high-frequency equalization (CTLE) to boost the signal, which means it also amplifies incoming noise and jitter. In contrast, a linear re-timer like the MCDP6000C1 contains a clock and data recovery (CDR) engine that samples the signal, filters out jitter, resets the timing margins, and generates a clean data eye pattern.
Q3: How does the MCDP6000C1 accommodate flippable USB Type-C plug connections?
A: The MCDP6000C1 incorporates integrated lane multiplexer (MUX) control state logic. It interfaces with an upstream Type-C Configuration Channel (CC) controller to automatically detect plug orientation and route the high-speed differential TX/RX or DisplayPort lanes to the appropriate physical pins instantly.
Q4: How can our physical engineering group secure the full register configuration manuals or request tiered volume quotes?
A: Please complete our Quick Inquiry web form found directly on this product page, noting your target quantities and specific project metrics. Our specialized signal interface technical support desk will review your submission and reply with full data assets and custom commercial pricing tables within 24 hours.
