MCF5207CVM166
MCF5207CVM166
| Part Number | MCF5207CVM166 |
|---|---|
| Manufacturer | NXP Semiconductors (formerly Freescale) |
| Category | Integrated Circuits (ICs) > Embedded – Microprocessors (ColdFire V2 Series) |
| Description | ColdFire V2 Microprocessor, 166 MHz, 16KB SRAM, integrated 10/100 Ethernet MAC, 144-MAPBGA Package. |
| Stock Status | In Stock |
| Origin | Original Factory |
Product Overview
MCF5207CVM166 is NXP’s ColdFire V2 32-bit microprocessor for industrial and network devices. Max 166MHz clock with built-in MAC and divider hardware for fast control & DSP computing. Equipped with 16KB internal SRAM, external memory controller and integrated 10/100M Ethernet. Packaged in 144-pin MAPBGA, ideal for industrial terminals and embedded gateways.
Core Advantages
Efficient ColdFire V2 Architecture
Delivers up to 150 MIPS at 166MHz, low interrupt latency for real-time embedded projects.
On-Chip Fast Ethernet
10/100Mbps MAC with MII/RMII interfaces, simple IoT network deployment.
Flexible Memory Subsystem
16KB high-speed SRAM + advanced controller, compatible with DDR, SDRAM, SRAM and Flash.
Industrial Grade Compact Package
144-pin MAPBGA saves PCB space with good heat dissipation, stable in wide temperature range.
Key Specifications
| Brand | NXP ColdFire V2 Series |
|---|---|
| Part Number | MCF5207CVM166 / MCF5207CVM166J |
| RoHS Status | RoHS Compliant / Lead-Free |
| EDA/CAD Model | Schematic symbol, layout footprints, and IBIS simulation models are available on request |
| Warranty | 1-Year Standard Quality Warranty |
| Package / Case | 144-LBGA, MAPBGA (13mm × 13mm × 1.0mm) |
| Mounting Type | Surface Mount |

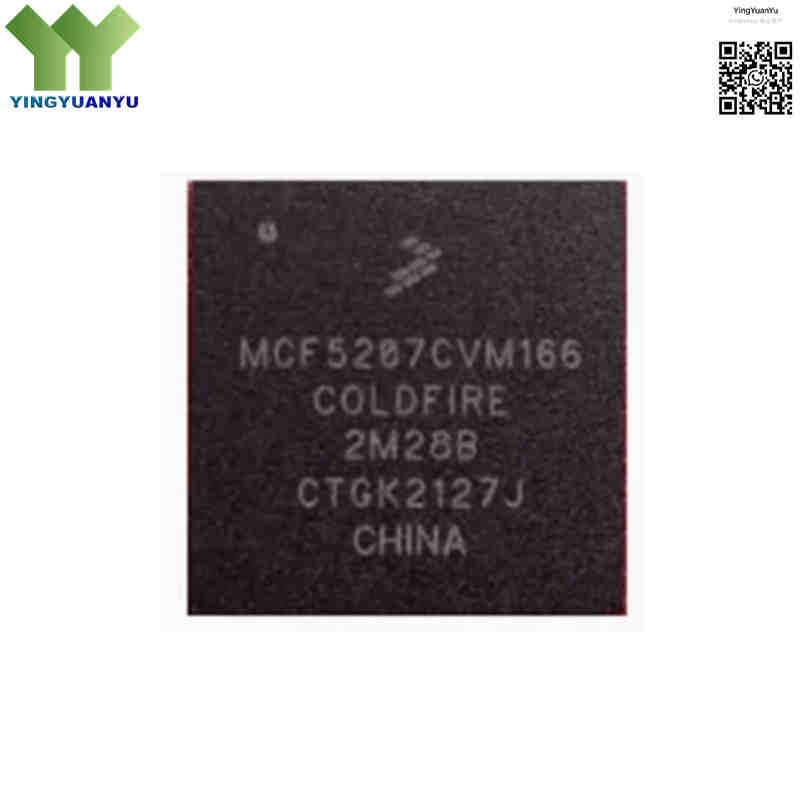

| Surface Marking / Silkscreen | MCF5207CVM166 Marking |
| Core Type | 32-Bit ColdFire V2 Core |
| Maximum Clock Speed | 166 MHz |
| On-Chip SRAM | 16 KB |
| Instruction Cache | 4KB |
| Data Bus Width | 32-bit |
| DMA Channels | 8 Channel DMA Controller |
| GPIO Quantity | Up to 64 GPIO Pins |
| Typical Operating Current | 120mA @ 166MHz |
| Ethernet Peripheral | 1 × Fast Ethernet Controller (10/100 Mbps MAC) |
| External Memory Controller | Supports SDRAM, Mobile DDR, SRAM, and NOR Flash |
| Connectivity Interfaces | 3 × UARTs (SCIs), 1 × I2C, 1 × QSPI (Queued Serial Peripheral Interface) |
| Operating Core Voltage (VDD) | 1.4V to 1.6V (Core) / 3.0V to 3.6V (I/O Buffer supply) |
| Operating Temperature Range | -40°C to +85°C (Industrial-grade qualification) |
Typical Applications
- Industrial automation controllers, programmable logic controllers (PLCs), and HMIs
- Secure embedded networking gateways, protocol converters, and terminal servers
- Building control systems, security hubs, and smart lighting gateways
- Point-of-sale (POS) equipment and ticket vending terminals
- Remote telemetry units, data acquisition modules, and environmental monitors
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Shipped within 1-2 business days |
| Delivery Time | 3-7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
Q1: Difference between ColdFire V2 and ordinary MCUs?
A1: No built-in program Flash. It executes codes via external memory, supporting large OS such as uClinux and RTOS.
Q2: How does this chip realize Ethernet communication?
A2: Integrated 10/100M FEC MAC, matched with external PHY chip through MII/RMII interface for network access.
Q3: Advantages of MAPBGA over LQFP packaging?
A3: Better heat dissipation and grounding, lower parasitic inductance, stable high-speed operation and smaller PCB layout area.
Q4: Does MCF5207CVM166 support hardware floating-point operation?
A4: No independent FPU, but equipped with MAC and hardware divider to accelerate fixed-point DSP computing.
Q5: What memory chips can the external memory controller drive?
A5: Compatible with SDRAM, Mobile DDR, SRAM and NOR Flash memory particles.
Q6: What’s the operating temperature range of this industrial chip?
A6: Industrial wide temperature range from -40°C to +85°C, suitable for harsh industrial environments.
Q7: How many GPIO pins are available for customer development?
A7: Up to 64 configurable GPIO pins for peripheral expansion.
Q8: What serial communication interfaces are integrated on the chip?
A8: 3 sets of UART, 1 I2C bus and 1 QSPI high-speed serial interface.
Q9: What scenarios is MCF5207CVM166 mainly used for?
A9: Industrial automation terminals, network embedded gateways and secure network control nodes.
