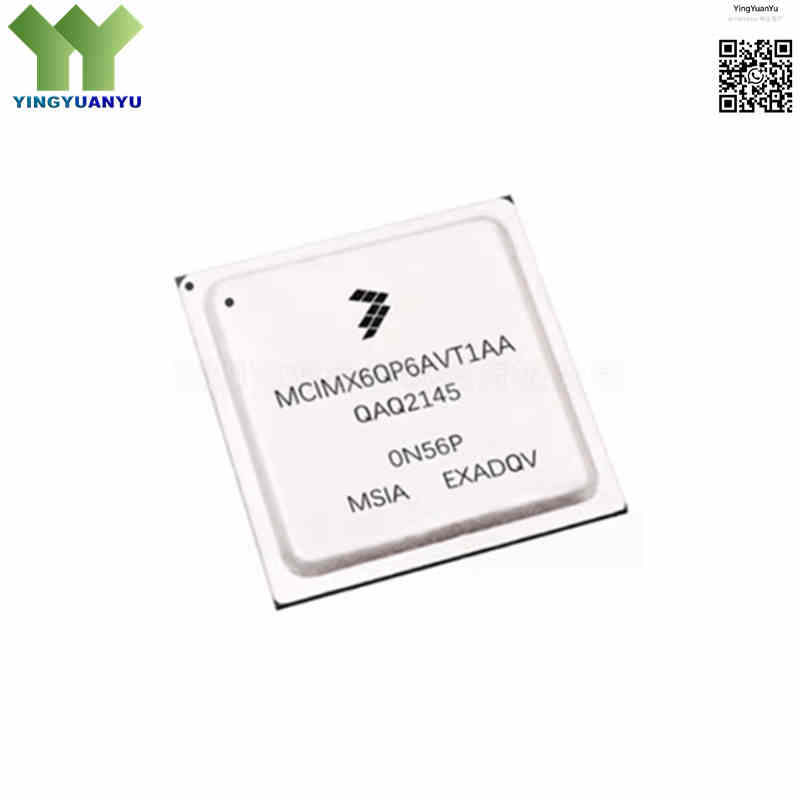

MCIMX6QP6AVT1AA
MCIMX6QP6AVT1AA
| Part Number | MCIMX6QP6AVT1AA |
|---|---|
| Manufacturer | NXP Semiconductors |
| Category | Integrated Circuits (ICs) > Embedded – Microprocessors (MPU) |
| Description | i.MX 6QuadPlus high-performance application processor featuring quad ARM Cortex-A9 cores running up to 1.2 GHz, enhanced 3D/2D graphics accelerators, pre-integrated hardware IP blocks, and full automotive qualification parameters. |
| Stock Status | In Stock |
| Origin | Original Factory |
Product Overview
The MCIMX6QP6AVT1AA is NXP’s high-performance i.MX 6QuadPlus automotive application processor, built on quad ARM Cortex-A9 cores up to 1.2 GHz. Compared with standard i.MX6 series, it doubles memory bandwidth and upgrades independent 3D/2D/vector GPUs plus dedicated 1080p video codec hardware. Supporting multi-display simultaneous output, this AEC-Q100 qualified FCBGA chip delivers stable, deterministic performance for automotive infotainment, ADAS and industrial HMI systems.
Core Advantages
Advanced Quad Plus Processing Power
Utilizes four independent ARM Cortex-A9 cores with enhanced cache structures and optimized internal bus layouts, delivering parallel multi-tasking data routing without system thermal performance bottlenecks.
Upgraded Heavyweight Memory Bandwidth
Features an optimized interleaved memory bus controller layout that substantially boosts memory access speeds, easily driving heavy software loads, real-time operating systems (RTOS), and multi-camera inputs.
Next-Generation Quad-Engine Graphics Matrix
Integrates dedicated hardware engines for Vivante 3D and 2D rendering, freeing up massive CPU capacity while facilitating crisp fluid animations, map rendering, and rich cluster instrumentation.
Automotive-Grade Longevity and Security
Fully qualified to rigorous automotive parameters, including an integrated secure boot engine, hardware cryptographic acceleration, and NXP’s formal product longevity program tracking.
Key Specifications
| Brand | NXP Semiconductors |
|---|---|
| RoHS Status | RoHS Compliant / Lead-Free Standard Packaging |
| EDA/CAD Model | 3D Model & PCB Footprint Available upon request |
| Warranty | 1-Year Standard Factory Warranty |
| Package / Case | FCPBGA-624 (21.00×21.00mm) |
| Mounting Type | Surface Mount Technology (SMD/SMT) |
| Surface Marking / Silkscreen | MCIMX6QP6AVT1AA Marking |
| Core Architecture | ARM® Cortex®-A9 (Quad-Core Configuration) |
| Maximum Clock Speed | 1.2 GHz per Core |
| Graphics Acceleration Blocks | Vivante GC2000 (3D), Vivante GC320 (2D Composition), and Vivante GC355 (OpenVG Vector) Engines |
| Video Co-Processor capacity | 1080p60 H.264 Video Decode / 1080p30 H.264 Video Encode Hardware Layers |
| Memory Interface Support | Dual-Channel 32-Bit DDR3 / DDR3L / LPDDR2 up to 533 MHz ($1066\text{ MT/s}$) |
| Connectivity I/O Ports | Gigabit Ethernet MAC, PCIe Gen 2.0 (1 Lane), Dual CAN Channels, High-Speed USB 2.0 OTG/Host, and MLB150 |
| Display / Camera Ports | Dual MIPI DSI, Dual LVDS Channels, HDMI 1.4, and Dual MIPI CSI Camera Interface Lanes |
| Operating Temperature Range | -40°C to +125°C (Extended Automotive Junction Thermal Envelope Specification) |
| Supply Voltage Core | 1.0V ~ 1.3V Core Operating Voltage |
| Supply Voltage I/O | 1.8V / 2.5V / 3.3V Multi I/O Rail Support |
| Qualification Grade | AEC-Q100 Grade 1 Automotive Qualified |
| External Flash Support | NOR Flash / NAND Flash / SPI Flash / eMMC 4.5 |
| Maximum RAM Capacity | Up to 2GB Total DDR3/DDR3L/LPDDR2 |
| Security Engine | Integrated Secure Boot, AES-128/256, SHA Hardware Crypto Acceleration |
Typical Applications
- Automotive Infotainment Head Units, Dynamic Digital Instrument Clusters, and Head-Up Displays (HUD)
- Advanced Driver Assistance Systems (ADAS) Surround-View Visual Processing Systems
- High-End Industrial Human-Machine Interfaces (HMI), Advanced PLCs, and Factory Automation Controllers
- Medical Imaging Terminals, High-Definition Surgical Displays, and Patient Monitoring Telemetry
- Aerospace Flight Deck Instrumentation Modules and Ruggedized Telecommunication Infrastructure Hubs
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Shipped within 1-2 business days |
| Delivery Time | 3-7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
Q1: Is your currently available stock of the MCIMX6QP6AVT1AA MPU completely original and authentic?
A: Yes, we guarantee that all MCIMX6QP6AVT1AA application processors in our inventory are 100% brand-new, factory-original components from NXP Semiconductors, stored and handled strictly inside moisture-sealed dry-packs and anti-static ESD shielding configurations.
Q2: What primary improvements does the i.MX 6QuadPlus series feature compared to standard i.MX 6Quad processors?
A: The i.MX 6QuadPlus architecture introduces a redesigned internal memory system that doubles standard bus throughput performance, alongside structural rendering upgrades in the integrated 3D/2D graphics engines to easily mitigate interface stutter under heavy graphical computational strains.
Q3: Does the MCIMX6QP6AVT1AA support multi-display vehicle architectures directly?
A: Yes, it features multiple pre-integrated hardware display controllers capable of driving combinations of parallel HDMI outputs, dual-channel LVDS links, and high-speed MIPI DSI panels simultaneously with distinct graphical content layers.
Q4: How can our development team request BSDL boundary scan models, hardware design checklists, or ask for volume wholesale pricing structures?
A: Please complete our Quick Inquiry web form on this page with details about your processing parameters. Our application support desk will process your inquiry and dispatch the available technical documentation package within 24 hours.
