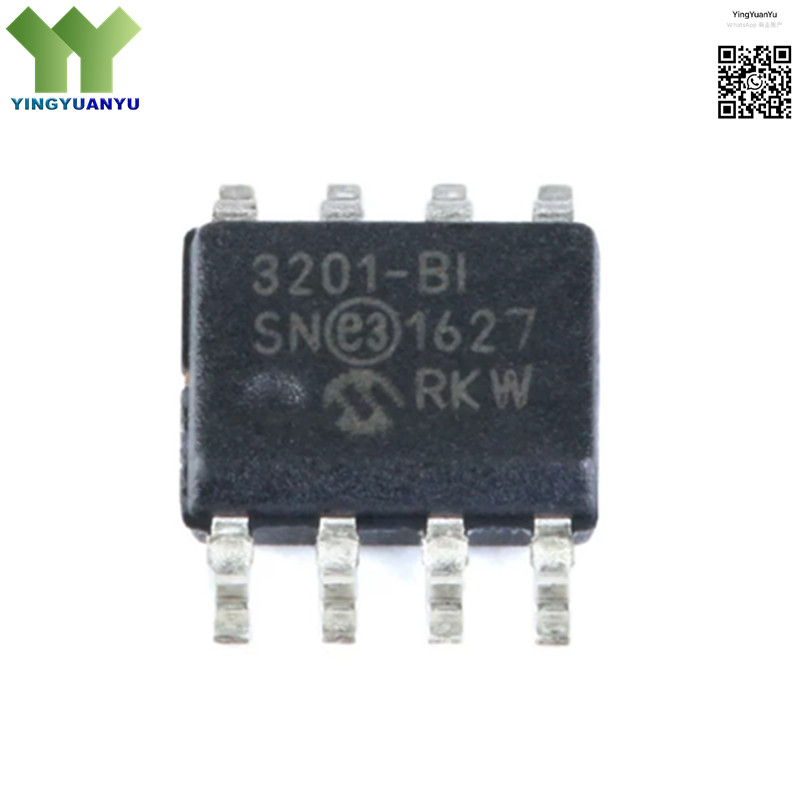

MCP3201-BI/SN
MCP3201-BI/SN
| Part Number | MCP3201-BI/SN |
|---|---|
| Manufacturer | Microchip Technology |
| Category | Analog-to-Digital Converters (ADC); 12-Bit SPI ADC |
| Description | 12-Bit Single-Channel SPI Analog-to-Digital Converter, 100ksps, 2.7V-5.5V, SOIC-8 Package |
Product Overview
The MCP3201-BI/SN is a high-precision 12-bit single-channel analog-to-digital converter featuring a simple SPI serial interface. It offers up to 100 ksps sampling rate, wide operating voltage (2.7V–5.5V), low power consumption, and excellent linearity with ±1 LSB integral nonlinearity. The device includes a sample-and-hold circuit and supports differential input operation, making it ideal for accurate sensor measurement, data acquisition, and industrial control applications. Housed in a compact SOIC-8 surface-mount package, it ensures reliable performance in harsh environments and easy integration into space-constrained designs.
| Key Specifications | |
|---|---|
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Brand | Microchip Technology |
| Resolution | 12 Bits |
| Sampling Rate | 100 ksps (Max) |
| Interface | SPI Serial Interface |
| Supply Voltage | 2.7V ~ 5.5V |
| Package Type | SOIC-8 (Surface Mount) |
| Operating Temperature | -40°C to +85°C |
Typical Applications
- Precision Sensor Data Acquisition
- Industrial Process Control & Monitoring
- Portable Measurement Instruments
- IoT Sensor Nodes & Battery-Powered Devices
- Medical & Consumer Electronics
- Automotive Low-Level Signal Detection
- Embedded System Analog Input
- Temperature/Pressure/Flow Measurement
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
