MN864729
MN864729
| Part Number | MN864729 |
|---|---|
| Manufacturer | Panasonic |
| Category | Integrated Circuits (ICs) – Interface ICs – HDMI Transmitter |

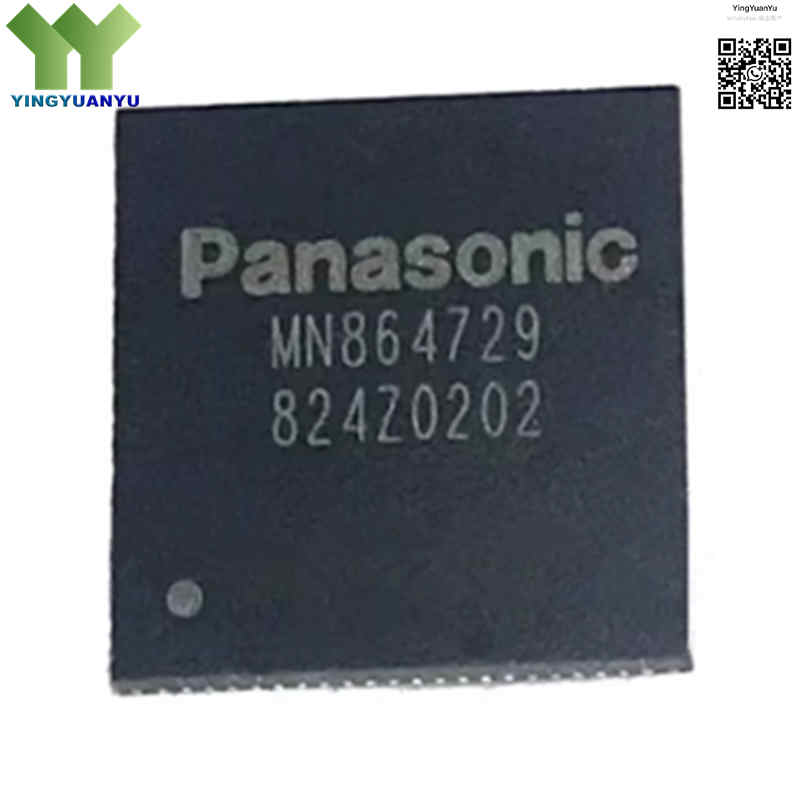

| Description | HDMI Transmitter LSI IC, QFN Package, Specialized for PlayStation 4 Game Console Motherboard |
Product Overview
The MN864729 is a dedicated HDMI transmitter integrated circuit manufactured by Panasonic, specifically designed for PlayStation 4 series game consoles. This high-performance interface chip converts internal video and audio signals into standard HDMI 1.4 protocol signals, supporting full HD 1080P resolution, built-in HDCP content encryption and stable signal transmission. With compact QFN surface mount packaging, it delivers low signal jitter, low power consumption and reliable long-term operation, serving as a core replacement component for PS4 motherboard HDMI output failure maintenance.
Core Advantages
Stable Full HD HDMI 1.4 Signal Output
Fully compliant with HDMI 1.4 specification, stably supports 1080P@60Hz full high-definition video output, with built-in signal equalization circuit to eliminate transmission jitter and screen flicker.
Original Pin-Compatible Replacement for PS4
Standard QFN footprint consistent with the original onboard chip of PlayStation 4 console, pin-to-pin matching, no circuit modification required during maintenance, directly replace faulty original IC.
Integrated HDCP Encryption Engine
Built-in complete HDCP content protection module, perfectly compatible with mainstream display devices, avoiding content playback black screen and signal lock issues.
Low Power & Wide Temperature Adaptability
Adopts low-power semiconductor design to reduce operating heat generation, supports industrial-grade wide temperature range, maintains stable performance under continuous high-load operation of game consoles.
Key Specifications
| Parameter | Specification Details |
|---|---|
| Brand | Panasonic |
| RoHS Status | RoHS Compliant / Lead Free |
| EDA / CAD Models | PCB Footprint and Symbol Available |
| Warranty | 1-Year Manufacturer Warranty |
| Package / Case | QFN Surface Mount Package |
| Mounting Type | Surface Mount (SMD/SMT) |
| Surface Marking / Silkscreen | MN864729 Marking |
| HDMI Standard | HDMI 1.4 |
| Max Supported Resolution | 1080P @ 60Hz Full HD |
| Content Protection | Built-in HDCP Encryption Circuit |
| Supply Voltage | 1.8V Core / 3.3V I/O |
| Operating Temperature | -40°C to +85°C Industrial Grade |
Typical Applications
- PlayStation 4 Console Repair: Replacement part for PS4 CUH-10xx / CUH-11xx / CUH-12xx series motherboard HDMI output fault maintenance.
- Consumer AV Equipment: Full HD set-top boxes, media players and low-power audio-visual playback devices.
- Digital Video Conversion Modules: Industrial small-size HD video signal transmission and conversion circuit boards.
- Embedded Multimedia Systems: Low-power embedded control equipment with HDMI display output function.
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
| Shipping Time | Shipped within 1-2 business days |
| Delivery Time | 3-7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
Q1: What are the typical failure phenomena of damaged MN864729?
A1: Common faults include no HDMI signal output, screen black screen after startup, image color distortion, or loss of audio transmission while the console operates normally.
Q2: Is MN864729 compatible with PlayStation 5 consoles?
A2: No, this IC only supports PS4 series. PS5 models need to use MN864739 HDMI transmitter chip with HDMI 2.1 protocol.
Q3: Does replacing this chip require professional soldering equipment?
A3: Yes, it adopts dense-pin QFN packaging. Replacement requires a professional hot air rework station and precise SMD soldering technology.
Q4: Are the supplied MN864729 original genuine Panasonic chips?
A4: All our stock are brand new original Panasonic ICs, strictly inspected before delivery to guarantee consistent performance with factory original components.
