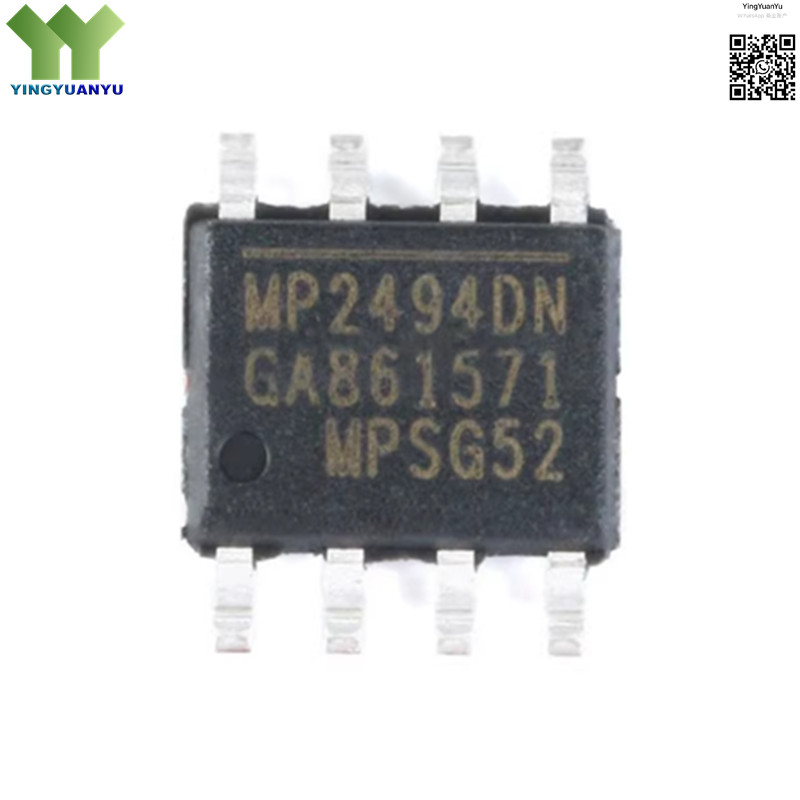

MP2494DN-LF-Z
MP2494DN-LF-Z
| Part Number | MP2494DN-LF-Z |
|---|---|
| Manufacturer | Monolithic Power Systems (MPS) |
| Category | DC-DC Switching Regulators; Step-Down Buck Converters |
| Description | 36V Input 3A Synchronous Step-Down Buck Converter, Wide Input, High Efficiency, SOIC-8 Package |
Product Overview
The MP2494DN-LF-Z is a high-efficiency synchronous rectified step-down buck converter capable of delivering up to 3A continuous output current from a wide 4.5V to 36V input voltage range. It integrates internal power MOSFETs to achieve high efficiency and minimize external components, supporting adjustable output voltage for versatile power design. The device features current-mode control for fast transient response, pulse-skipping mode for light-load efficiency, and a full set of protections including over-current, over-temperature, over-voltage, and under-voltage lockout. With stable performance and wide compatibility, it is widely used in industrial, automotive, and battery-powered systems. Housed in a compact SOIC-8 surface-mount package, it enables high-density and reliable power supply designs.
| Key Specifications | |
|---|---|
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Brand | MPS (Monolithic Power Systems) |
| Input Voltage Range | 4.5V ~ 36V |
| Output Current | 3A Continuous |
| Topology | Synchronous Step-Down Buck |
| Package Type | SOIC-8 |
| Operating Temperature | -40°C to +125°C |
Typical Applications
- Industrial Automation & Control Systems
- Automotive Electronics & Infotainment
- 12V / 24V Battery-Powered Devices
- Embedded System Power Supplies
- IoT Gateways & Sensor Modules
- LED Lighting & Driver Systems
- High-Voltage DC-DC Converters
- Consumer Electronics & Home Appliances
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
