MPC5200CVR400B
MPC5200CVR400B
| Part Number | MPC5200CVR400B |
|---|---|
| Manufacturer | NXP Semiconductors / Freescale |
| Category | Integrated Circuits (ICs) > Embedded – Microprocessors |
| Description | 32‑Bit Power Architecture Microprocessor, e300 Core, 400 MHz, 272‑PBGA Package, Industrial‑Automotive Grade, NRND status. |
| Stock Status | In Stock |
| Origin | Original Factory |
Product Overview
The MPC5200CVR400B is high‑integrated 32‑bit embedded microprocessor based on NXP(Freescale) Power Architecture e300 core, running at 400MHz. It integrates double‑precision FPU, 16KB I‑Cache /16KB D‑Cache, BestComm DMA controller, dual CAN 2.0B, 10/100M Ethernet, dual USB1.1 Host, PCI 2.2, DDR/SDR memory controller. This device is NRND (Not Recommended for New Designs), suitable for legacy equipment maintenance, housed in 272‑PBGA(27mm×27mm),‑40℃~+85℃ industrial‑automotive temperature grade.
Core Advantages
High‑Efficiency e300 Power Architecture Core
32‑bit e300 core @400MHz, integrated hardware double‑precision FPU, supports complex algorithm and real‑time RTOS operation.
BestComm Programmable DMA Engine
Dedicated SmartDMA offloads data transmission, reduces CPU load, optimizes bandwidth for stable real‑time response.
Rich Automotive & Industrial Peripherals
Dual‑CAN 2.0B, 10/100Mbps Ethernet, dual USB1.1 Host, PCI2.2, multi‑channel serial interfaces, ATA storage interface, reduce external chip count.
Wide Industrial‑Automotive Temperature Grade
-40℃ ~ +85℃ working range, stable performance for harsh industrial and vehicle embedded systems.
Key Specifications
| Brand | NXP / Freescale |
|---|---|
| RoHS Status | RoHS Compliant / Lead‑Free |
| EDA / CAD | PCB Footprint & 3D Model Available upon Request |
| Warranty | 1‑Year Standard Quality Warranty |
| Package / Case | 272‑PBGA (27mm × 27mm,ball pitch 1.27mm) |
| Mounting Type | Surface Mount Device (SMD/SMT) |

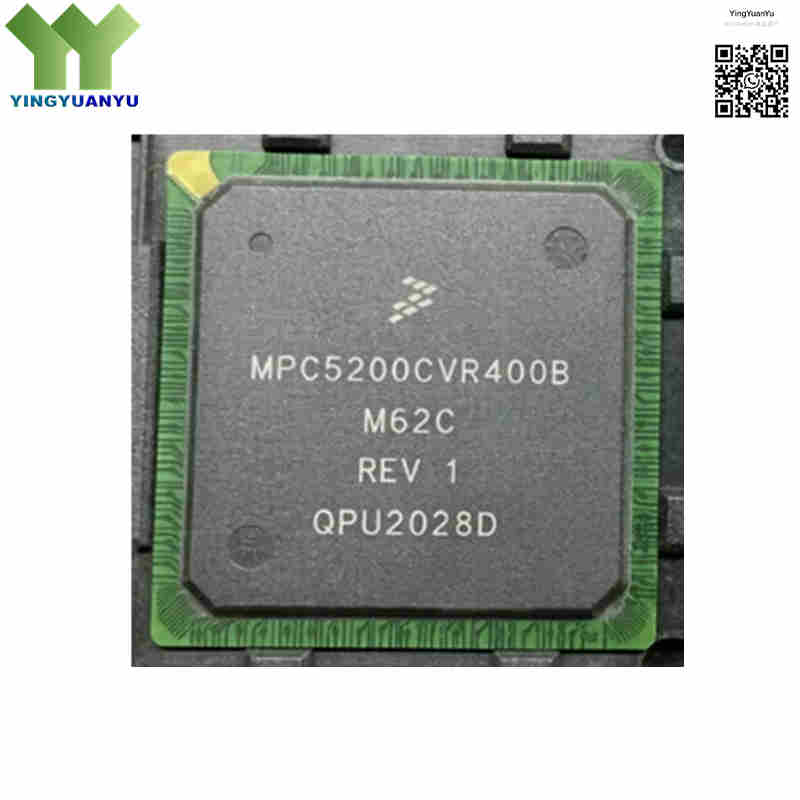

| Surface Marking / Silkscreen | MPC5200CVR400B Marking |
| Core Architecture | Power Architecture e300 (32‑Bit RISC Single‑Core) |
| Clock Frequency | 400 MHz |
| Floating Point Unit (FPU) | Integrated Hardware Double‑Precision FPU |
| Cache Memory | 16 KB I‑Cache / 16 KB D‑Cache |
| Memory Controller | DDR / SDR SDRAM Controller (Max 133MHz) |
| Connectivity / Interfaces | Fast Ethernet (FEC), Dual CAN 2.0B, PCI v2.2, Dual USB 1.1 Host, ATA, SPI, I2C, PSC (UART/AC97/I2S/J1850) |
| Supply Voltage | Core:1.42V‑1.58V(Nominal 1.5V); I/O:2.5V / 3.3V |
| Operating Temperature | -40°C to +85°C (TA, Industrial‑Automotive Grade) |
| Moisture Sensitivity Level | MSL3 (168‑Hour Floor Life) |
| GPIO Quantity | 56 GPIO Pins |
| Product Status | NRND (Not Recommended for New Designs) |
Typical Applications
- In‑Vehicle Infotainment (IVI), Telematics, and Automotive Fleet Management Units
- Industrial Automation Controllers, Programmable Logic Controllers (PLCs), and Robotics
- Commercial Avionics, Marine Navigation Systems
- Networked Edge Gateways, Routers, and Industrial Communication Hubs
- Medical Diagnostic Systems and High‑Reliability Legacy Embedded Computing
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Shipped within 1‑2 business days |
| Delivery Time | 3‑7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
Q1: Is MPC5200CVR400B fully discontinued?
A1: Status is NRND (Not Recommended for New Designs). Not completely EOL. Suitable for existing‑project BOM and legacy device repair; not recommended for brand‑new hardware development.
Q2: What do suffixes mean for MPC5200 series?
A2:
- CVR: Industrial‑automotive grade,‑40℃~+85℃, lead‑free 272‑PBGA
- VR: Commercial grade, 0℃~+70℃, lead‑free 272‑PBGA
- B: Silicon mask revision
- SPC5200CVR400B: Automotive‑grade, pin‑to‑pin compatible replacement
Q3: Can SPC5200CVR400B directly replace MPC5200CVR400B?
A3: Yes, pin‑compatible drop‑in substitute. The SPC version is automotive‑grade with higher reliability, works for industrial and legacy vehicle system maintenance.
Q4: How many USB interfaces does MPC5200CVR400B have?
A4: 2 × USB1.1 Host integrated inside the chip with OHCI controller.
Q5: What are the power‑supply requirements?
A5: Core: 1.42V‑1.58V(nominal 1.5V); I/O: 2.5V / 3.3V. Must follow datasheet power‑on sequence for stable boot‑up.
Q6: What is the size of 272‑PBGA package?
A6: Body dimension 27mm × 27mm, ball pitch 1.27mm, SMD mounting, MSL‑3 moisture sensitivity level.
Q7: Any other pin‑to‑pin alternatives?
A7: No second‑source pin‑compatible NXP parts. For new designs select NXP i.MX series; for maintenance use SPC5200CVR400B as preferred replacement.
Q8: What core architecture does this chip adopt?
A8: 32‑bit Power Architecture e300 single‑core, equipped with 16KB I‑Cache /16KB D‑Cache and hardware double‑precision FPU.
Q9: Where can I get datasheet and BGA footprint?
A9: Submit inquiry form for datasheet, CAD footprint, stock status and bulk quotation.
