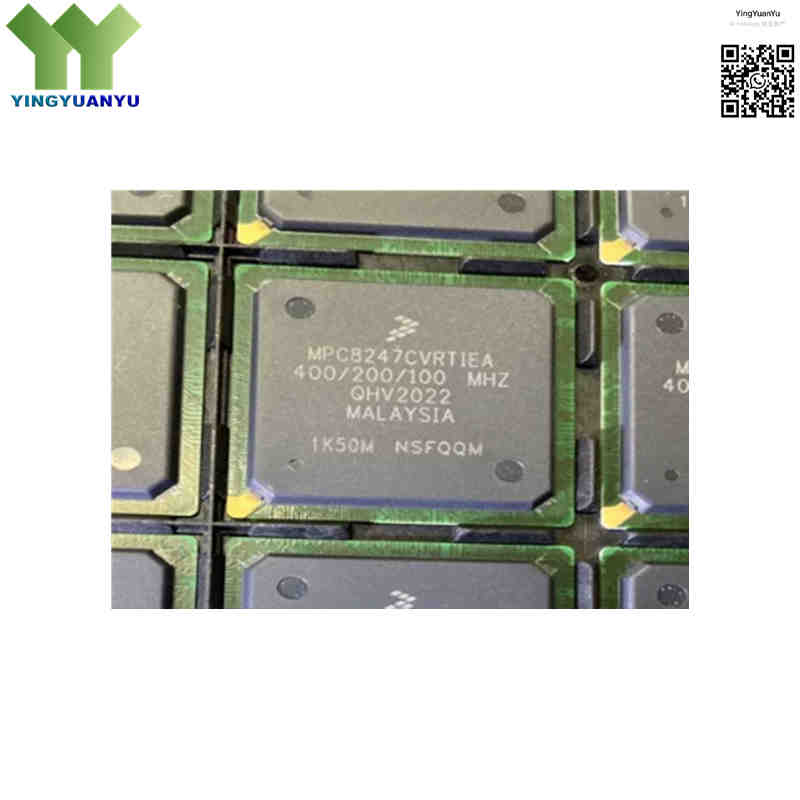

MPC8247CVRTIEA
MPC8247CVRTIEA
| Part Number | MPC8247CVRTIEA |
|---|---|
| Manufacturer | NXP Semiconductors |
| Category | Integrated Circuits (ICs) > Embedded – Microprocessors |
| Description | PowerQUICC II 32-bit embedded communications processor with G2_LE core up to 400 MHz, integrated CPM co-processor, dual 10/100 Fast Ethernet, ATM support, built-in hardware security accelerator, 60x system bus, packaged in 516 TEPBGA. |
| Stock Status | In Stock |
| Origin | Original Factory New & Genuine |
Product Overview
The MPC8247CVRTIEA is NXP’s industrial 32-bit PowerQUICC II communications MPU based on the 400 MHz G2_LE Power Architecture core, equipped with MMU, 16KB instruction cache and 16KB data cache. Its dedicated independent RISC CPM co-processor offloads all serial and network protocol processing to free main CPU resources. Integrated dual 10/100 Fast Ethernet, multi-channel ATM/TDM controllers, 60x system bus and hardware crypto accelerator deliver wire-speed DES/3DES/AES encryption. Manufactured on low-power process and housed in 516-pin TEPBGA, this wide-temperature MPU targets telecom line cards, enterprise security gateways and industrial automation controllers.
Core Advantages
Dual Independent Processing Subsystem
Adopts separated main G2_LE CPU + RISC-based CPM communication co-processor architecture, realizing deterministic processing of low-layer network and serial data tasks without consuming main core computing resources.
On-Chip Hardware Crypto Acceleration
Comes with dedicated hardware security engine to implement real-time encryption, decryption and hash authentication including IPSec suite, ensuring secure data transmission without sacrificing network throughput.
Multi-Protocol Universal Serial Subsystem
Simultaneously supports mainstream and legacy telecom protocols including Fast Ethernet, ATM, HDLC and TDM, suitable for mixed network conversion and gateway equipment design.
Wide Temperature Industrial Grade Reliability
Fully verified for continuous long-term operation under wide industrial temperature range, maintaining stable performance in harsh unregulated industrial deployment environments.
Key Specifications
| Brand | NXP Semiconductors PowerQUICC II Series (Former Freescale) |
|---|---|
| RoHS Status | RoHS Compliant, Lead-Free Package |
| EDA/CAD Model | Schematic symbols, PCB footprints and 3D STEP files available on request |
| Warranty | 1-Year Original Quality Warranty |
| Package / Case | TEPBGA-516 / FPBGA-516(27mm×27mm×1.0mm) |
| Mounting Type | SMT Surface Mount |
| Device Marking | MPC8247CVRTIEA Marking |
| CPU Core | 32-bit Power Architecture G2_LE (603e) Single Core |
| Core Frequency | Max 400 MHz |
| CPM Co-Processor Frequency | Up to 200 MHz |
| Cache Memory | 16 KB Instruction Cache + 16 KB Data Cache |
| System Bus | 60x Local System Bus, Max Bus Speed 100 MHz |
| Memory Interface | Integrated SDRAM / Flash controller via 60x system bus |
| Ethernet Interface | Dual 10/100 Mbps Fast Ethernet (FCC), MII / RMII interface supported |
| Additional Peripherals | 1 × USB 2.0, SPI, I2C, UART, SCC, SMC Serial Channels, ATM/TDM Controller |
| Crypto Algorithms Supported | DES, 3DES, AES, ARC4, MD5, SHA-1 hardware acceleration |
| I/O Operating Voltage | 3.3 V |
| Core Supply Voltage | 1.425 V ~ 1.575 V |
| Manufacturing Process | 0.13 μm Semiconductor Process |
| Operating Temperature | -40°C ~ +105°C (Industrial Extended Temperature Grade) |
Typical Applications
- Telecom infrastructure equipment, MSAN multi-service access nodes, T1/E1/T3 line interface cards
- Enterprise VPN routers, network firewalls and branch office security gateways
- Industrial network switches, protocol converters and real-time SCADA data concentrators
- Smart grid automation gateways and railway communication monitoring devices
- Industrial embedded telematics, airborne communication control units and high-reliability storage controllers
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Ship within 1–2 working days after payment confirmation |
| Global Delivery Cycle | 3–7 working days door-to-door |
| Available Shipping Carriers | DHL, UPS, FedEx, EMS |
| Accepted Payment Terms | T/T Wire Transfer, PayPal, Credit Card, Western Union |
Technical Support
Submit an inquiry form to request datasheets, engineering samples, stock availability or volume quotation. Our sales engineer will reply within 24 hours.
Frequently Asked Questions
Q1: Are MPC8247CVRTIEA chips genuine new original parts?
A: All MPC8247CVRTIEA in stock are brand new original NXP factory parts. Every batch passes strict incoming QC inspection and delivered in original factory ESD trays to avoid package damage or ball deformation.
Q2: What function does the CPM communication processor module perform on PowerQUICC II?
A: CPM is an independent dedicated RISC co-processor parallel to main CPU. It processes receiving, framing and filtering real-time network traffic including Fast Ethernet, ATM and serial protocols. Offloading all frequent network interrupts to CPM frees G2_LE main core for upper-layer application software execution.
Q3: What does “VR” stand for in part number MPC8247CVRTIEA?
A: In NXP PowerQUICC part naming rules, “VR” represents lead-free TEPBGA package, fully compliant with global RoHS and REACH environmental regulations.
Q4: How to obtain engineering drawings and bulk price tiers?
A: Fill out the online inquiry form with your target order quantity and engineering demands. Our technical support team will send complete engineering documents and tiered bulk prices within 24 hours.
