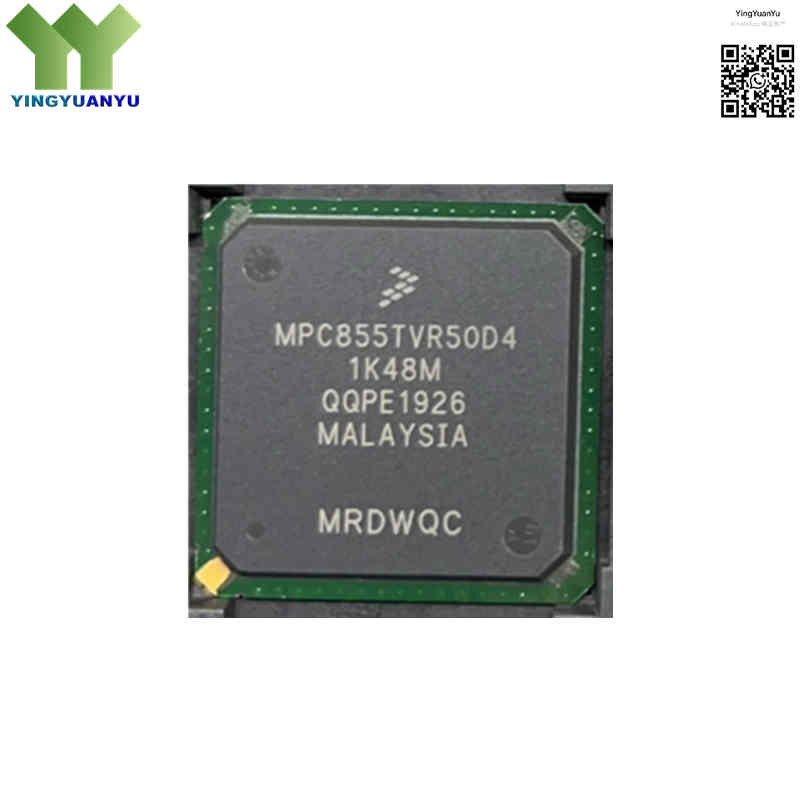

MPC855TVR50D4
MPC855TVR50D4
| Part Number | MPC855TVR50D4 |
|---|---|
| Manufacturer | NXP Semiconductors / Freescale |
| Category | Integrated Circuits (ICs) > Embedded – Microprocessors |
| Description | PowerQUICC 32-bit embedded communications processor featuring a 50 MHz core, integrated Communications Processor Module (CPM), Fast Ethernet capability, and PCMCIA controller interface in a 357-PBGA package. |
| Stock Status | In Stock |
| Origin | Original Factory |
Product Overview
The MPC855TVR50D4 is a 32-bit PowerQUICC communications processor from NXP’s MPC8xx family, operating at 50 MHz. Its independent CPM co-processor handles low-level network protocol tasks to reduce main core load, equipped with integrated 10/100Mbps Fast Ethernet MAC, SCC/SMC serial ports and PCMCIA interface. Packaged in lead-free PBGA-357 (25mm×25mm), it delivers low-latency data transmission for network gateways, industrial controllers and legacy telecommunication equipment.
Core Advantages
Dual-Processor Network Architecture
Utilizes an autonomous RISC-based Communications Processor Module (CPM) that processes data link protocol operations and low-level interrupts independently of the central core, optimizing data throughput and minimizing application lag.
Integrated 10/100 Fast Ethernet MAC
Natively incorporates a dedicated Ethernet controller link on-chip, simplifying board-level routing layouts and minimizing the necessity for complex external localized LAN acceleration silicon chips.
Flexible Multi-Protocol Interface Ports
Equipped with highly flexible Serial Communications Controllers (SCCs) capable of parsing various telecommunication serial data lines—including HDLC, UART, Transparent, and Asynchronous Time-Division Multiplexed (TDM) channels.
Comprehensive On-Chip System Protection
Features embedded system logic utilities including watchdog timers, periodic interrupt timers, and a robust external bus clock manager to guarantee stable, deterministic execution inside hazardous or unmonitored factory spaces.
Key Specifications
| Brand | NXP Semiconductors / Freescale PowerQUICC I Series |
|---|---|
| RoHS Status | RoHS Compliant / Lead-Free Standard Solder Spheres Configuration |
| EDA/CAD Model | 3D STEP Models, Schematic Symbols, and BGA Grid Footprints available upon request |
| Warranty | 1-Year Standard Quality Warranty |
| Package / Case | PBGA-357 (25mm × 25mm × 1.27mm) |
| Mounting Type | Surface Mount Technology (SMD/SMT Reflow Assembly) |
| Surface Marking / Silkscreen | MPC855TVR50D4 Marking |
| Core Architecture | 32-bit PowerPC / MPC8xx Core Technology Base |
| Nominal Clock Frequency Rate | 50 MHz System Clock Speed Execution Line |
| On-Chip Memory Caches | Integrated Instruction Cache and Data Cache Arrays |
| Communications Processor (CPM) | Independent Integrated Embedded RISC Co-Processor Execution Engine |
| Ethernet Controller Blocks | 1 x 10/100 Mbps Fast Ethernet Port (Supports MII/RMII connectivity) |
| Peripheral Bus Matrix Channels | Serial Communications Controllers (SCC), Serial Management Controllers (SMC), SPI, I2C, and PCMCIA/PC Card Controller Module |
| Core Supply Voltage | 2.7V ~ 3.3V Core Operating Voltage |
| I/O Interface Voltage | 3.3V Standard I/O Signal Level |
| External Bus Width | 32-bit Multiplexed Address/Data System Bus |
| Watchdog Timer | Built-in Programmable System Watchdog Timer for Fault Recovery |
| Maximum External Memory Support | Supports SDRAM, SRAM, Flash up to 1GB Total Address Space |
| Operating Temperature Range | 0°C to +95°C (Standard Commercial and Extended System Thermal Management Rating) |
Typical Applications
- Enterprise-Grade Edge Routers, WAN Gateways, Remote Access Hubs, and SOHO Access Modems
- Industrial Control Fieldbus Converters, Intelligent SCADA Remote Terminal Units (RTUs), and Programmable Logic Controllers (PLCs)
- Telecommunication Carrier Switching Infrastructure, High-Density Line Hub Cards, and Multiplexer Assemblies
- Railway Infrastructure Management Nodes, Traffic Signal Controls, and Power Grid Monitoring Terminals
- Embedded Legacy Network Upgrades, Serial Device Servers, and Automated Public Utility Gateways
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Shipped within 1-2 business days |
| Delivery Time | 3-7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
Q1: Is your currently available stock of the MPC855TVR50D4 100% original and genuine?
A: Yes, we guarantee that all MPC855TVR50D4 microprocessors in our inventory are 100% brand-new, factory-original products directly from NXP Semiconductors / Freescale. Every component batch is fully verified through our rigorous intake audit protocols and is stored and shipped in secure anti-static tray containers to safeguard BGA solder ball co-planarity.
Q2: What is the main design advantage of the dual-processor layout (Core CPU + CPM) inside the MPC855 family?
A: The dual-core architecture prevents networking bottlenecks. While the main 32-bit core processes upper-tier application software and operational workflows, the independent Communications Processor Module (CPM) handles low-level frame packing, bit-level error validation, and high-frequency data line traffic. This distribution of tasks eliminates CPU thread locking during heavy network loads.
Q3: What specific detail does the “VR” designator represent in this NXP part number sequence?
A: Under the PowerQUICC part numbering convention, the “VR” code indicates that this device is encapsulated within a lead-free (Pb-free) Plastic Ball Grid Array (PBGA) packaging format. This enables total compliance with modern global green electronics manufacturing directives, including RoHS and REACH regulations.
Q4: How can our design department request official reference manuals, hardware layouts, or secure a volume wholesale quotation?
A: Please input your target volume numbers and technical specifications into the Quick Inquiry form found directly on this webpage. Our embedded processing engineering group will analyze your requirements and follow up with comprehensive data assets and custom pricing within 24 hours.
