MPU-9250
MPU-9250
| Part Number | MPU-9250 |
|---|---|
| Manufacturer | InvenSense / TDK |
| Category | Sensors > Motion Sensors – IMUs (Inertial Measurement Units) |
| Description | 9-Axis MotionTracking device combining a 3-axis gyroscope, 3-axis accelerometer, 3-axis magnetometer, and a Digital Motion Processor (DMP). |
Product Overview
The MPU-9250 is a multi-chip module (MCM) consisting of two dies integrated into a single QFN-24 (3x3x1mm) package. One die houses a 3-axis gyroscope and a 3-axis accelerometer, while the other die houses the AK8963 3-axis magnetometer. This pioneering 9-axis MotionTracking device is designed for the low power, low cost, and high-performance requirements of consumer electronics, robotics, and wearable devices. It features an onboard Digital Motion Processor (DMP) capable of processing complex MotionFusion algorithms, offloading the load from the applications processor and optimizing system power consumption.
Core Advantages
Highly Integrated 9-Axis Design
By combining a 3-axis gyroscope, 3-axis accelerometer, and 3-axis magnetometer into a single footprint, the MPU-9250 drastically reduces PCB space requirements, simplifies system design, and lowers overall Bill of Materials (BOM) cost.
On-Chip DMP for MotionFusion
Integrated Digital Motion Processor (DMP) runs sensor fusion algorithms internally, reducing host MCU load and enabling low-power, always-on motion tracking.
Wide Dynamic Ranges & High Resolution
User-programmable full-scale ranges for all sensors plus 16-bit ADCs deliver accurate, high-resolution motion data for both slow and fast movement scenarios.
Low Power & Industrial Grade
Optimized power modes extend battery life in wearables; operating temperature from -40°C to +85°C supports industrial and rugged applications.
Key Specifications
| Parameter | Specification Details |
|---|---|
| Brand | InvenSense / TDK |
| RoHS Status | RoHS Compliant / Lead Free |
| EDA / CAD Models | PCB Footprint and Symbol Available |
| Warranty | 1-Year Manufacturer Warranty |
| Package / Case | QFN-24 (3x3x1mm) |
| Mounting Type | Surface Mount (SMD/SMT) |

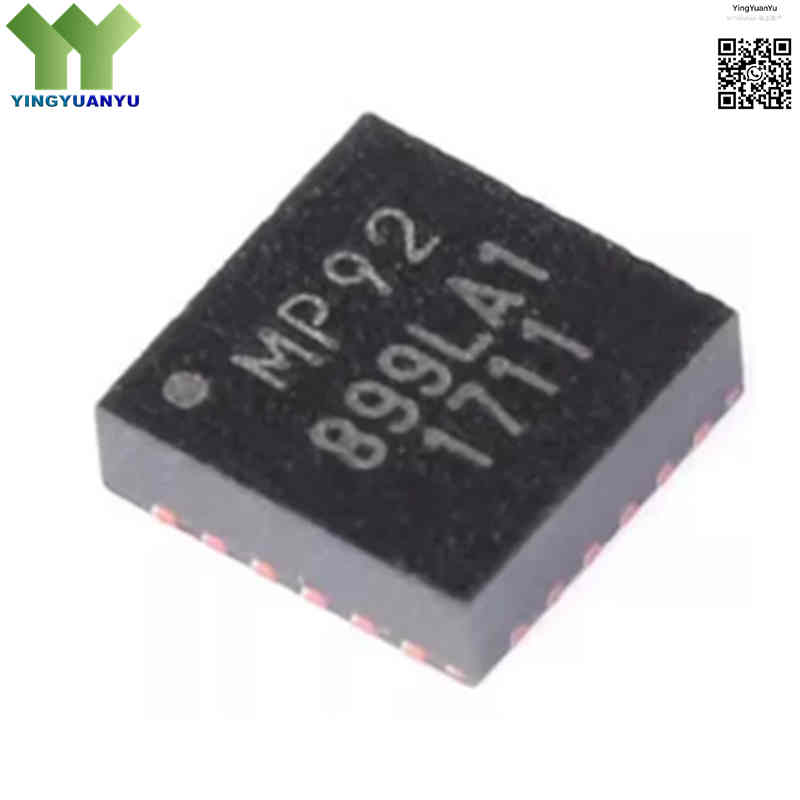

| Surface Marking / Silkscreen | MP92 Marking |
| Gyroscope Full-Scale Range | ±250, ±500, ±1000, ±2000°/sec (dps) |
| Accelerometer Full-Scale Range | ±2g, ±4g, ±8g, and ±16g |
| Magnetometer Full-Scale Range | ±4800 µT |
| Supply Voltage | 2.4V to 3.6V (VDD), 1.71V to VDD (VDDIO) |
| Operating Temperature | -40°C to +85°C Industrial Grade |
Typical Applications
- Wearable Devices: Activity trackers, smart watches and fitness bands
- Game Peripherals: Motion-sensing game controllers and 3D remote controls
- UAV & Robotics: Drones, robotic navigation and balance control systems
- Portable Electronics: Smartphones, tablets and handheld navigation devices
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
| Shipping Time | Shipped within 1-2 business days |
| Delivery Time | 3-7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
Q1: Is the MPU-9250 stock you carry 100% original?
A1: Yes, we provide original, factory-authentic InvenSense/TDK parts with full batch traceability and stringent quality verification.
Q2: What is the main difference between MPU-9250 and MPU-6050?
A2: The MPU-6050 is a 6-axis device (accelerometer + gyroscope), whereas the MPU-9250 integrates a 3-axis compass/magnetometer (AK8963) inside the same package, upgrading it to a complete 9-axis orientation tracker.
Q3: How fast can this component be shipped out once order details are locked?
A3: We ship standard in-stock inventory items within 1-2 business days following confirmed transaction payments.
Q4: Can you provide the original schematic footprints and full programming register maps?
A4: Yes, please leave a message via our Quick Inquiry web form, and our tech support team will provide the requested reference registers and CAD resources within 24 hours.
