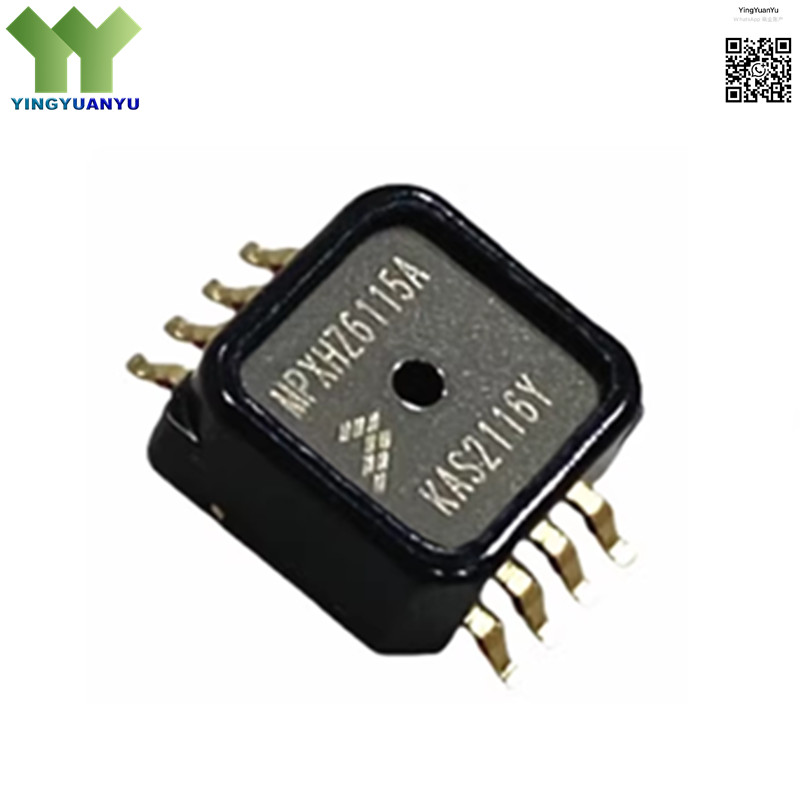

MPXHZ6115A6T1
Basic Information
| Part Number | MPXHZ6115A6T1 |
| Manufacturer | NXP Semiconductors |
| Category | Sensors, Transducers > Pressure Sensors |
| Description | IC PRESSURE SENSOR 115KPA 8SOP |
Product Overview
The MPXHZ6115A6T1 is a high-precision absolute pressure sensor designed for industrial and automotive applications. It integrates a monolithic silicon pressure sensing element with on-chip temperature compensation, calibration, and signal conditioning circuitry to deliver a stable, linear analog output proportional to applied pressure. The device features high accuracy, low noise, and excellent long-term stability across a wide temperature range, housed in a compact 8-SOP surface-mount package ideal for space-constrained designs.
Key Specifications
| RoHS Status | RoHS Compliant |
| EDA/CAD Models | Symbols, Footprints, 3D Models Available |
| Warranty | Standard Manufacturer Warranty |
| Brand | NXP Semiconductors |
| Pressure Type | Absolute |
| Operating Pressure Range | 0 kPa to 115 kPa |
| Output Type | Analog Voltage |
| Voltage – Supply | 4.75V ~ 5.25V |
| Accuracy | ±0.5% Full Scale Span |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Package / Case | 8-SOP |
| Mounting Type | Surface Mount |
Typical Applications
- Automotive Engine Manifold Pressure Sensing
- Industrial Pressure Monitoring Systems
- HVAC Control and Barometric Measurement
- Air Compressor and Pump Control Systems
- Industrial Process Automation
- Liquid Level and Flow Monitoring
- Portable Pressure Measurement Devices
- Environmental Monitoring Equipment
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
