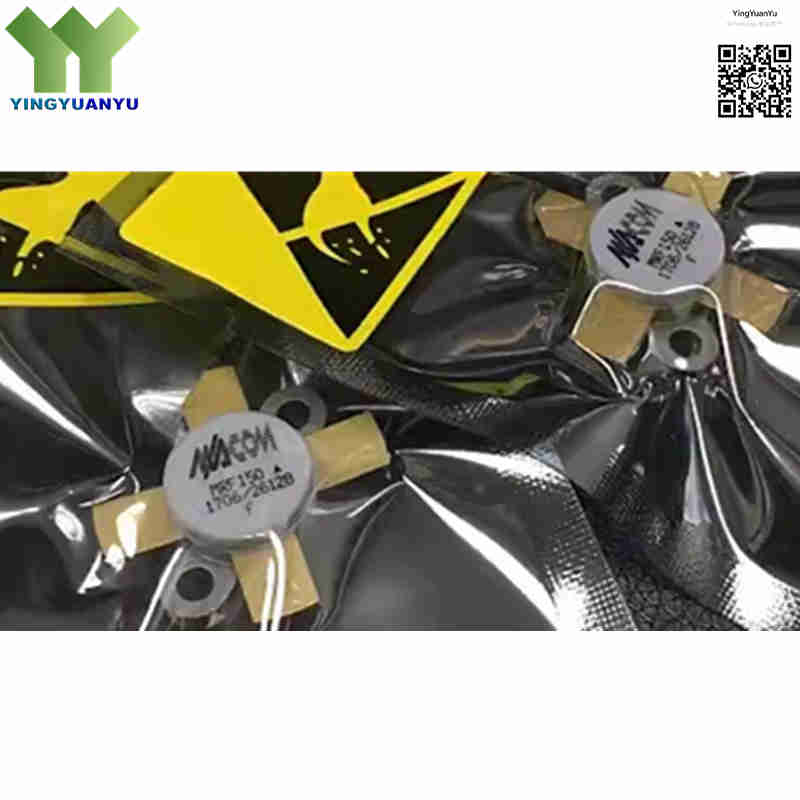

MRF150
MRF150
| Part Number | MRF150 |
|---|---|
| Manufacturer | M/A‑COM Technology Solutions (Formerly Motorola) |
| Category | Discrete Semiconductor Products > Transistors – FETs, MOSFETs – RF |
| Description | N‑Channel RF Power MOSFET Transistor, 150W PEP Output Power, 50V, Up to 150 MHz, Case 211‑11 Style 2 Flanged Ceramic Package (Commonly called M174). |
| Stock Status | In Stock |
| Origin | Original Factory |
Product Overview
MRF150 is N‑channel enhancement‑mode RF power TMOS MOSFET for transmitters up to 150 MHz. Operating at 50 V, it provides 150 W PEP output power, featuring high efficiency, low IMD and 30:1 VSWR ruggedness. The flanged Case 211‑11 Style 2 ceramic package delivers reliable thermal performance for CW and SSB RF power amplifiers.
Core Advantages
High RF Performance
12‑17 dB gain, 150 W PEP output at 50 V, lowering drive‑power requirements for transmitter systems.
Superior Mismatch Resistance
Factory‑validated for 30:1 full‑power VSWR tolerance across all phase angles.
Good Linearity
Low intermodulation distortion, ideal for linear SSB high‑power amplifier designs.
Robust Thermal Package
Case 211‑11 Style 2 flange‑mount ceramic housing enables effective heat dissipation for continuous high‑power operation.
Key Specifications
| Brand | M/A‑COM (Formerly Motorola) |
|---|---|
| RoHS Status | RoHS Compliant |
| EDA / CAD | PCB Footprint & 3D Model Available upon Request |
| Warranty | 1‑Year Standard Quality Warranty |
| Package / Case | Case 211‑11 (Style 2) Flanged Ceramic Package (Commonly called M174) |
| Mounting Type | Chassis Mount / Flange Mount |
| Surface Marking / Silkscreen | MRF150 /MACOM Logo |
| Transistor Type | RF N‑Channel Enhancement‑Mode MOSFET (TMOS) |
| Frequency Range | HF to 150 MHz |
| Output Power (Pout) | 150 W PEP (Typical @50V, 30MHz) |
| Drain‑Source Voltage (Vdss) | 125 V (Max) |
| Operating Drain Voltage (Vdd) | 50 V (Nominal) |
| Drain Current (Id) | 16 A (Max Continuous) |
| Power Gain | 12 dB ~ 17 dB (Typical) |
| Drain Efficiency | 45 % (Typical @30 MHz) |
| Thermal Resistance Rth‑jc | 0.6 ℃/W (Max) |
| Power Dissipation (Tc=25℃) | 300 W |
| Operating Junction Temperature | -65°C to +200°C |
| Storage Temperature Range | -65°C ~ +150°C |
| Input Capacitance (Ciss) | 400 pF (Typ) |
| Output Capacitance (Coss) | 240 pF (Typ) |
Typical Applications
- HF and VHF Commercial/Military Radio Communications Transmitters
- High‑Power Linear SSB (Single Sideband) Power Amplifiers
- Industrial, Scientific, and Medical (ISM) RF Generators (RF Heating, Plasma Generators)
- CO₂ Laser Drivers and Nuclear Magnetic Resonance (NMR) Amplifiers
- FM Broadcast Transmitters and Marine Radio Power Amplifiers
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Shipped within 1‑2 business days |
| Delivery Time | 3‑7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
Q1: What is the output power and operating voltage of MRF150?
A: MRF150 outputs 150W PEP at 50V nominal supply, max frequency 150 MHz. This is PEP peak‑envelope power, not continuous CW power.
Q2: How rugged is MRF150 against load mismatch?
A: 100% factory‑tested to survive 30:1 VSWR across all phases under full rated power.
Q3: What package does MRF150 use?
A: Case 211‑11 Style 2 flanged ceramic package, market alias M174. Requires chassis flange mounting.
Q4: What is the difference between MRF150 and MRF151G?
A: MRF150:150W PEP up to 150MHz; MRF151G:300W PEP up to 175MHz. Pin‑out incompatible, no direct drop‑in replacement, matching circuit needs redesign.
Q5: Are there pin‑compatible cross‑reference parts?
A: No guaranteed drop‑in alternative. Any candidate replacement requires full lab validation before production use.
Q6: Does MRF150 have suffix or tape‑reel variants?
A: MRF150 is flange‑mount through‑hole device, no SMD tape‑reel suffix versions.
Q7: Is MRF150 ESD‑sensitive?
A: Yes. ESD anti‑static protection must be applied during handling and assembly.
Q8: How to get datasheet, CAD files or volume pricing?
A: Submit quick inquiry for datasheets, CAD models, stock status and bulk quotation.
