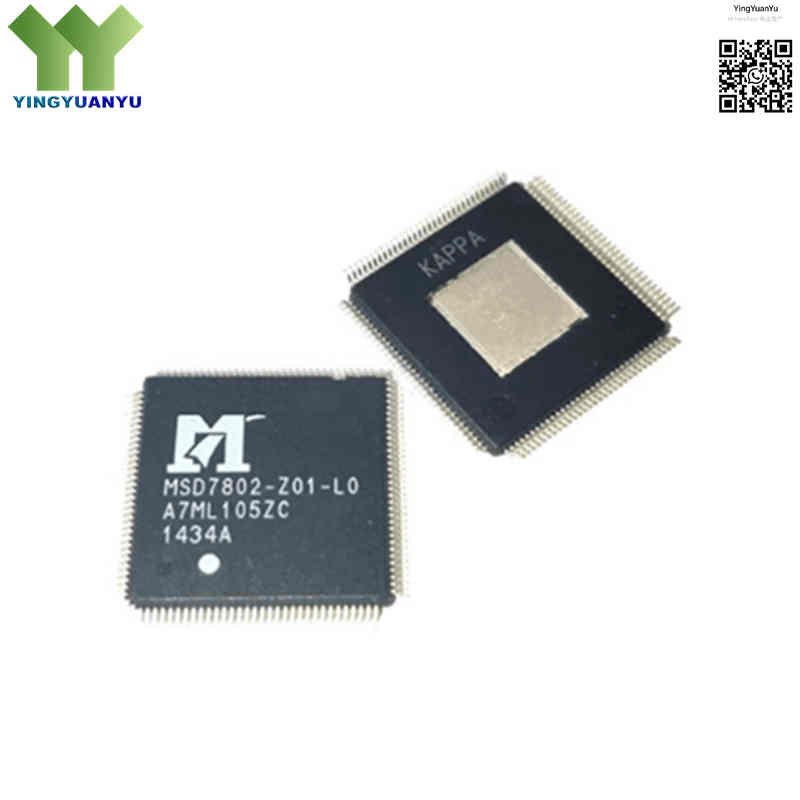

MSD7802-Z01-L0
MSD7802-Z01-L0
| Part Number | MSD7802-Z01-L0 |
|---|---|
| Manufacturer | MStar Semiconductor / MediaTek (MStar Subsidiary) |
| Category | Integrated Circuits (ICs) > Embedded – Multimedia Application Processors |
| Description | Highly integrated HD DTV & STB system-on-chip, built-in multi-standard demodulator, hardware video decoder, HDMI 1.4b transmitter and full peripheral interfaces for digital broadcast receiver equipment. |
| Stock Status | In Stock |
| Origin | Original Factory |
Product Overview
The MSD7802-Z01-L0 is a cost-effective single-chip multimedia SoC developed by MStar Semiconductor (acquired by MediaTek), specially designed for HD set-top boxes, terrestrial digital TV receivers and media playback devices. It adopts MIPS34Kf RISC CPU running at 550MHz, integrated dedicated hardware decoding engine to support mainstream HD broadcast video formats, and built-in parallel TS transport stream interface for external signal demodulation.
This chip integrates DDR2/DDR3 memory controller, USB 2.0 host, multi-channel audio DAC, HDMI 1.4b HD video output and complete general peripherals. The all-in-one silicon design reduces PCB layout area and BOM cost, with optimized dynamic power management for low standby power consumption. Packaged in compact 128-LQFP, it is a mature stable solution for consumer digital TV converters, commercial display media players and vehicle rear-seat entertainment modules.
Core Advantages
Multi-Standard Hardware HD Video Decoding
Dedicated hardware decoder supports MPEG-1/2/4, H.264, VC-1 formats, stable 1080p60 full HD output without occupying main CPU computing resources.
Highly Integrated Single-Chip Architecture
Combines transport stream demodulation interface, multimedia processor, graphics unit and full peripherals on one chip, greatly simplifying circuit design and lowering component quantity.
Intelligent Dynamic Power Management
Automatic clock gating and power island control for idle modules, automatically switch to ultra-low power standby mode to reduce static power consumption during system idle state.
Complete Built-In AV & Digital Interfaces
Onboard HDMI 1.4b with HDCP, CVBS/YPbPr analog video, multi-channel audio DAC and USB 2.0 host, no extra transceiver chips required for mainstream media output.
Key Specifications
| Brand | MStar / MediaTek |
|---|---|
| RoHS Status | RoHS Compliant / Lead-Free Standard Green Package |
| EDA/CAD Model | 3D Model & PCB Footprint Available upon request |
| Warranty | 1-Year Standard Factory Warranty |
| Package / Case | 128-LQFP Low-Profile Quad Flat Package |
| Mounting Type | Surface Mount Technology (SMD/SMT) |
| Surface Marking / Silkscreen | MSD7802-Z01-L0 / MStar Brand Logo & Traceable Production Lot Codes |
| Core Processing Unit | MIPS34Kf High-Performance RISC Core @ 550MHz |
| Video Decoding Capability | Multi-format Decoding: MPEG-1/2/4, H.264, VC-1, Support up to 1080p60 Full HD Output |
| Memory Support Interface | Built-In DDR2 / DDR3 SDRAM Memory Controller |
| Output Audio Support | Multi-Channel Digital Audio, Integrated High-Fidelity Audio DAC Outputs |
| Video Output Terminals | HDMI 1.4b Transceiver with HDCP Protection, Analog CVBS / YPbPr Component Video |
| Peripheral Communication Ports | 1x USB 2.0 Host, UART, I2C Bus, Configurable Multi-Channel GPIO |
| Demodulation Support | Parallel Transport Stream (TS) Interface for External Digital Broadcast Demodulator |
| Operating Temperature Range | 0°C ~ +70°C Standard Commercial Grade Operating Temperature |
Typical Applications
- High-Definition Terrestrial and Cable Set-Top Boxes (STB) and Digital TV Converter Units
- Smart Hospitality Television Systems, Media Players, and Commercial Retail Display Signage
- Interactive Educational Media Terminals and Low-Power Embedded Streaming Hardware Modules
- Automotive Infotainment Backseat Video Entertainment Displays and In-Car Broadcast Receivers
- Legacy Digital-to-Analog Television Interface Bridges and Security Multi-Channel Monitor Feeds
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Shipped within 1-2 business days |
| Delivery Time | 3-7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
Q1: Is your currently available warehouse stock of the MSD7802-Z01-L0 SoC completely original?
A: Yes, we guarantee that all MSD7802-Z01-L0 multimedia chips in our warehouse inventory are 100% brand-new, factory-original components. They are strictly handled, tracked, and dispatched inside standard anti-static ESD-shielded packaging lines.
Q2: Does the MSD7802-Z01-L0 integrated chip support Full High-Definition (1080p) processing native frameworks?
A: Yes, the SoC integrates dedicated hardware decoding pipelines tailored to handle multi-standard broadcast content formats up to full 1080p high-definition definitions at 60 frames per second smoothly.
Q3: What role do the power management modules play during device deployment cycles?
A: The chip includes an internal smart power island distribution system. When decoding workloads decline or systems switch to passive sleep phases, it lowers operating clock speeds and cuts power rails to unused subsystems, keeping thermal profiles and power draw to a absolute minimum.
Q4: How can our design engineers access board routing checklists, reference code libraries, or obtain tiered bulk wholesale pricing structures?
A: Please complete our Quick Inquiry web form on this page with details about your processing parameters. Our application support desk will process your inquiry and dispatch the available technical documentation package within 24 hours.
