MT9105DT-1616
MT9105DT-1616
| Part Number | MT9105DT-1616 |
| Manufacturer | MagnTek |
| Category | Active Components > Integrated Circuits > Hall Effect Sensor IC |
| Description | Linear Hall Effect Sensor IC, ±43mT Magnetic Range, 3.15mV/Gs Sensitivity, DFN-3(1.6×1.6) SMD Package |
Product Overview
The MT9105DT-1616 is a high-precision linear Hall-effect sensor IC manufactured by MagnTek. It adopts ratiometric rail-to-rail analog output design with low output noise and outstanding linearity, operating on 3.0V to 5.5V rated supply voltage and featuring 30kHz typical bandwidth. This device has ±43mT magnetic field detection range, fixed 3.15mV/Gs sensitivity with ±10%/℃ sensitivity temperature drift and ±1.5% linearity error. Compact DFN-3(1.6×1.6) surface mount package saves PCB layout space, widely used for non-contact position sensing, BLDC motor commutation and industrial current detection circuits.
Key Specifications
| Brand | MagnTek |
| RoHS | RoHS Compliant |
| EDA / CAD | Symbols, Footprints, 3D Models Available |
| Warranty | 1 Year Standard Warranty |
| Package / Case | DFN-3 (1.6×1.6) |
| Mounting Type | Surface Mount |

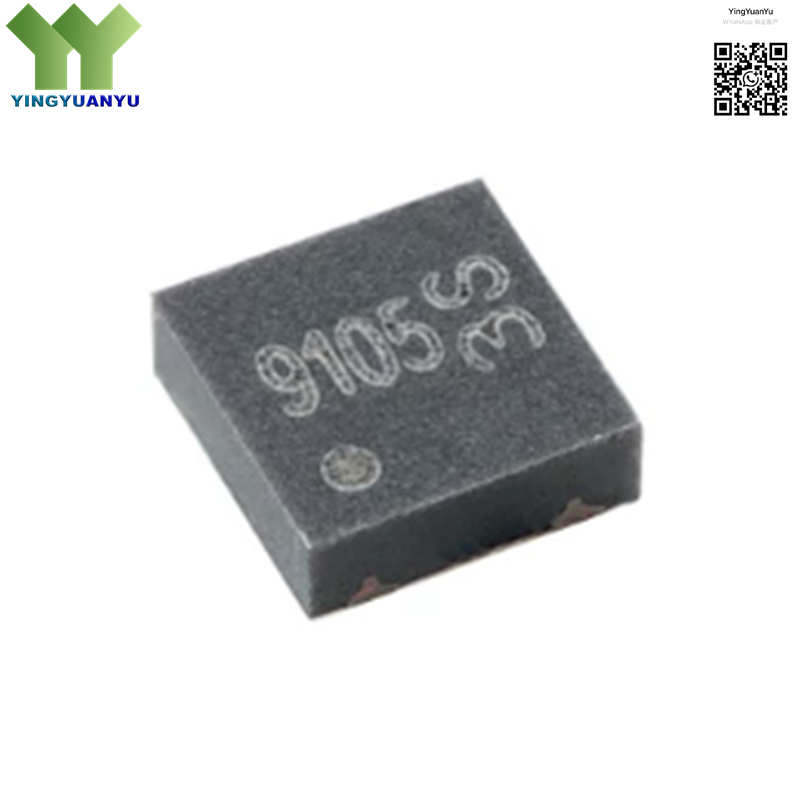

| Surface Marking / Silkscreen | 9105 Marking |
| Operating Supply Voltage | 3.0V ~ 5.5V |
| Typical Bandwidth | 30kHz |
| Magnetic Field Range | ±43mT |
| Sensitivity | 3.15mV/Gs |
| Sensitivity Tempco | ±10%/℃ |
| Linearity | ±1.5% |
| Operating Temperature | -40℃ ~ +125℃ |
Typical Applications
- Brushless DC Motor Position Sensing
- Non-contact Linear Position Detection
- Industrial Current Monitoring Modules
- Home Appliance Control Circuits
- Portable Electronic Equipment
Order & Shipping Info
Minimum Order Quantity (MOQ): 1 Piece
Shipping Time: Shipped within 1-2 business days
Delivery Time: 3-7 working days worldwide
Shipping Methods: DHL, UPS, FedEx, EMS
Payment Methods: T/T (Bank Transfer), PayPal, Credit Card, Western Union
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
Q1: Is MT9105DT-1616 RoHS compliant?
A: Yes, this product fully complies with RoHS environmental standards.
Q2: Can I apply for product samples for testing?
A: Sample service is available, please submit your request via the Quick Inquiry form.
Q3: What is the package and mounting type?
A: It adopts DFN-3(1.6×1.6) package and surface-mount mounting design.
Q4: How long is the warranty period?
A: We provide 1 year standard warranty for all products.
