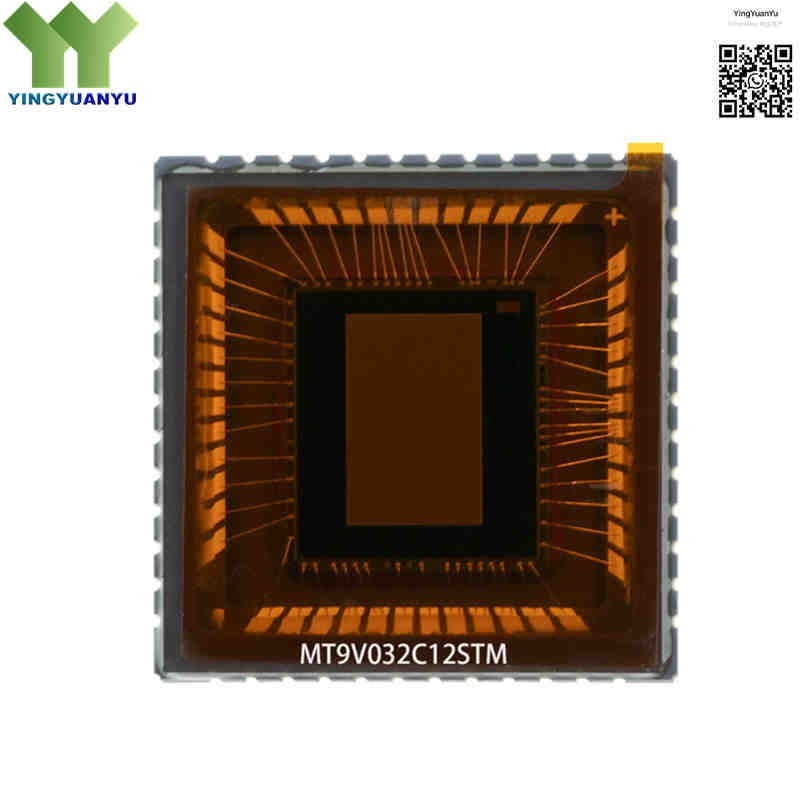

MT9V032C12STM-DP
MT9V032C12STM-DP
| Part Number | MT9V032C12STM-DP |
|---|---|
| Manufacturer | onsemi (Aptina / Micron) |
| Category | Sensors, Transducers > Image Sensors, Camera Modules |
| Description | 1/3″ WVGA Monochrome CMOS Image Sensor, True Global Shutter, HiDy HDR, 48‑Pin CLCC Dry‑Pack Package, Industrial Grade. |
| Stock Status | In Stock |
| Origin | Original Factory |
Product Overview
The MT9V032C12STM‑DP is onsemi industrial‑grade 1/3‑inch WVGA monochrome CMOS image sensor with True Global Shutter. 752×480 active array with 6.0 μm square pixels, max 60fps full resolution. It delivers >55 dB linear dynamic range, up to 100 dB under HiDy HDR mode. Suited for machine‑vision, barcode scanning and inspection systems, packaged in 48‑pin CLCC dry‑pack tray.
Core Advantages
True Global Shutter Architecture
All pixels expose simultaneously, eliminates rolling‑shutter distortion for fast‑moving object capture.
HiDy High Dynamic Range
>55 dB linear dynamic range; up to 100 dB with HiDy HDR for high‑contrast lighting scenarios.
6.0 μm Large Monochrome Pixel
High quantum efficiency, excellent low‑light and near‑infrared imaging performance.
Flexible Readout Functions
Support ROI windowing & binning, on‑chip 10‑bit ADC, adjustable gain and exposure for easy integration.
Key Specifications
| Brand | onsemi / Aptina / Micron |
|---|---|
| RoHS Status | RoHS Compliant / Lead‑Free |
| EDA / CAD | PCB Footprint & 3D Model Available upon Request |
| Warranty | 1‑Year Standard Quality Warranty |
| Package / Case | 48‑Pin CLCC (Ceramic Leaded Chip Carrier, Dry‑Pack) |
| Mounting Type | Surface Mount (SMD / SMT) |
| Surface Marking / Silkscreen | MT9V032C12STM |
| Active Array Size | 752 (H) x 480 (V) Wide VGA Resolution |
| Optical Format | Type 1/3 inch (Diagonal 5.35 mm) |
| Pixel Size | 6.0 µm (H) x 6.0 µm (V) Square Pixels |
| Shutter Type | True Global Shutter |
| Chroma | Monochrome |
| Dynamic Range | >55 dB (Linear), Up to 100 dB (HiDy HDR Mode) |
| Maximum Frame Rate | 60 fps @ full WVGA resolution; higher frame‑rate with ROI cropping |
| Master Clock | 26.6 MHz |
| ADC Resolution | 10‑bit Column‑Parallel ADC |
| Responsivity | 4.8 V/lux‑sec @ 550 nm |
| Output Interface | 10‑bit Parallel Digital Output / LVDS optional variant |
| Supply Voltage | 3.0V ~ 3.6V, typical 3.3V |
| Operating Temperature Range | -30°C ~ +70°C, Industrial Grade (Non‑Automotive) |
Typical Applications
- High‑Speed Industrial Machine Vision, Robotics, Factory Automation
- 1D / 2D Barcode Scanners & Logistics Sorting Equipment
- High‑speed optical inspection & infrared assisted imaging
- Intelligent Transportation, License Plate Recognition
- Optical measurement instruments, biometric recognition
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Shipped within 1‑2 business days |
| Delivery Time | 3‑7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
Q1: What shutter type for MT9V032C12STM‑DP?
A: True Global Shutter, eliminates rolling‑shutter distortion for fast‑moving objects.
Q2: What is its resolution and pixel size?
A: 752(H)×480(V) WVGA, 6.0 μm square pixel, 1/3‑inch optical format, monochrome output.
Q3: What is HiDy HDR performance?
A: >55 dB linear dynamic range; up to 100 dB after enabling HiDy HDR mode.
Q4: Difference among ‑DP /‑DR /‑TP suffixes for MT9V032?
A: Same die & 48‑Pin CLCC package. ‑DP:Dry‑Pack tray with protective film；‑DR:Dry‑Reel without protective film；‑TP:Tape & Reel with protective film. Only packaging differs, electrical performance fully identical.
Q5: MT9V032C12STM‑DP vs MT9V022IA7ATM‑DP?
A: Same pixel array. MT9V032:48‑Pin CLCC industrial,‑30~+70℃, no AEC‑Q100. MT9V022:52‑Pin IBGA AEC‑Q100 automotive‑grade‑40~+85℃. Not pin‑compatible, PCB redesign required.
Q6: Is MT9V032C12STM‑DP automotive qualified?
A: No, it is industrial grade, operating temperature‑30℃ ~ +70℃, without AEC‑Q100 certification, not suitable for automotive projects.
Q7: Any pin‑to‑pin drop‑in compatible alternatives?
A: No direct pin‑to‑pin drop‑in replacement. MT9V032CTC series is color version with identical package footprint, requires software re‑configuration. Other global‑shutter WVGA mono sensors need full hardware & software re‑validation.
Q8: What supply voltage does MT9V032C12STM‑DP require?
A: Operating supply voltage 3.0V‑3.6V, typical 3.3V.
Q9: What is difference between MT9V032C12STM‑DP and MT9V032C12STC‑DP?
A: MT9V032C12STM‑DP is monochrome sensor; MT9V032C12STC‑DP is color Bayer version. Same 48‑Pin CLCC package and electrical specs, different color filter array.
Q10: How do I get datasheet and bulk quotation?
A: Submit Quick Inquiry form for datasheet and volume price offer.
