MW4IC2020NBR1
MW4IC2020NBR1
| Part Number | MW4IC2020NBR1 |
|---|---|
| Manufacturer | NXP Semiconductors / Freescale Semiconductor |
| Category | Discrete Semiconductor Products > Transistors > FETs, MOSFETs > RF MOSFET ICs |
| Description | 20W PEP 3-Stage LDMOS RF Power Amplifier IC, 1600MHz-2400MHz, 26V, Built-in 50Ω Matching, TO-272 WB-16, Obsolete. |
| Stock Status | In Stock |
| Origin | Original Factory |
Product Overview
The MW4IC2020NBR1 is a three-stage wideband LDMOS integrated RF power amplifier IC manufactured by NXP Semiconductors (formerly Freescale). Operating from 1600MHz to 2400MHz, it delivers 20W PEP output power with 27–29 dB typical gain. This monolithic component integrates built-in 50Ω matching circuits, ESD protection and temperature compensation, housed in chassis-mount TO-272 WB-16 package for good thermal performance. Note: This device is obsolete and no longer in production, suitable only for equipment maintenance.
Core Advantages
3-Stage Integrated Amplifier Architecture
Combines pre-driver, driver and power stages on a single chip, providing high gain and simplifying RF layout design.
Built-in 50Ω Impedance Matching
On-chip matching reduces external passive components, shortens development cycles and saves PCB space.
Stable Operation & Protection Circuitry
Works steadily under 3:1 VSWR mismatch. Integrated ESD protection and temperature compensation improve equipment reliability.
Wide Operating Frequency Band
Covers 1600MHz~2400MHz, compatible with legacy GSM, EDGE and CDMA cellular base station systems.
Key Specifications
| Brand | NXP Semiconductors / Freescale Semiconductor |
|---|---|
| RoHS Status | RoHS Compliant / Lead-Free / Green |
| EDA/CAD | Symbol, Footprint & 3D Model Available |
| Warranty | 1-Year Standard Quality Warranty |
| Package / Case | TO-272-16 |
| Mounting Type | Chassis Mount |

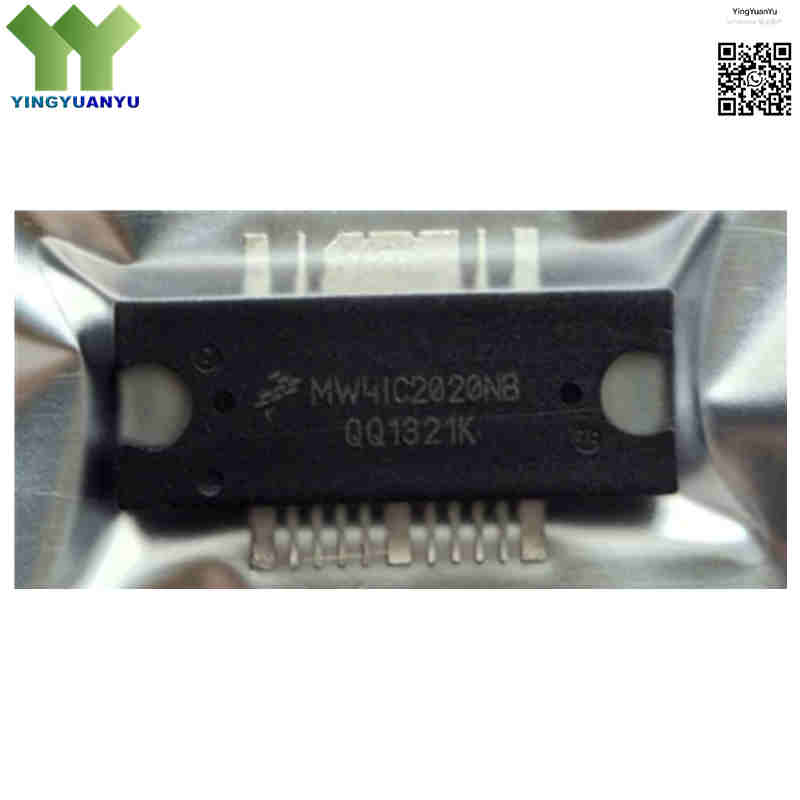

| Surface Marking / Silkscreen | MW4IC2020NB Marking |
| Transistor / IC Type | 3-Stage Wideband LDMOS Power Amplifier IC |
| Frequency Range | 1600 MHz to 2400 MHz |
| Peak Output Power (PEP) | 20 W PEP |
| Power Gain | 27 ~ 29 dB (Typical, depends on frequency & bias) |
| Operating Drain Voltage (VDD) | 26 V Nominal, operational range 26V – 28V |
| Drain Efficiency | 20 ~ 26% @ 20W PEP |
| Operating Temperature | -10℃ ~ +85℃ |
| Maximum Junction Temperature | Up to +200°C |
| Impedance | Input & Output 50Ω Matched (Internal Matching) |
| VSWR Tolerance | Stable operation under 3:1 VSWR |
| Device Status | No Longer Manufactured (Obsolete) |
| Packaging Format | Tape & Reel / Tray |
Typical Applications
- GSM / EDGE / CDMA cellular base station power amplifier modules
- Legacy wireless communication repeater & infrastructure maintenance
- 1.6GHz ~ 2.4GHz RF linear power amplification equipment
- Repair & aftermarket replacement for old communication hardware
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Shipped within 1-2 business days |
| Delivery Time | 3-7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
Q1: Is MW4IC2020NBR1 still in mass production?
A: This model is officially obsolete, No Longer Manufactured. Suitable only for equipment maintenance. New designs need to select alternative active RF power devices.
Q2: What is the internal amplifier stage configuration of MW4IC2020NBR1?
A: It adopts three-stage LDMOS amplifier design, integrating pre-driver, driver and final power stage inside one package.
Q3: Does MW4IC2020NBR1 contain internal impedance matching circuits?
A: Yes, built-in 50Ω input and output matching networks, greatly simplifies external RF circuit design.
Q4: What power supply voltage should be used for this RF amplifier?
A: Nominal VDD voltage is 26V, recommended operating range: 26V ~ 28V DC.
Q5: How to handle heat dissipation for MW4IC2020NBR1?
A: It is chassis mount package. The base metal tab must be tightly installed on heat sink with thermal grease to control junction temperature below 200°C maximum rating.
Q6: Can this device work under antenna mismatch conditions?
A: It maintains stable operation under up to 3:1 VSWR mismatch, but long-term high mismatch will accelerate device aging.
Q7: Are there recommended alternative replacement parts for MW4IC2020NBR1?
A: Different projects have different index requirements. Please send your frequency, power and linearity specifications via inquiry, we can recommend compatible alternative LDMOS RF power transistors.
Q8: What are its main target application frequency bands?
A: Wideband coverage 1600MHz to 2400MHz, mainly used for legacy GSM, EDGE and CDMA communication base station equipment.
