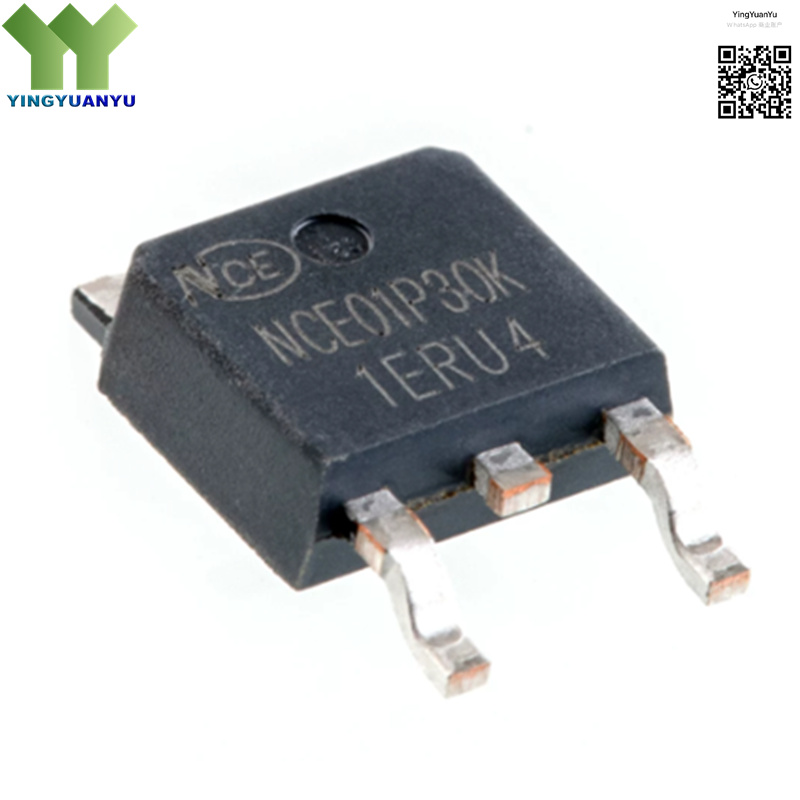

NCE01P30K
NCE01P30K
| Part Number | NCE01P30K |
|---|---|
| Manufacturer | NCE Semiconductor |
| Category | Discrete Semiconductors; P-Channel Power MOSFET |
| Description | P-Channel Enhancement Mode Power MOSFET, -100V, -30A,65 mΩ, Low Rds(on), TO-252-2L (DPAK) Surface Mount Package |
Product Overview
The NCE01P30K is a high-performance P-channel enhancement mode power MOSFET manufactured by NCE Semiconductor. Utilizing advanced trench MOSFET technology, it provides low on-state resistance, high current capability, fast switching speed, and excellent thermal stability. This device offers high power efficiency, robust reliability, and stable operation in high-voltage power switching, load control, and battery management applications. The TO-252-2L surface-mount package supports high-density PCB assembly and efficient heat dissipation.
| Key Specifications | |
|---|---|
| Brand | NCE Semiconductor |
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Package / Case | TO-252 (DPAK) |
| Mounting Type | Surface Mount (SMD) |
| Surface Marking / Silkscreen | NCE01P30K |
| Drain-Source Voltage (Vdss) | -100 V |
| Continuous Drain Current (Id) | -30 A |
| On-State Resistance (Rds(on)) | 65 mΩ (Max) |
| Operating Temperature | -55°C to +150°C |
Typical Applications
- High-Voltage DC-DC Converters & Regulators
- Power Switching & Load Control Systems
- Battery Management & Protection Circuits
- Motor Drive & Inverter Modules
- Switching Power Supplies & Adapters
- Industrial Power Control Equipment
- LED Lighting Driver Circuits
- Automotive & Consumer Electronic Power Systems
Order & Shipping Info
Minimum Order Quantity (MOQ): 1 Piece
Shipping Time: Shipped within 1-2 business days
Delivery Time: 3-7 working days worldwide
Shipping Methods: DHL, UPS, FedEx, EMS
Payment Methods: T/T (Bank Transfer), PayPal, Credit Card, Western Union
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
