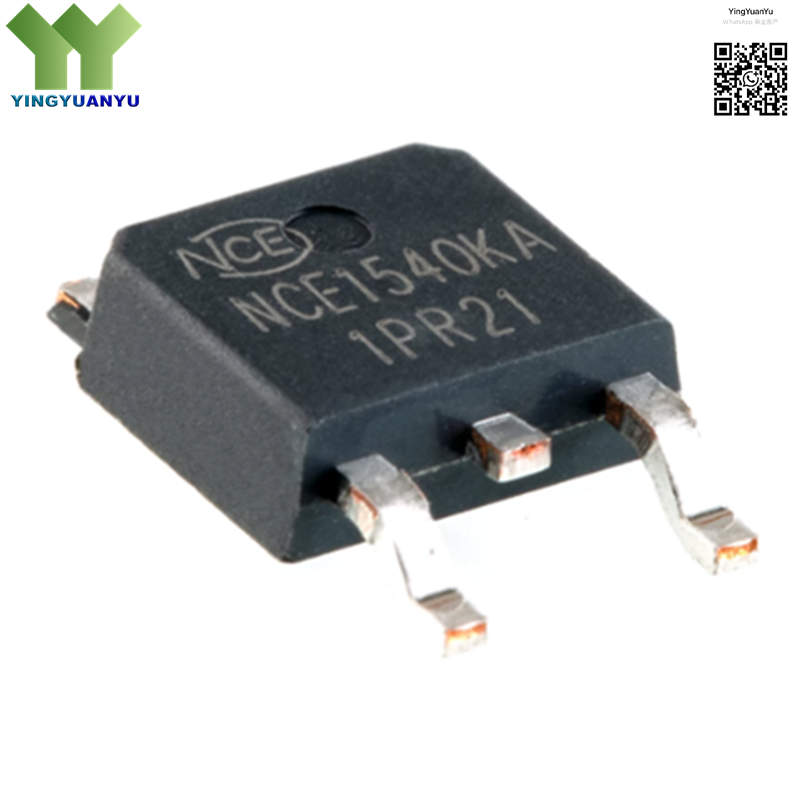

NCE1540KA
NCE1540KA
| Part Number | NCE1540KA |
| Manufacturer | NCE Electronics |
| Category | Semiconductors > Transistors > MOSFET |
| Description | N-Channel Power MOSFET, 150V, 40A,35mΩ, Ultra Low On-Resistance,TO-252-2L Package |
Product Overview
The NCE1540KA is a high-performance N-channel power MOSFET developed by NCE Electronics adopting advanced trench manufacturing process. It features ultra-low drain-source on-resistance for minimal conduction loss and high power conversion efficiency, together with fast switching performance and excellent thermal dissipation capability. Designed for low voltage high-current working conditions, this component ensures stable continuous current output and reliable operation under varying load. Packaged in standard TO-252-2L surface mounting form for easy installation and heat sink matching, it is widely used in lithium battery equipment, portable power supply and low voltage power management circuits.
Key Specifications
| Brand | NCE |
| RoHS | RoHS Compliant |
| EDA / CAD | Symbols, Footprints, 3D Models Available |
| Warranty | 1 Year Standard Warranty |
| Package / Case | TO-252-2L |
| Mounting Type | surface mounting |
| Surface Marking / Silkscreen | NCE1540KA Marking |
| Channel Type | N-Channel |
| Drain-Source Voltage (Vds) | 150 V |
| Continuous Drain Current (Id) | 40 A |
| Drain-Source On Resistance (Rds(on)) | 35 mΩ |
| Gate-Source Voltage (Vgs) | ±20 V |
| Operating Temperature | -55°C to 175°C |
Typical Applications
- Lithium Battery Protection & Management Circuits
- Low Voltage DC-DC Step Down Converters
- Portable Power Bank Control Boards
- Small DC Motor Drive Modules
- High Current Load Switching Equipment
- Consumer Fast Charger Power Circuits
- Electric Toy Control Circuits
- IoT Low-Voltage Power Supply Units
Order & Shipping Info
Minimum Order Quantity (MOQ): 1 Piece
Shipping Time: Shipped within 1-2 business days
Delivery Time: 3-7 working days worldwide
Shipping Methods: DHL, UPS, FedEx, EMS
Payment Methods: T/T (Bank Transfer), PayPal, Credit Card, Western Union
Technical Support
Frequently Asked Questions
Q1: Is NCE1540KA RoHS compliant?
A: Yes, this product fully complies with RoHS environmental standards.
Q2: Can I apply for product samples for testing?
A: Sample service is available, please submit your request via the Quick Inquiry form.
Q3: What is the package and mounting type?
A: It adopts TO-252-2L package and surface mounting design.
Q4: What is the typical Rds(on) value of NCE1540KA?
A: Its typical drain-source on resistance is 35 mΩ at specified test condition.
