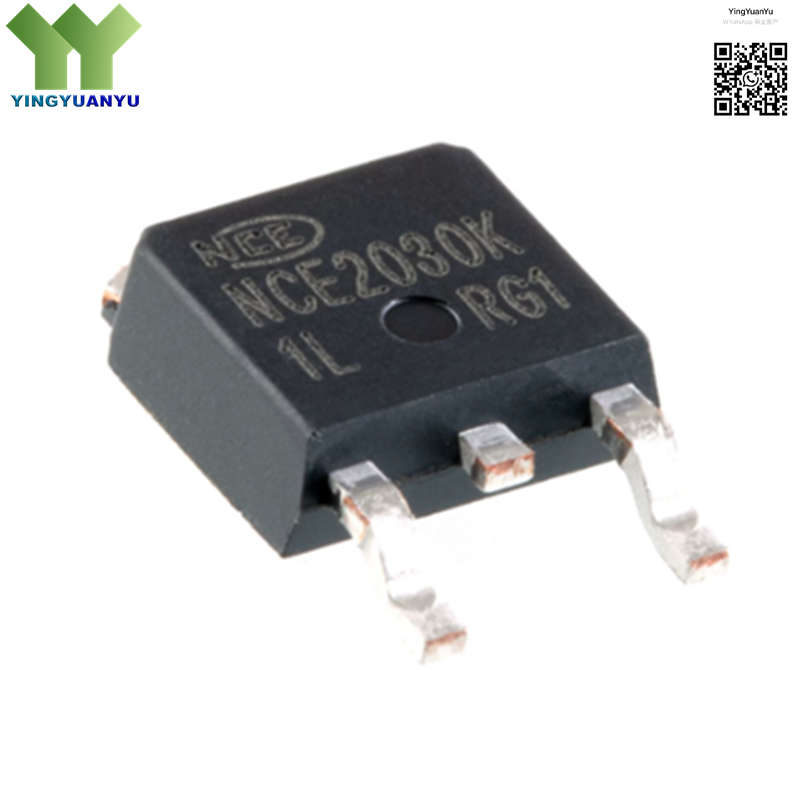

NCE2030K
NCE2030K
| Part Number | NCE2030K |
| Manufacturer | NCE Electronics |
| Category | Semiconductors > Transistors > MOSFET |
| Description | N-Channel Power MOSFET, 20V, 30A,13mΩ, Low On-Resistance,TO-252-2L Package |
Product Overview
The NCE2030K is a reliable N-channel power MOSFET manufactured by NCE Electronics with advanced trench technology. It features ultra-low drain-source on-resistance to reduce power loss and improve conversion efficiency, along with fast switching speed and outstanding thermal stability. The device can sustain large continuous current under low voltage working conditions and delivers stable performance under various load environments. Equipped with standard TO-252-2L surface mounting package for convenient installation and heat dissipation, it is a cost-effective choice for battery-powered equipment, DC-DC converters and low voltage power management circuits.
Key Specifications
| Brand | NCE |
| RoHS | RoHS Compliant |
| EDA / CAD | Symbols, Footprints, 3D Models Available |
| Warranty | 1 Year Standard Warranty |
| Package / Case | TO-252-2L |
| Mounting Type | surface mounting |
| Surface Marking / Silkscreen | NCE2030K Marking |
| Channel Type | N-Channel |
| Drain-Source Voltage (Vds) | 20 V |
| Continuous Drain Current (Id) | 30 A |
| Drain-Source On Resistance (Rds(on)) | 13mΩ |
| Gate-Source Voltage (Vgs) | ±20 V |
| Operating Temperature | -55°C to 175°C |
Typical Applications
- Battery Protection and Management Circuits
- Low Voltage DC-DC Converter Modules
- Portable Device Power Supply Units
- Small Motor Drive Control Boards
- Load Switching Protection Circuits
- Consumer Electronic Power Adapters
- Electric Toy Control Circuits
- IoT Wireless Equipment Power Modules
Order & Shipping Info
Minimum Order Quantity (MOQ): 1 Piece
Shipping Time: Shipped within 1-2 business days
Delivery Time: 3-7 working days worldwide
Shipping Methods: DHL, UPS, FedEx, EMS
Payment Methods: T/T (Bank Transfer), PayPal, Credit Card, Western Union
Technical Support
Frequently Asked Questions
Q1: Is NCE2030K RoHS compliant?
A: Yes, this product fully complies with RoHS environmental standards.
Q2: Can I apply for product samples for testing?
A: Sample service is available, please submit your request via the Quick Inquiry form.
Q3: What is the package and mounting type?
A: It adopts TO-252-2L package and surface mounting design.
Q4: What is the typical Rds(on) value of NCE2030K?
A: Its typical drain-source on resistance is 13mΩ at specified test condition.
