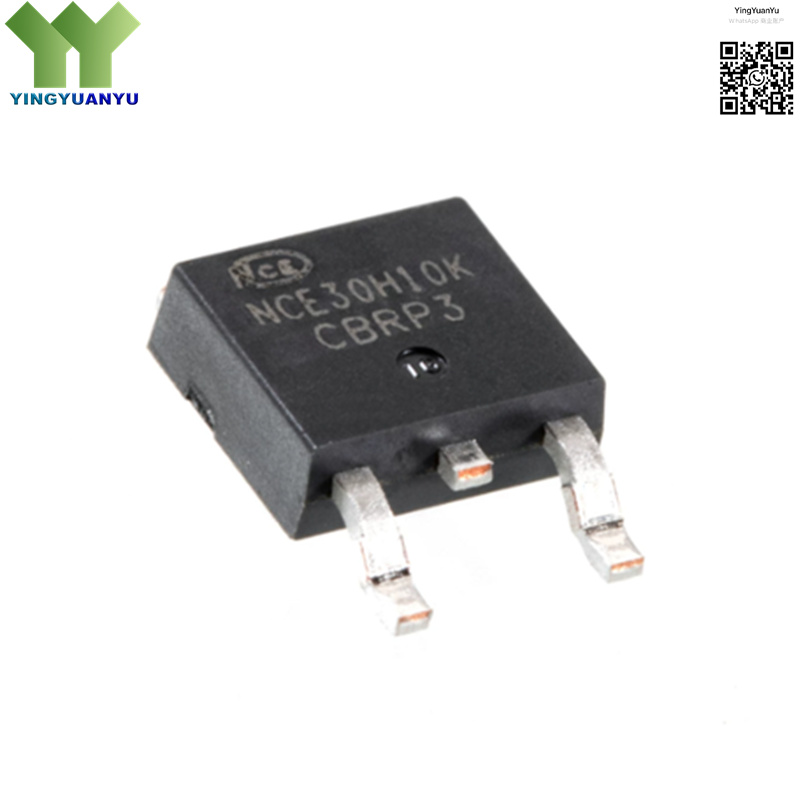

NCE30H10K
NCE30H10K
| Part Number | NCE30H10K |
|---|---|
| Manufacturer | NCE Semiconductor |
| Category | Discrete Semiconductors; N-Channel Power MOSFET |
| Description | N-Channel Enhancement Mode Power MOSFET, 30V, 100A,5.5 mΩ, Ultra Low Rds(on), TO-252 (DPAK) Surface Mount Package |
Product Overview
The NCE30H10K is a high-current, high-efficiency N-channel enhancement mode power MOSFET manufactured by NCE Semiconductor. Utilizing advanced trench MOSFET technology, it provides ultra-low on-state resistance, high continuous drain current, fast switching speed, and excellent thermal performance. The device features robust reliability, low power dissipation, and stable operation in high-current power management, DC-DC conversion, and motor drive applications, with a compact TO-252 surface-mount package for high-density PCB designs and efficient heat dissipation.
| Key Specifications | |
|---|---|
| Brand | NCE Semiconductor |
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Package / Case | TO-252 (DPAK) |
| Mounting Type | Surface Mount (SMD) |
| Surface Marking / Silkscreen | NCE30H10K |
| Drain-Source Voltage (Vdss) | 30 V |
| Continuous Drain Current (Id) | 100 A |
| On-State Resistance (Rds(on)) | 5.5 mΩ (Max) |
| Operating Temperature | -55°C to +150°C |
Typical Applications
- High-Current DC-DC Converters
- Power Switching & Load Management Systems
- Battery Protection & Management Modules
- High-Power Motor Drive Circuits
- High-Efficiency Power Supply Units
- Industrial Power Control Equipment
- Power Tools & Battery-Powered Devices
- Automotive & High-Density Power Systems
Order & Shipping Info
Minimum Order Quantity (MOQ): 1 Piece
Shipping Time: Shipped within 1-2 business days
Delivery Time: 3-7 working days worldwide
Shipping Methods: DHL, UPS, FedEx, EMS
Payment Methods: T/T (Bank Transfer), PayPal, Credit Card, Western Union
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
