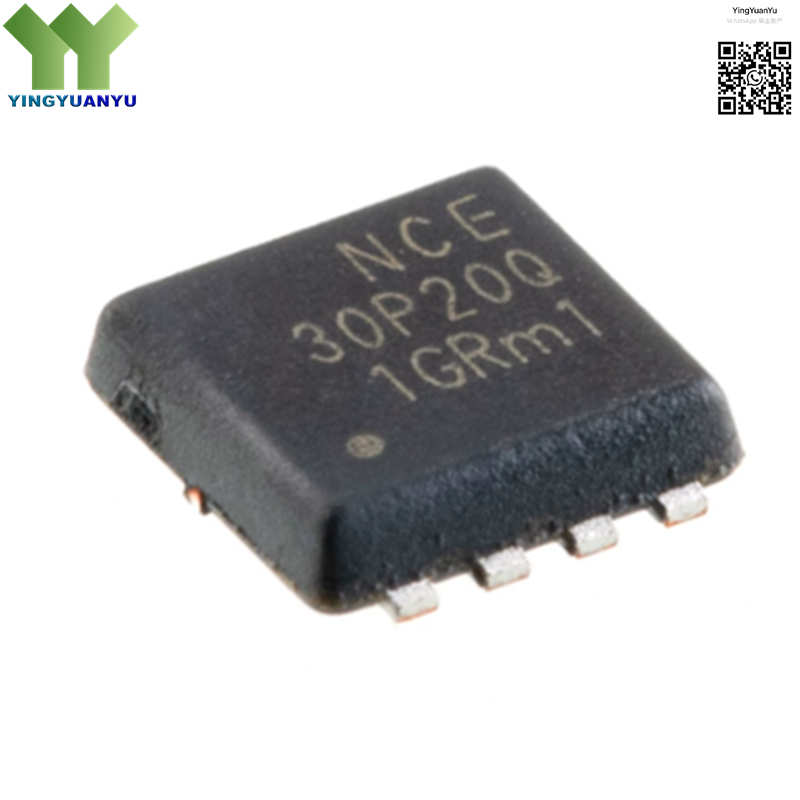

NCE30P20Q
NCE30P20Q
| Part Number | NCE30P20Q |
| Manufacturer | NCE Electronics |
| Category | Semiconductors > Transistors > MOSFET |
| Description | P-Channel Power MOSFET, 30V, 20A,15 mΩ, Low On-Resistance,DFN3.3×3.3-8L Package |
Product Overview
The NCE30P20Q is a high-performance P-channel power MOSFET developed by NCE Electronics. Featuring advanced trench semiconductor technology, this device delivers low drain-source on-resistance, low power loss and reliable fast switching performance. It has excellent current carrying capacity and good thermal stability, ensuring stable operation under various load conditions. Designed with compact surface mount package, it saves PCB space and is suitable for automated assembly. This cost-effective P-channel MOSFET is widely used in power management circuits, reverse polarity protection, load switching and battery powered electronic products.
Key Specifications
| Brand | NCE |
| RoHS | RoHS Compliant |
| EDA / CAD | Symbols, Footprints, 3D Models Available |
| Warranty | 1 Year Standard Warranty |
| Package / Case | DFN3.3×3.3-8L |
| Mounting Type | Surface Mount |
| Surface Marking / Silkscreen | NCE30P20Q |
| Channel Type | P-Channel |
| Drain-Source Voltage (Vds) | 30 V |
| Continuous Drain Current (Id) | 20 A |
| Drain-Source On Resistance (Rds(on)) | 15 mΩ |
| Gate-Source Voltage (Vgs) | ±20 V |
| Operating Temperature | -55°C to 175°C |
Typical Applications
- Battery Protection Circuits
- Load Switching Modules
- Reverse Polarity Protection
- DC-DC Converters
- Portable Electronic Devices
- Consumer Power Supplies
- Industrial Control Circuits
- Power Management Systems
Order & Shipping Info
Minimum Order Quantity (MOQ): 1 Piece
Shipping Time: Shipped within 1-2 business days
Delivery Time: 3-7 working days worldwide
Shipping Methods: DHL, UPS, FedEx, EMS
Payment Methods: T/T (Bank Transfer), PayPal, Credit Card, Western Union
Technical Support
Frequently Asked Questions
Q1: Is NCE30P20Q RoHS compliant?
A: Yes, this product fully complies with RoHS environmental standards.
Q2: Can I apply for product samples?
A: Sample service is available, please submit your request via the Quick Inquiry form.
Q3: What is the package and mounting type?
A: It adopts DFN3.3×3.3-8L package and surface mount type for PCB assembly.
Q4: How long is the warranty period?
A: We provide 1 year standard warranty for all products.
