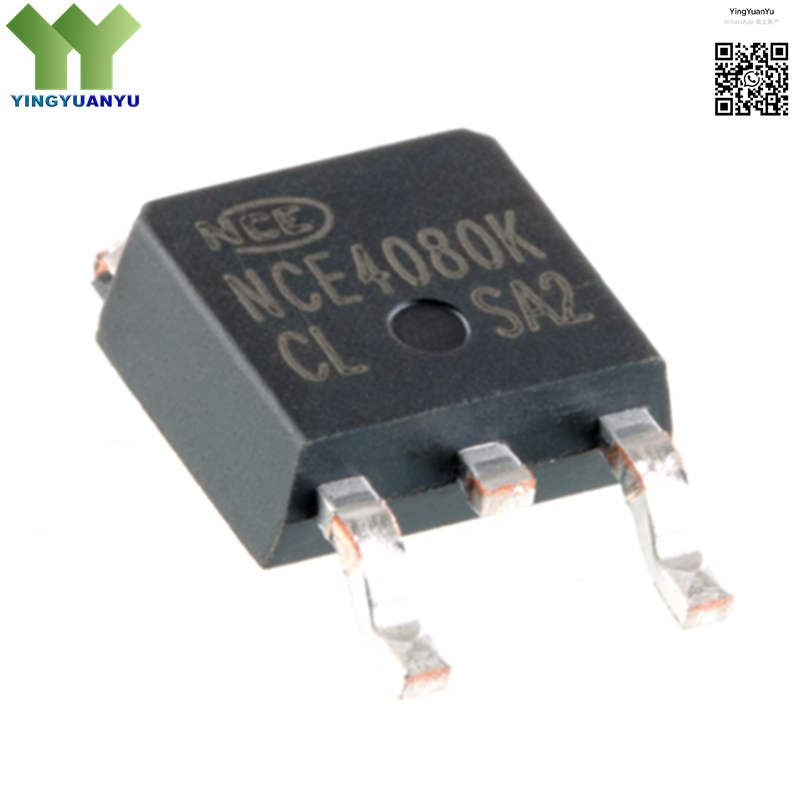

NCE4080K
NCE4080K
| Part Number | NCE4080K |
| Manufacturer | NCE Electronics |
| Category | Semiconductors > Transistors > MOSFET |
| Description | N-Channel Power MOSFET, 40V, 80A,7 mΩ, Ultra Low On-Resistance,TO-252-2L Package |
Product Overview
The NCE4080K is a high-current N-channel power MOSFET designed and produced by NCE Electronics with advanced trench manufacturing technology. It features extremely low drain-source on-resistance to minimize conduction loss and improve conversion efficiency, alongside outstanding high-speed switching performance and excellent thermal dissipation capability. Able to sustain large continuous current under rated voltage, this component delivers stable and durable performance under heavy-load operating conditions. Housed in standard TO-220-3 through-hole package for convenient installation and heat sink matching, it serves as an economical option for various low-voltage high-current power conversion and drive circuits.
Key Specifications
| Brand | NCE |
| RoHS | RoHS Compliant |
| EDA / CAD | Symbols, Footprints, 3D Models Available |
| Warranty | 1 Year Standard Warranty |
| Package / Case | TO-252-2L |
| Mounting Type | surface mounting |
| Surface Marking / Silkscreen | NCE4080K |
| Channel Type | N-Channel |
| Drain-Source Voltage (Vds) | 40 V |
| Continuous Drain Current (Id) | 80 A |
| Drain-Source On Resistance (Rds(on)) | 7 mΩ |
| Gate-Source Voltage (Vgs) | ±20 V |
| Operating Temperature | -55°C to 175°C |
Typical Applications
- High Current DC-DC Converter Modules
- Battery Management and Protection Circuits
- Motor Drive Control Units
- Electric Tool Power Boards
- Automotive Low-Voltage Control Circuits
- Industrial Switching Power Supplies
- Large Current Load Switching Equipment
- Portable Energy Storage Circuits
Order & Shipping Info
Minimum Order Quantity (MOQ): 1 Piece
Shipping Time: Shipped within 1-2 business days
Delivery Time: 3-7 working days worldwide
Shipping Methods: DHL, UPS, FedEx, EMS
Payment Methods: T/T (Bank Transfer), PayPal, Credit Card, Western Union
Technical Support
Frequently Asked Questions
Q1: Is NCE4080K RoHS compliant?
A: Yes, this product fully complies with RoHS environmental standards.
Q2: Can I apply for product samples for testing?
A: Sample service is available, please submit your request via the Quick Inquiry form.
Q3: What is the package and mounting type?
A: It adopts TO-252-2L package and surface mounting design.
Q4: How long is the warranty period?
A: We provide 1 year standard warranty for all products.
