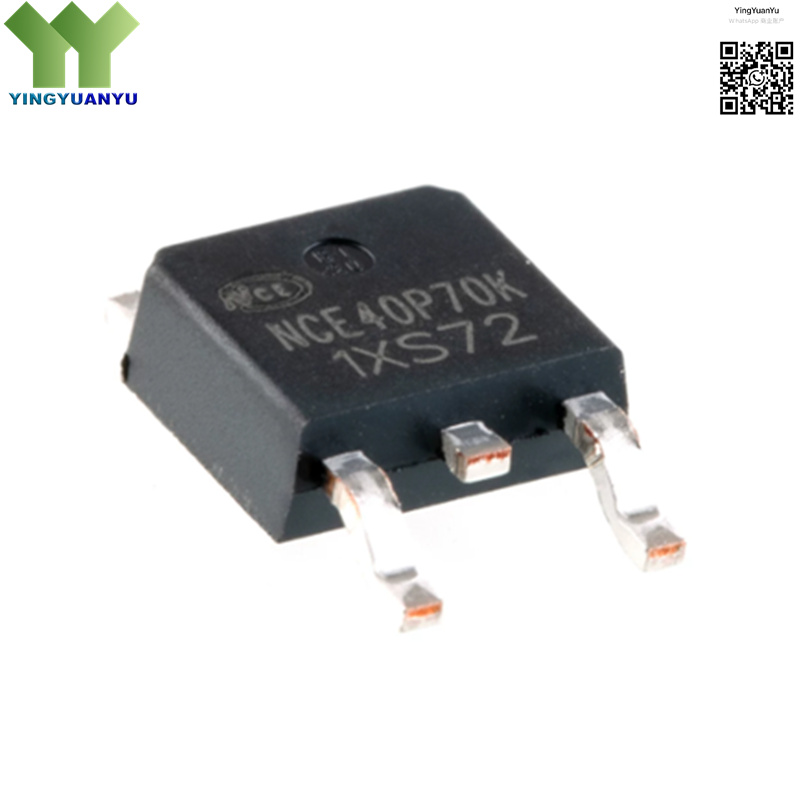

NCE40P70K
NCE40P70K
| Part Number | NCE40P70K |
|---|---|
| Manufacturer | NCE Semiconductor |
| Category | Discrete Semiconductors; P-Channel Power MOSFET |
| Description | P-Channel Enhancement Mode Power MOSFET, 40V, 70A,10 mΩ, Low Rds(on), TO-252-2L (DPAK) Surface Mount Package |
Product Overview
The NCE40P70K is a high-performance P-channel power MOSFET developed by NCE Semiconductor. Adopting advanced trench technology, this device features low on-resistance, large current carrying capacity, fast switching speed and excellent heat dissipation. It delivers low power loss, high stability and strong shock resistance, which is well suited for various high-current power switching, battery management, DC-DC conversion and motor drive applications in consumer and industrial electronic products.
| Key Specifications | |
|---|---|
| Brand | NCE Semiconductor |
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Package / Case | TO-252-2L (DPAK) |
| Mounting Type | Surface Mount (SMD) |
| Surface Marking / Silkscreen | NCE40P70K |
| Drain-Source Voltage (Vdss) | 40 V |
| Continuous Drain Current (Id) | 70 A |
| On-State Resistance (Rds(on)) | 10 mΩ (Max) |
| Operating Temperature | -55°C to +150°C |
Typical Applications
- High Current DC-DC Converters
- Battery Management and Protection Circuits
- Power Switching and Load Control Systems
- Motor Drive and Controller Modules
- Portable Electronic Power Supplies
- Industrial Power Distribution Equipment
- Automotive Electronic Control Units
- High Density Power PCB Designs
Order & Shipping Info
Minimum Order Quantity (MOQ): 1 Piece
Shipping Time: Shipped within 1-2 business days
Delivery Time: 3-7 working days worldwide
Shipping Methods: DHL, UPS, FedEx, EMS
Payment Methods: T/T (Bank Transfer), PayPal, Credit Card, Western Union
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
