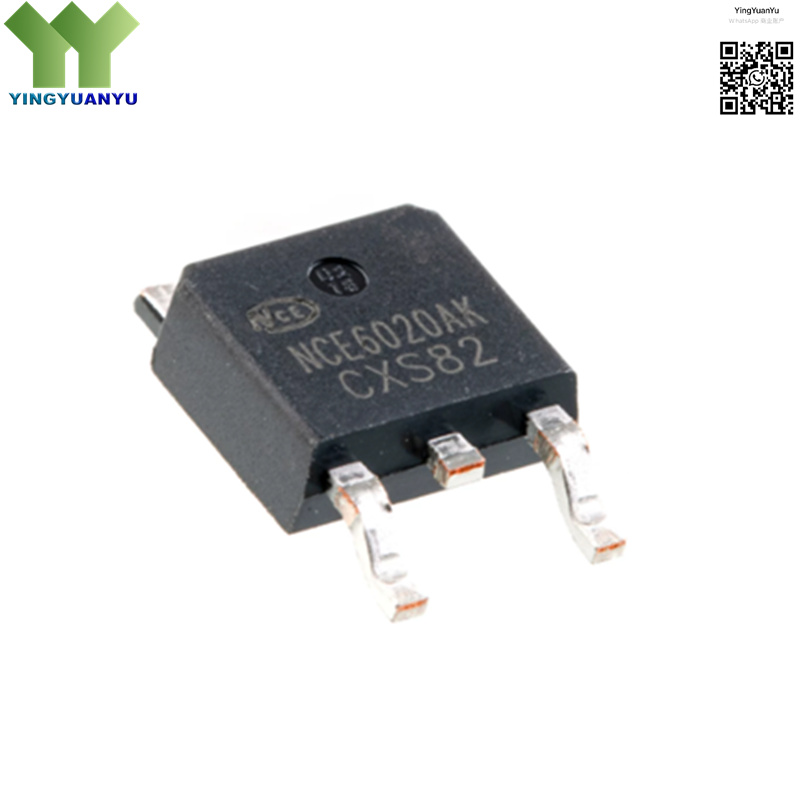

NCE6020AK
NCE6020AK
| Part Number | NCE6020AK |
|---|---|
| Manufacturer | NCE Semiconductor |
| Category | Discrete Semiconductors; N-Channel Power MOSFET |
| Description | N-Channel Enhancement Mode Power MOSFET, 60V, 20A,40 mΩ, Low Rds(on), TO-252 (DPAK) Surface Mount Package |
Product Overview
The NCE6020AK is a high-performance N-channel enhancement mode power MOSFET manufactured by NCE Semiconductor. Utilizing advanced trench MOSFET technology, it provides low on-state resistance, high continuous drain current, fast switching speed, and excellent thermal stability. This device offers high power efficiency, robust reliability, low power dissipation, and stable operation in power switching, DC-DC conversion, battery management, and motor drive applications, with a compact TO-252 surface-mount package for high-density PCB assembly and efficient heat dissipation.
| Key Specifications | |
|---|---|
| Brand | NCE Semiconductor |
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Package / Case | TO-252 (DPAK) |
| Mounting Type | Surface Mount (SMD) |
| Surface Marking / Silkscreen | NCE6020AK |
| Drain-Source Voltage (Vdss) | 60 V |
| Continuous Drain Current (Id) | 20 A |
| On-State Resistance (Rds(on)) | 40 mΩ (Max) |
| Operating Temperature | -55°C to +150°C |
Typical Applications
- DC-DC Converters & Voltage Regulators
- Power Switching & Load Control Systems
- Battery Management & Protection Circuits
- Motor Drive & Control Modules
- Switching Power Supplies & Adapters
- Industrial Power Control Equipment
- LED Lighting Driver Circuits
- Automotive & Consumer Electronic Power Systems
Order & Shipping Info
Minimum Order Quantity (MOQ): 1 Piece
Shipping Time: Shipped within 1-2 business days
Delivery Time: 3-7 working days worldwide
Shipping Methods: DHL, UPS, FedEx, EMS
Payment Methods: T/T (Bank Transfer), PayPal, Credit Card, Western Union
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
