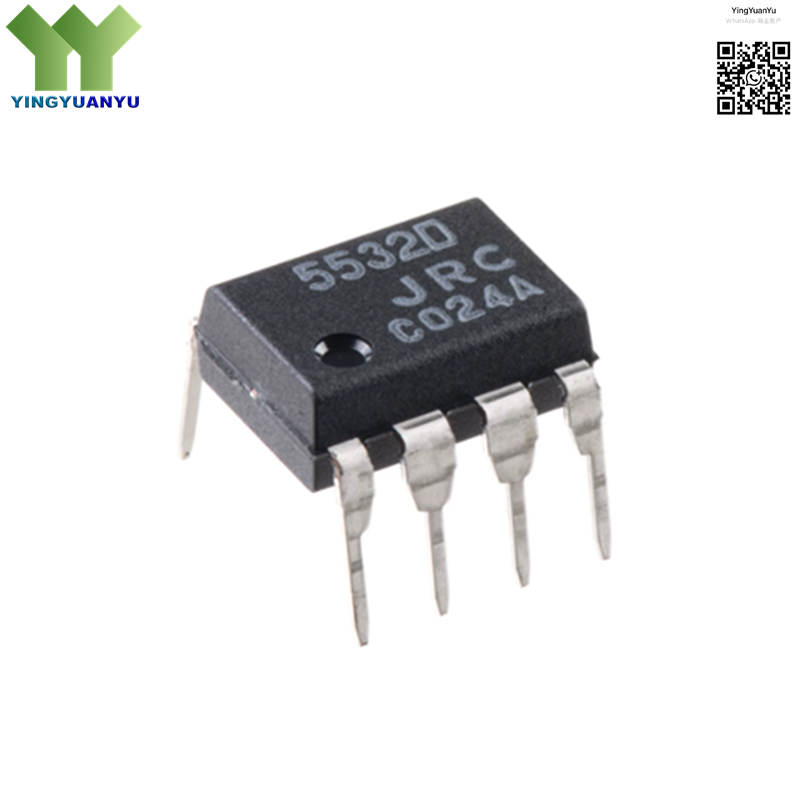

NJM5532D
NJM5532D
| Part Number | NJM5532D |
|---|---|
| Manufacturer | JRC (Nisshinbo) |
| Category | Operational Amplifiers; Dual Low Noise Audio Op-Amp |
| Description | Dual High Performance Low Noise Audio Operational Amplifier,10MHz GBW, DIP-8 Through-Hole Package |
Product Overview
The NJM5532D is a high-quality dual operational amplifier specially designed for audio applications. It features ultra-low noise, low distortion, high slew rate and wide bandwidth, delivering outstanding audio performance. This device requires no external compensation and operates stably under various conditions. With excellent sound reproduction capability and reliable performance, it is widely used in professional audio equipment, consumer audio products and analog signal processing circuits.
| Key Specifications | |
|---|---|
| Brand | JRC (Nisshinbo) |
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Package / Case | DIP-8 |
| Mounting Type | Through Hole |
| Surface Marking / Silkscreen | 5532D Marking |
| Channel Quantity | Dual Channel |
| Supply Voltage | ±3V to ±18V |
| Slew Rate | 9 V/μs (Typical) |
| Operating Temperature | -40°C to +85°C |
Typical Applications
- Audio Preamplifier and Power Amplifier Circuits
- Hi-Fi Audio Systems and Stereo Equipment
- Professional Audio Mixers and Processors
- Active Audio Filters and Equalizers
- Musical Instrument Audio Modules
- Multimedia and Home Theater Devices
- High Precision Analog Signal Amplification
- General Purpose Low Distortion Amplifier Circuits
Order & Shipping Info
Minimum Order Quantity (MOQ): 1 Piece
Shipping Time: Shipped within 1-2 business days
Delivery Time: 3-7 working days worldwide
Shipping Methods: DHL, UPS, FedEx, EMS
Payment Methods: T/T (Bank Transfer), PayPal, Credit Card, Western Union
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
