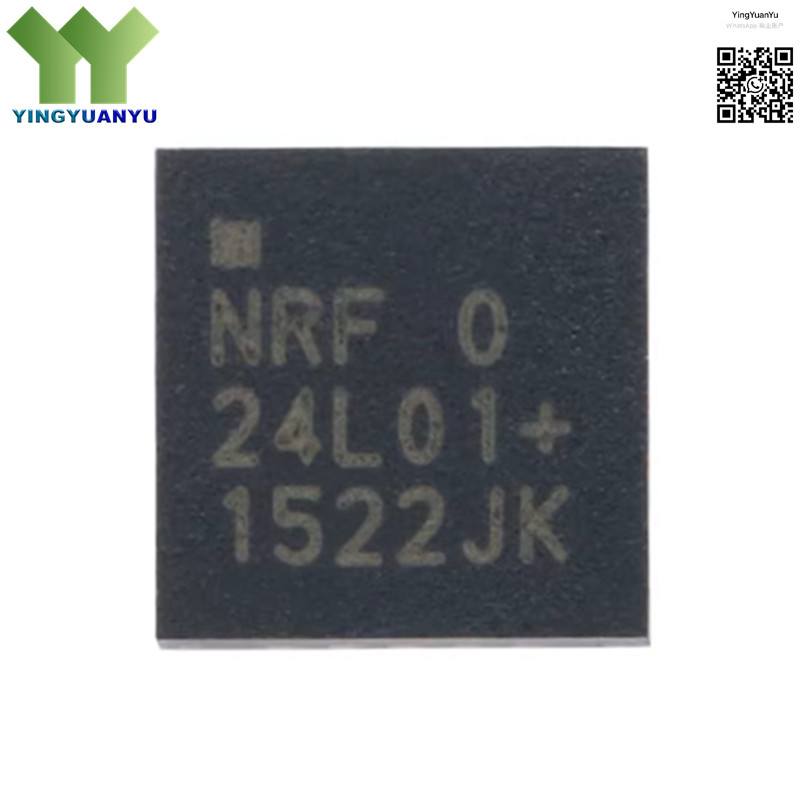

NRF24L01P-R
NRF24L01P-R
| Part Number | NRF24L01P-R |
|---|---|
| Manufacturer | Nordic Semiconductor |
| Category | Wireless RF Transceivers; 2.4GHz RF Communication ICs |
| Description | 2.4GHz Ultra-Low Power RF Transceiver, Enhanced ShockBurst™, SPI Interface, QFN-20 Package |
Product Overview
The NRF24L01P-R is a high-performance, ultra-low power 2.4GHz RF transceiver designed for 2.4GHz ISM band wireless communication applications. It integrates a fully integrated RF front end, baseband protocol engine with Enhanced ShockBurst™ hardware link layer, SPI host interface, and power management circuits for minimal external component count. The device supports high-speed data rates up to 2Mbps, auto-acknowledgment, auto-retransmission, and multi-channel frequency hopping for reliable and robust wireless connectivity. With ultra-low power consumption in standby and sleep modes, it is optimized for battery-powered IoT devices, wireless sensors, and portable electronics. Housed in a compact QFN-20 package, it enables small-form-factor wireless designs with excellent RF performance and low power dissipation.
| Key Specifications | |
|---|---|
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Brand | Nordic Semiconductor |
| Frequency Band | 2.4GHz ISM Band |
| Data Rate | 250kbps / 1Mbps / 2Mbps |
| Interface | SPI |
| Package Type | QFN-20 |
| Power Supply | 1.9V ~ 3.6V |
| Operating Temperature | -40°C to +85°C |
Typical Applications
- 2.4GHz Wireless Sensor Networks
- IoT and Smart Home Devices
- Low-Power Wireless Remote Controls
- Battery-Powered Wireless Communication
- Industrial Wireless Monitoring Systems
- Wearable Electronics
- Toys and Gaming Peripherals
- Consumer Electronics Wireless Connectivity
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
