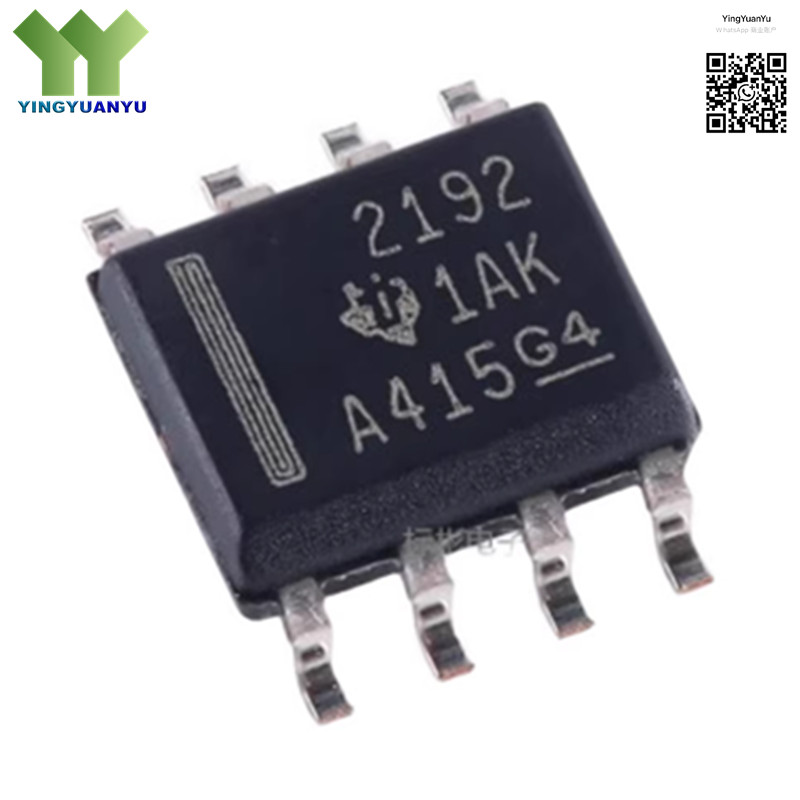

OPA2192IDR
OPA2192IDR
| Part Number | OPA2192IDR |
|---|---|
| Manufacturer | Texas Instruments Incorporated |
| Category | Integrated Circuits (ICs) > Linear > Amplifiers > Operational Amplifiers |
| Description | Dual Precision Operational Amplifier, 36V, Zero-Drift, Low Noise, Rail-to-Rail Output, -40 to 125°C, SOIC-8 |
Product Overview
The OPA2192IDR is a dual-channel, zero-drift precision operational amplifier from Texas Instruments, designed for high-accuracy, low-drift signal conditioning applications. This device combines ultra-low offset voltage, near-zero drift over time and temperature, and low-noise performance, making it ideal for precision sensing, instrumentation, and measurement systems. Supporting a wide supply voltage range up to 36V and featuring rail-to-rail output swing, the OPA2192IDR ensures maximum dynamic range in industrial and high-voltage systems. With exceptional ESD protection and extended temperature operation, this op-amp delivers reliable performance in harsh environments.
Key Specifications
| Parameter | Value |
|---|---|
| RoHS | Compliant (RoHS 2/3 Compliant, Lead-Free) |
| EDA/CAD Models | Available (Gerber, STEP, IDF, Symbol, Footprint) |
| Warranty | 3 Years Standard Warranty |
| Brand | Texas Instruments (TI) |
| Amplifier Type | Dual Zero-Drift Precision Op-Amp |
| Supply Voltage Range | ±1.35V to ±18V / 2.7V to 36V |
| Offset Voltage | ±5µV (Max) |
| Gain Bandwidth | 10MHz |
| Operating Temperature | -40°C to +125°C |
| Package Type | SOIC-8 |
Typical Applications
- Precision Instrumentation and Measurement Systems
- Sensor Signal Conditioning (Strain, Pressure, Temperature)
- Industrial Process Control and Data Acquisition
- High-Accuracy Active Filters
- Medical Diagnostic Equipment
- Low-Level Signal Amplification
- High-Voltage Precision Analog Circuits
- Test and Measurement Equipment
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
