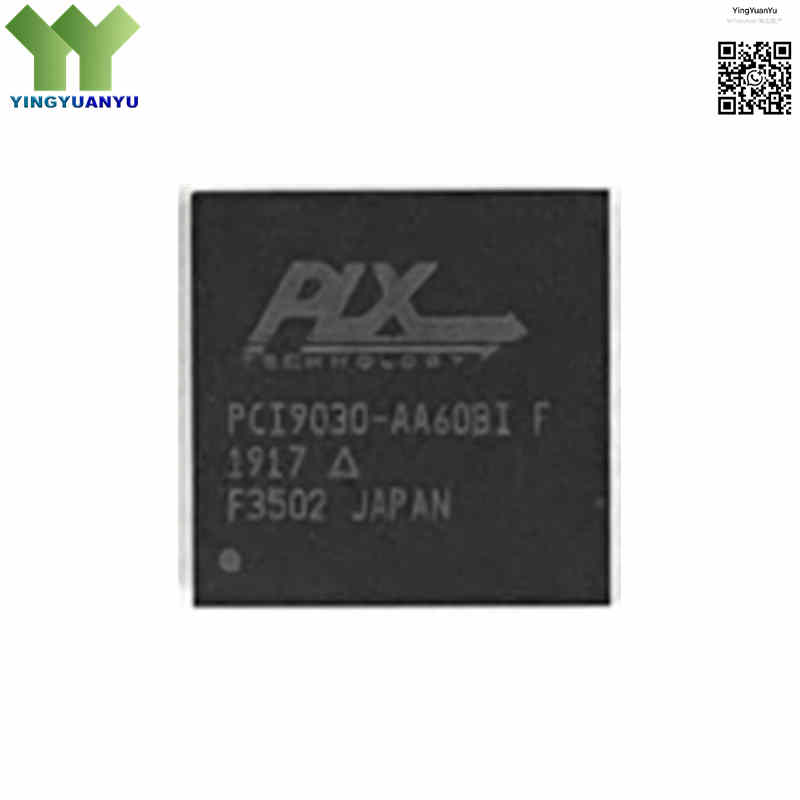

PCI9030-AA60BIF
PCI9030-AA60BIF
| Part Number | PCI9030-AA60BIF |
|---|---|
| Manufacturer | Broadcom (Originally PLX Technology) |
| Category | Integrated Circuits (ICs) > Interface – Specialized / PCI Target I/O Accelerators |
| Description | SMARTTarget PCI 9030 local bus interface accelerator bridging 32-bit, 33MHz PCI v2.2 with flexible 30MHz synchronous/asynchronous local endpoints, featuring 4 programmable chip selects and integrated burst management in an industrial 176-pin PBGA footprint. |
| Stock Status | In Stock |
| Origin | Original Factory |
Product Overview
The PCI9030-AA60BIF is a high-efficiency 32-bit PCI target controller designed by PLX Technology (Broadcom). Compliant with PCI 2.2 (32-bit, 33MHz), this SMARTTarget chip avoids the high power and complex design costs of bus-mastering chips. It integrates bidirectional FIFOs and clock isolation logic, supporting up to 30MHz synchronous/asynchronous local bus without disrupting PCI timing. Compatible with 8/16/32-bit multiplexed or non-multiplexed local bus, it connects MCUs, peripherals and FPGAs directly. With 4 programmable chip selects and hardware interrupt routers, it simplifies bus handshaking. Packaged in industrial 176-pin PBGA, it fits industrial network equipment, test instruments and legacy embedded systems.
Core Advantages
Cost-Effective SMARTTarget™ Engineering
Optimized target-only architecture cuts design costs and boosts bandwidth with no extra software workload.
Multi-Mode Local Bus Compatibility
Works with 8/16/32-bit multiplexed/non-multiplexed bus, connecting MCUs and FPGAs without extra glue circuits.
Independent Asynchronous Clock
Separates 33MHz PCI clock and max 30MHz local bus clock to ease strict PCB timing constraints.
Industrial Wide Temp Range
Runs stably from -40°C to +85°C for factory automation and rugged embedded devices.
Key Specifications
| Brand | Broadcom / PLX Technology SMARTTarget™ PCI Interface Accelerator Series |
|---|---|
| RoHS Status | RoHS Compliant / Lead-Free Industrial Package |
| EDA/CAD Model | 3D STEP Models, Schematic Symbols, and Pinout Footprint Layouts available upon request |
| Warranty | 1-Year Standard Quality Warranty |
| Package / Case | 176-PBGA (15mm × 15mm × 1.00mm) |
| Mounting Type | Surface Mount Technology (SMD/SMT Lead-Free Reflow SMT Assembly) |
| Surface Marking / Silkscreen | PCI9030-AA60BIF Marking |
| PCI Protocol Compliance | PCI Local Bus Specification Revision 2.2 Compliant (32-Bit, 33MHz Operational Target) |
| Local Bus Width Support | Configurable 8, 16, or 32-Bit Parallel Local Bus Interfaces |
| Local Bus Speed Maximum | Up to 30 MHz synchronous operation (unlimited asynchronous parameters) |
| Programmable Chip Selects | 4 Independent Local Chip Selects with variable boundary configuration maps |
| Integrated Interrupt Handlers | 2 Low-latency local interrupt input pins mapped directly onto the master PCI INT# line |
| Configuration Interface | External Serial EEPROM link connection for automatic cold-boot register initialization |
| Core Power Supply Input Vcc | 3.3 V Core Supply Input Voltage (featuring full 5.0 V tolerant I/O logic pin immunity) |
| Operating Temperature Range | -40°C to +85°C (Extended Industrial Thermal Operational Spectrum) |
Typical Applications
- Industrial Control PCs, Communication Expansion Slots, and CompactPCI Target Board Interfacing
- Multi-Channel High-Precision Data Acquisition Boards, Lab Instruments, and Sensor Interface Backplanes
- Telecommunication Control Interface Hubs, WAN Gateways, and Internal Multi-Bus Router Bridges
- Military Embedded Computing Systems, Commercial Avionics Monitors, and Rugged Field Test Equipment
- Legacy ISA-to-PCI Bus Migration Solutions, Custom FPGA Co-Processor Racks, and Medical Imaging Frontends
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Shipped within 1-2 business days |
| Delivery Time | 3-7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
Q1: Is PCI9030-AA60BIF 100% original?
A1: All stock are brand new genuine PLX/Broadcom original parts. Strict ESD inspection & vacuum moisture-proof packaging guarantee full integrity.
Q2: Main difference between PCI9030 and PCI9054?
A2: PCI9054 is bus master with independent DMA function; PCI9030 is pure SMARTTarget slave chip, lower power & cost for peripheral equipment without master demands.
Q3: What do AA60 and BIF in part number stand for?
A3: AA60 = silicon layout & speed grade; BI = 176-pin PBGA package; F = industrial temp range -40℃ ~ +85℃.
Q4: Must this IC use external EEPROM?
A4: It works with internal default registers, but external serial EEPROM (e.g. 93LC46B) is recommended. It auto-loads VID/DID & chip select parameters on power-up for plug-and-play driver compatibility.
