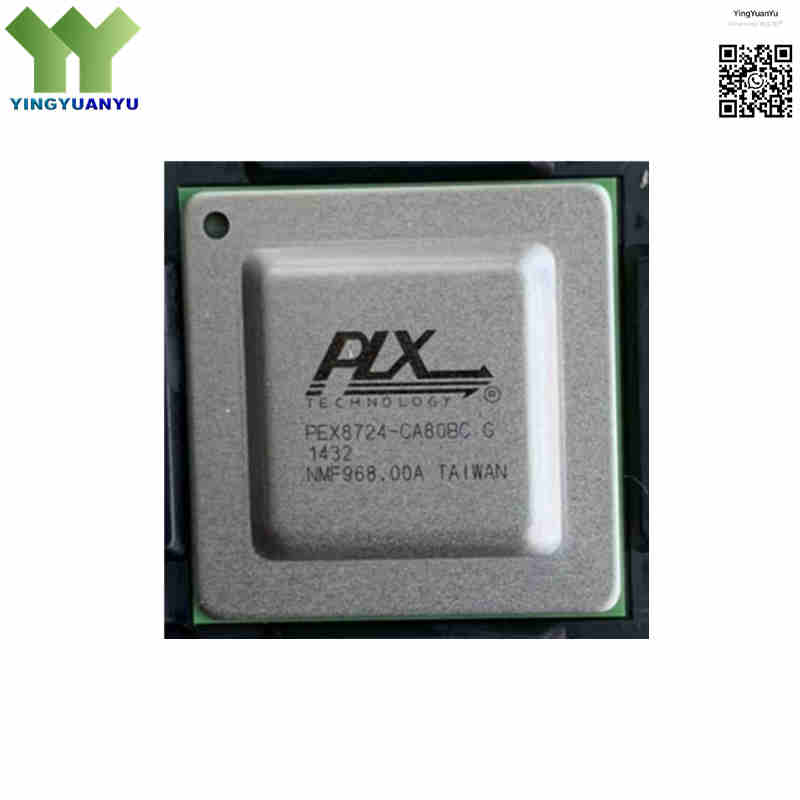

PEX8724-CA80BC G
PEX8724-CA80BC G
| Part Number | PEX8724-CA80BC G |
|---|---|
| Manufacturer | Broadcom / PLX Technology |
| Category | Integrated Circuits (ICs) > Interface > PCI Express (PCIe) Switches |
| Description | 24-Lane, 6-Port, PCIe Gen 3 (8.0 GT/s) ExpressLane™ Multihost PCI Express Switch, Lead-Free/RoHS Compliant 324-Pin HFCBGA Package. |
| Stock Status | In Stock |
| Origin | Original Factory |
Product Overview
The PEX8724-CA80BC G is a low-latency 24-lane 6-port PCIe Gen3 switch from Broadcom (ex PLX). Running at 8.0 GT/s per lane, it adopts ExpressLane multi-host architecture to support host failover and high-speed DMA transmission. Compatible backward with PCIe Gen1/Gen2, this lead-free 324-ball HFCBGA chip suits cloud servers, storage controllers, accelerators and high-performance embedded hardware.
Core Advantages
Flexible Lane Bifurcation
Configurable port bifurcation, split 24 PCIe Gen3 lanes into up to 6 ports with x1/x2/x4/x8 width options.
Multi-Host & Non-Transparent Bridging (NTB)
Dual-host design with NTB function, enables multi-CPU clusters to share resources with isolation and backup redundancy.
DMA Engine Integration
Built-in DMA controller per port, realizing fast endpoint data transmission without occupying host CPU resources.
Power-Efficient, Compact Package
40nm process + 19×19mm HFCBGA packaging, great heat dissipation and small footprint for dense PCB layout.
Key Specifications
| Brand | Broadcom® / PLX ExpressLane™ Series |
|---|---|
| RoHS Status | RoHS Compliant / Lead-Free Green Material Matrix (“G” suffix) |
| EDA/CAD Model | Schematic Symbols, PCB Footprints, and IBIS simulation files are available upon request |
| Warranty | 1-Year Standard Quality Warranty |
| Package / Case | 324-HFCBGA / FCBGA (19x19mm) |
| Mounting Type | Surface Mount |
| Surface Marking / Silkscreen | PEX8724-CA80BC G Marking |
| PCIe Standard | PCI Express Gen 3.0 (Fully compatible with Gen 2.x and Gen 1.x) |
| Total Lane Count | 24 Lanes |
| Total Port Count | Up to 6 Configurable Ports |
| Bandwidth Rate | 8.0 GT/s per lane (Up to 48 GB/s total bi-directional switching capacity) |
| Latency | Typical max packet latency 106ns for peer-to-peer data transfers |
| Core Voltage (VDD) | 0.9V Nominal Digital Core Power Rail |
| I/O / SerDes Voltage | 1.0V and 1.8V Analog Power Rails |
| Operating Temperature Range | 0°C to +70°C Commercial Grade Standard |
| Key Functions | Non-transparent bridge, flexible lane bifurcation, multi-host support, integrated DMA engine |
| Data Rate Per Lane | 8 Gigatransfers per second (GT/s) |
| Min Order Package Qty | 84 Pieces per tray |
| Interface Type | PCI Express Switch |
Typical Applications
- Enterprise-Grade Storage Servers, NVMe JBOF (Just a Bunch of Flash) Arrays, and RAID Controllers
- High-Performance Computing (HPC) Clusters, GPU Expansion Chassis, and AI Accelerators
- Network Interface Cards (NICs), High-Speed Edge Gateways, and Routers
- Industrial embedded controllers, Industrial PC Backplanes, and Test Equipment Backplanes
- Medical Imaging Workstations, Video Production Switches, and Simulation Systems
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Shipped within 1-2 business days |
| Delivery Time | 3-7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
Submit datasheet, sample, stock & bulk price requests via inquiry form. We respond within 24 hours.
Frequently Asked Questions
Q1: What does “G” suffix in PEX8724-CA80BC G mean?
A1: “G” stands for green environmental grade. This chip is lead-free, halogen-free and fully RoHS compliant with eco-friendly solder materials.
Q2: Is PEX8724-CA80BC G compatible with PCIe Gen1/Gen2?
A2: Yes. It auto-negotiates 2.5GT/s or 5.0GT/s for older PCIe devices without firmware changes.
Q3: What is Non-Transparent Bridging (NTB)?
A3: NTB isolates two host processors, allowing secure data exchange between multi-CPU clusters without full RAM access, ideal for failover server systems.
Q4: How to cool this BGA chip for long operation?
A4: Use high thermal conductivity thermal pad, add PCB thermal vias under BGA pads, or install passive heat sinks. Contact us for thermal layout files.
Q5: What is the minimum order quantity for this part?
A5: Standard tray packaging is 84 pcs. Small sample orders are available upon request.
Q6: Does this PCIe switch support lane bifurcation?
A6: Yes. Its 24 lanes can be split into up to 6 ports in x1/x2/x4/x8 combinations for flexible hardware layout.
Q7: What’s the operating temperature range of PEX8724-CA80BC G?
A7: Commercial grade range 0°C ~ +70°C, suitable for server and embedded industrial equipment.
Q8: Can you provide PCB footprint and IBIS simulation files?
A8: Sure, send us an inquiry and we will share complete CAD design documents free of charge.
Q9: How long is the warranty for this semiconductor chip?
A9: We offer a 1-year quality warranty for all original factory stock.
Q10: Is the stock genuine original Broadcom product?
A10: All inventory are original factory parts with complete batch traceability and production marking.
