PEX8796-AB80BIG
PEX8796-AB80BIG
| Part Number | PEX8796-AB80BIG |
|---|---|
| Manufacturer | Broadcom / PLX Technology |
| Category | Integrated Circuits (ICs) > Interface > PCI Express Switches / Specialized Controllers |
| Description | 96‑Lane, 24‑Port PCI Express Gen 3 (8.0 Gbps) Switch IC, Multi‑Root Multi‑Host Interconnect, FCBGA‑1156 (35x35mm) Industrial Grade Package. |
| Stock Status | In Stock |
| Origin | Original Factory |
Product Overview
PEX8796‑AB80BIG is Broadcom (ex‑PLX) industrial‑grade PCIe Gen3 switch IC. It provides 96‑lane / 24‑port 8.0Gbps bandwidth with Multi‑Root and NTB capability, built for multi‑host enterprise servers, AI computing and high‑density storage systems. Packaged in FCBGA‑1156 (35×35mm), it supports flexible port partitioning for complex PCIe interconnect topologies.
Core Advantages
High‑Speed 96‑Lane PCIe Gen3 Bandwidth
96 configurable lanes at 8.0Gbps, suitable for GPU, NVMe and high‑speed network expansion.
Multi‑Root & NTB Multi‑Host Support
Native multi‑host architecture with NTB for system failover and cross‑domain data communication.
Wide Industrial Temperature Range
-40℃ ~ +85℃ operating range, stable for industrial and server hardware platforms.
Low‑Latency & Flexible Port Configuration
Low cut‑through latency, up to 24 configurable ports, supporting SerDes tuning and power‑saving modes.
Key Specifications
| Brand | Broadcom / PLX Technology |
|---|---|
| RoHS Status | RoHS‑3.0 Compliant / Lead‑Free / Green |
| EDA/CAD | Symbol, Footprint & 3D Model Available |
| Warranty | 1‑Year Standard Quality Warranty |
| Package / Case | FCBGA‑1156 (35×35 mm) |
| Mounting Type | Surface Mount Device (SMD/SMT) |

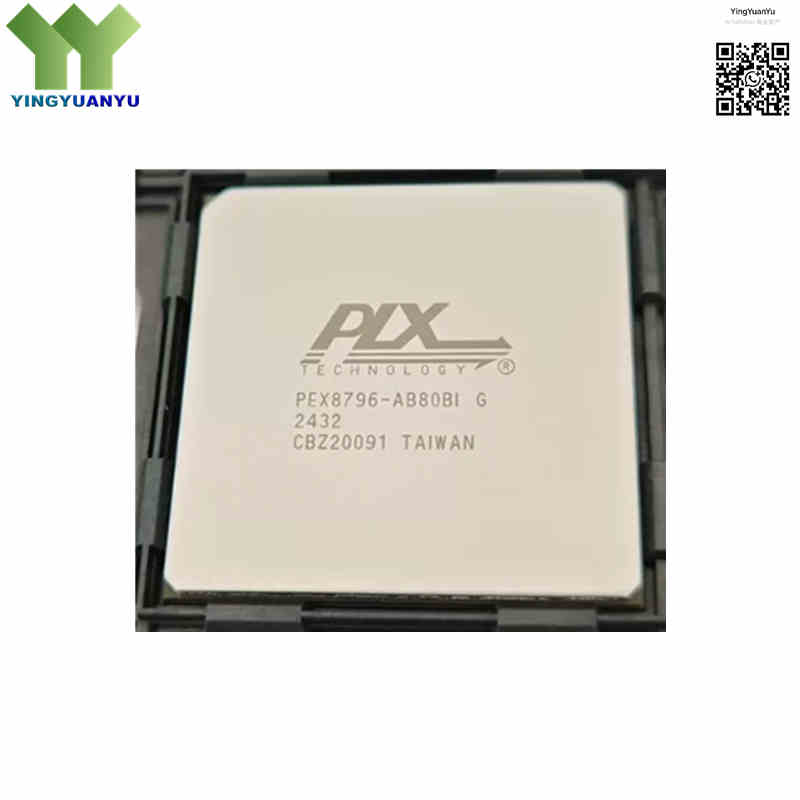

| Surface Marking / Silkscreen | PEX8796‑AB80BI G Marking |
| PCI Express Revision | PCIe Gen 3.0 (8.0 Gbps per lane) |
| Total PCIe Lanes | 96 Lanes |
| Total Configurable Ports | Up to 24 Ports |
| Special Features | Multi‑Root Architecture, Non‑Transparent Bridging (NTB), DMA Engine, Hot‑Plug Support |
| Core Power Supply Voltage | 0.9V DC (Nominal) |
| I/O Power Supply Voltage | 1.8V / 3.3V DC Compatible |
| Operating Temperature Range | -40°C to +85°C (Industrial Grade) |
| Moisture Sensitivity Level | MSL Level 4 (72‑hour) |
| Factory Packing | 72 pcs per tray, Anti‑Static Tray Packaging |
Typical Applications
- High‑Density AI / Machine Learning GPU acceleration server chassis
- Enterprise NVMe JBOF storage systems and SAN controllers
- Cloud data center multi‑host blade servers and high‑speed backplane switches
- High‑performance computing (HPC) systems and cluster interconnect platforms
- Industrial server equipment and multi‑root PCIe expansion hardware
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Shipped within 1‑2 business days |
| Delivery Time | 3‑7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
Q1: What is main function of PEX8796‑AB80BIG?
A: Industrial‑grade 96‑lane 24‑port PCIe Gen3 switch with Multi‑Root for multi‑host CPU, GPU and NVMe interconnection.
Q2: What is difference between Multi‑Root and NTB?
A: Multi‑Root allows multiple hosts to share ports directly. NTB supports conflict‑free data transfer for isolated host domains.
Q3: Is it backward compatible with PCIe Gen2 / Gen1?
A: Yes, auto‑negotiate speed and lane width, fully compatible with PCIe Gen2 & Gen1 devices.
Q4: What are similar Broadcom alternative parts?
A: PEX8794 (48‑lane lower spec), PEX8797 (higher‑end). No pin‑to‑pin replacement, hardware modification required.
Q5: How does it compare with competing PCIe Gen3 switches?
A: It has mature Multi‑Root & NTB firmware, widely used on enterprise servers. Competitors vary in lane count and power consumption.
Q6: How to get datasheet and bulk quotation?
A: Submit your requirement via inquiry form, we will send datasheet, stock status and price within 24 hours.
Q7: Notice for MSL Level‑4 moisture‑sensitive device?
A: MSL‑4 component. Complete reflow soldering within 72‑hours once moisture‑proof bag opened.
Q8: Can I change port lane count freely in hardware design?
A: Lane / port combination is configurable by firmware, follow official design reference for multi‑root layout.
