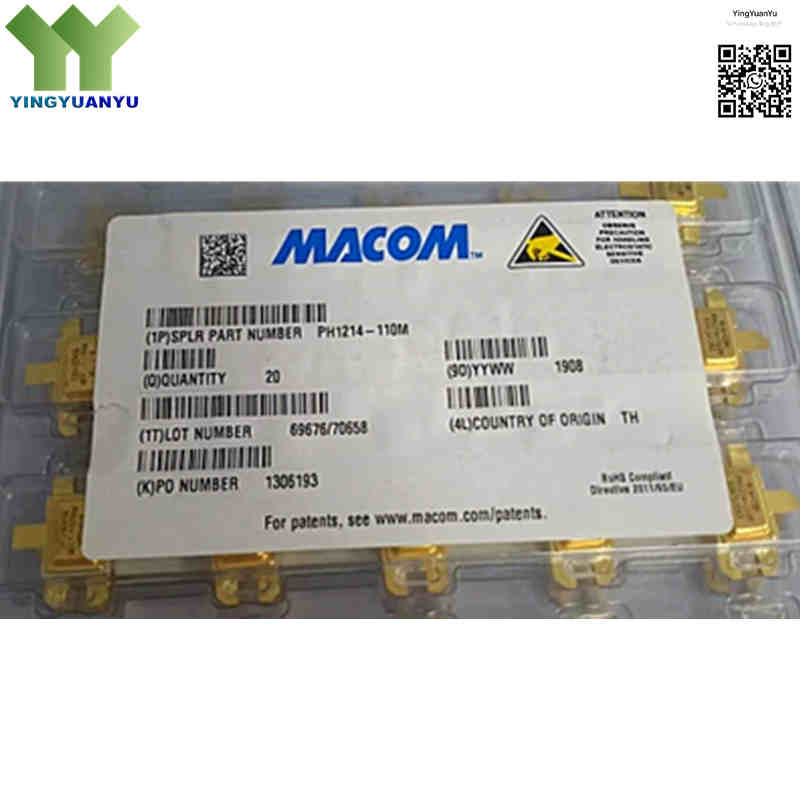

PH1214-110M
PH1214-110M
| Part Number | PH1214-110M |
|---|---|
| Manufacturer | MACOM Technology Solutions / Microsemi |
| Category | Discrete Semiconductor Products > Transistors – Bipolar (BJT) – RF |
| Description | L‑Band Radar Pulsed Power Silicon NPN Bipolar Transistor, 110W Peak Pulsed Power, 1.2‑1.4 GHz, 150µs 10% Duty, Flanged Hermetic Package. |
| Stock Status | In Stock |
| Origin | Original Factory |
Product Overview
The PH1214‑110M is silicon NPN RF power BJT for L‑band pulsed radar (1.2‑1.4 GHz). Under official 150 µs pulse width, 10% duty‑cycle test condition, it delivers 110W peak pulsed output power with high gain and collector efficiency. Gold metallization and emitter ballasting structure improve device reliability. Hermetic flange‑mount package is suitable for ATC, military and marine radar transmitter systems.
Core Advantages
High Peak Power for L‑Band Radar
110W peak pulsed power covering full 1.2‑1.4 GHz L‑band for radar transmit amplifier stages.
Gold Metallization & Emitter Ballasting
Built‑in emitter ballasting prevents thermal runaway, improves current uniformity and long‑term reliability under pulse working conditions.
Integrated Input‑Output Pre‑Matching
Internal impedance pre‑matching reduces external circuit tuning work and keeps consistent performance among devices.
Hermetic Flange Chassis‑Mount Package
Metal‑ceramic hermetic flange package for chassis mounting, excellent heat dissipation for pulsed high‑power operation.
Key Specifications
| Brand | MACOM / Microsemi |
|---|---|
| RoHS Status | RoHS Compliant Options Available |
| EDA / CAD | PCB Footprint & 3D Model Available upon Request |
| Warranty | 1‑Year Standard Quality Warranty |
| Package / Case | Hermetic Ceramic‑Metal Flange Package |
| Mounting Type | Chassis Mount / Flange Mount |
| Surface Marking / Silkscreen | PH1214‑110M |
| Transistor Type | RF NPN Silicon Bipolar Transistor |
| Frequency Range | 1.2 GHz to 1.4 GHz (L‑Band) |
| Peak Output Power (Pout) | 110 W (Pulsed, 150µs,10% Duty‑Cycle) |
| Power Gain | 7.5 dB to 8.5 dB (Typical) |
| Operating Collector Voltage (VCC) | 36 V to 40 V (Nominal) |
| Pulse Conditions | 150 μs Pulse Width, 10% Duty Cycle (Official Test Condition) |
| Collector Efficiency | ≥ 40% (Typical) |
| Thermal Resistance (θjc) | 0.85 ℃/W Typical |
| Collector‑Emitter Breakdown Voltage | 70 V Minimum |
| Operating Junction Temperature | Up to +200°C |
| Storage Temperature Range | ‑65°C ~ +200°C |
Typical Applications
- Air Traffic Control (ATC) Primary and Secondary Radar Transmitters
- Military L‑Band Pulsed Search and Surveillance Radar Systems
- IFF (Identification Friend or Foe) and Interrogator Transceivers
- Naval and Airborne L‑Band Radar Transmitters
- Pulsed L‑Band Power Amplifiers and Driver Stages
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Shipped within 1‑2 business days |
| Delivery Time | 3‑7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
Q1: What is main application and power rating for PH1214‑110M?
A: It is an L‑band pulsed radar transistor for 1.2‑1.4 GHz, delivering 110W peak pulsed RF power under official 150µs, 10% duty‑cycle test condition.
Q2: Is external impedance matching required for PH1214‑110M?
A: Internal pre‑matching is integrated, simplifying PCB design and stabilizing RF performance across 1.2‑1.4 GHz frequency band.
Q3: What are official test pulse conditions?
A: 150 µs pulse width, 10% duty‑cycle, 40V collector supply. Continuous‑wave operation without pulse modulation is forbidden.
Q4: What pin‑to‑pin compatible alternatives are available?
A: PH1214 series share same footprint: PH1214‑80M (80W), PH1214‑110M (110W), PH1214‑140M (140W). Higher‑power models can substitute lower‑power ones for safety margin; reverse substitution is not allowed for high‑power radar.
Q5: What does suffix “M” mean in PH1214‑110M?
A: “M” represents metal‑ceramic hermetic flange package, military‑grade sealing for harsh radar environment. This series has no plastic non‑M version.
Q6: Can PH1214‑110M run under CW continuous‑wave mode?
A: Not recommended. It is designed for pulsed‑only radar operation. CW operation will cause over‑heating and permanent device damage.
Q7: How to get datasheet, S‑parameter data or bulk price?
A: Please submit Quick Inquiry for datasheets, S‑parameter files, CAD models, stock status and volume quotation.
