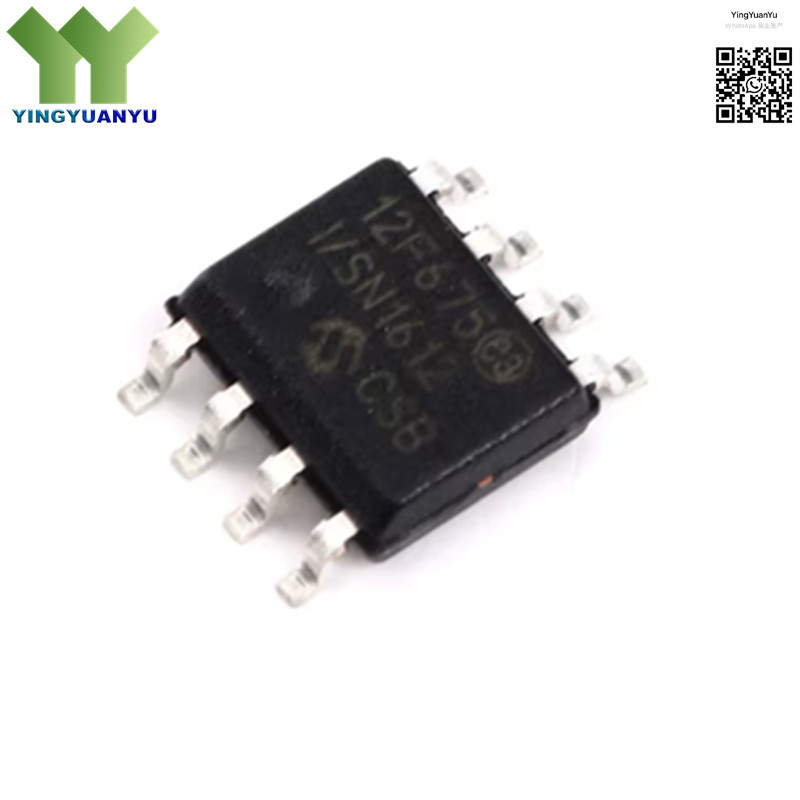

PIC12F675-I/SN
PIC12F675-I/SN
| Part Number | PIC12F675-I/SN |
|---|---|
| Manufacturer | Microchip Technology |
| Category | Microcontrollers; 8-Bit Flash Microcontrollers |
| Description | 8-Bit CMOS Microcontroller, 1KB Flash, 64B RAM, 128B EEPROM, SOIC-8 Package |
Product Overview
The PIC12F675-I/SN is a low-cost, high-performance 8-bit CMOS microcontroller featuring 1KB of self-programmable Flash program memory, 64 bytes of RAM, and 128 bytes of EEPROM data memory. It integrates a 4MHz internal oscillator, 10-bit Analog-to-Digital Converter (ADC), timers, and I/O ports in a compact SOIC-8 package, making it ideal for space-constrained embedded control applications. The device operates over a wide voltage range (2.0V to 5.5V) with low power consumption, supporting both industrial and commercial environments. With built-in watchdog timer, brown-out reset, and ESD protection, it delivers reliable performance for simple control tasks, sensor interfaces, and consumer electronics.
| Key Specifications | |
|---|---|
| RoHS Status | RoHS Compliant |
| EDA / CAD Models | 3D Model, Symbol, Footprint Available |
| Warranty | 2-Year Warranty |
| Brand | Microchip |
| Core | 8-Bit PIC |
| Memory | 1KB Flash, 64B RAM, 128B EEPROM |
| Peripherals | 10-bit ADC, Timer, WDT, I/O Ports |
| Package Type | SOIC-8 |
| Voltage Range | 2.0V ~ 5.5V |
| Operating Temperature | -40°C to +85°C |
Typical Applications
- Small Embedded Control Systems
- Consumer Electronics
- Sensor Interface & Data Acquisition
- Portable Battery-Powered Devices
- Home Appliance Controls
- LED Lighting Control
- Industrial Automation Modules
- Low-Power IoT Nodes
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
