RA07N4047M-501
RA07N4047M-501
| Part Number | RA07N4047M-501 |
|---|---|
| Manufacturer | Mitsubishi Electric |
| Category | Discrete Semiconductor Products / RF & Microwave Components > RF Power Amplifier Modules |
| Description | 7.5-Watt RF MOSFET Power Amplifier Module, 400 MHz to 470 MHz UHF Band, 9.6V Supply, Compact Surface/Flange Mount Module. |
| Stock Status | In Stock |
| Origin | Original Factory |
Product Overview
RA07N4047M-501 is a Mitsubishi high-efficiency UHF RF power amplifier module, working at 400–470MHz, nominal 9.6V supply. It delivers 7.5W typical output power with built-in 50Ω matching, supports VGG power control, adopts H46S package, suitable for portable two-way radios.
Core Advantages
High Power & Efficiency
7.3–7.5W output power, minimum 43% drain efficiency, prolongs battery life for handheld devices.
Internal 50Ω Matching
Input and output are pre-matched to 50Ω, simplifies RF circuit design and reduces PCB space.
Adjustable Power Control
Gate voltage VGG enables linear power adjustment, compatible with APC automatic power control.
Wide Voltage & Strong Load Tolerance
6.0–9.6V operating voltage, withstands 20:1 VSWR mismatch, stable in harsh antenna environments.
Key Specifications
| Brand | Mitsubishi Electric |
|---|---|
| RoHS Status | RoHS Compliant / Lead-Free |
| EDA / CAD | PCB Footprint & 3D Model Available upon Request |
| Warranty | 1-Year Standard Quality Warranty |
| Package / Case | H46S |
| Mounting Type | Surface Mount / Screw Flange Mount |
| Module Dimensions | 30 x 10 x 5.4 mm |

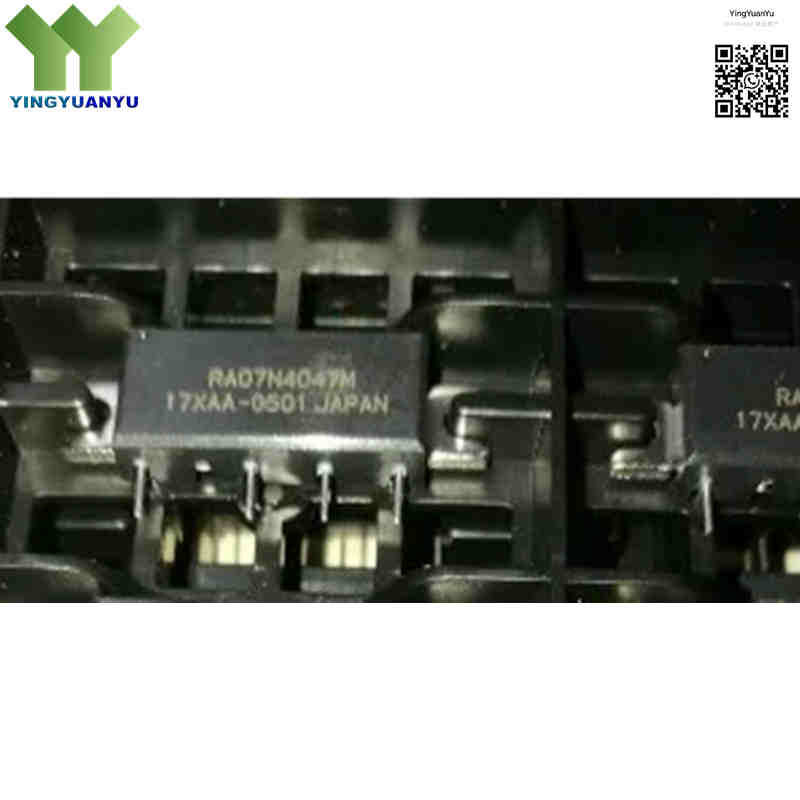

| Surface Marking / Silkscreen | RA07N4047M |
| Frequency Range | 400 MHz to 470 MHz (UHF Band) |
| Output Power (Pout) | Min 7.3W, Typ 7.5W (Pin = 20 mW, VDD = 9.6V, VGG = 3.5V); Absolute Max 10W |
| Drain Efficiency (ηD) | Min 43%, Typical 45% |
| Second Harmonic | ≤ -25 dBc |
| Input VSWR | 4:1 |
| Supply Voltage (VDD) | 9.6 V (Nominal, Operating Range 6.0V to 9.6V); Absolute Max 13.5V |
| Gate Control Voltage (VGG) | 2.5V ~ 3.5V (APC Control) |
| Gate Current (Igg) | Typical 1mA @ VGG=3.5V |
| Input/Output Impedance | 50 Ω Matched |
| Operating Case Temperature | -30°C to +90°C |
| Storage Temperature Range | -40°C to +110°C |
| Max Input Power (Pin) | 30 mW (Absolute Rating) |
Typical Applications
- UHF Handheld Radios and Portable Two-Way Transceivers
- Public Safety, Police, and Emergency Professional Mobile Radios (PMR)
- Commercial Land Mobile Radio (LMR) Walkie-Talkies
- Amateur Radio UHF Portable Equipment (70 cm Band)
- Industrial Wireless Data Modems and Low-Power UHF Repeaters
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Shipped within 1-2 business days |
| Delivery Time | 3-7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
Q1: What is the operating frequency range of the RA07N4047M-501?
A: It operates in the 400 MHz to 470 MHz UHF band.
Q2: Does this module need external 50-ohm matching circuits?
A: No, both input and output ports are internally matched to 50Ω, no external tuning components are required.
Q3: What is the nominal supply voltage of the PA module?
A: Nominal VDD is 9.6V, operating range 6.0V~9.6V, suitable for multi-cell battery powered handheld radios.
Q4: What do different suffixes of RA07N4047M series mean?
A: RA07N4047M: base model; -01: small batch tray packing; -101: tape & reel mass production; -E01: RoHS lead-free enhanced version; -501: anti-static tray (50pcs/tray). All versions share identical electrical specs.
Q5: Are all suffix variants pin-to-pin compatible?
A: Yes, all models have the same pinout, package size and electrical performance, direct replacement without PCB modification.
Q6: What is the maximum load VSWR tolerance?
A: It can withstand 20:1 load VSWR at full output power, no damage or performance drop under mismatched antenna conditions.
Q7: What are the temperature and voltage ratings?
A: Operating case temp: -30℃~+90℃; Storage temp: -40℃~+110℃; Absolute maximum drain voltage: 13.5V.
Q8: How to get datasheet, schematic and bulk pricing?
A: Please submit inquiry via our Quick Inquiry form, we will reply within 24 hours with official datasheet, application circuit and volume quotation.
