RA33H1516M1-501
RA33H1516M1‑501
| Part Number | RA33H1516M1-501 |
|---|---|
| Manufacturer | Mitsubishi Electric |
| Category | Discrete Semiconductor Products / RF & Microwave Components > RF Power Amplifier Modules |
| Description | 33‑Watt RF MOSFET Power Amplifier Module, 154 MHz to 162 MHz VHF Band, 12.5V Supply, H57 (H2M) Metal‑Ceramic Flange‑Mount Package. |
| Stock Status | In Stock |
| Origin | Original Factory |
Product Overview
RA33H1516M1‑501 is a 2‑stage VHF RF power amplifier module from Mitsubishi Electric, covering 154‑162 MHz for 12.5V mobile radio. It delivers ≥33W output with built‑in 50‑ohm matching. H57(H2M) metal‑ceramic flange‑mount package ensures good heat dissipation and VSWR ruggedness for land‑mobile and marine radio transmitters.
Core Advantages
High Power & Efficiency
≥33W output within 154‑162 MHz; typical 55% drain efficiency, low heat generation.
50‑Ohm Integrated Matching
On‑board input‑output impedance matching, no external tuning circuits required.
VGG Power Adjustment
0‑5V gate voltage control, compatible with APC automatic power‑control.
Reliable Mechanical Design
H57 flange‑mount package with strong VSWR tolerance for harsh field operation.
Key Specifications
| Brand | Mitsubishi Electric |
|---|---|
| RoHS Status | RoHS Compliant / Lead‑Free |
| EDA / CAD | PCB Footprint & 3D Model Available upon Request |
| Warranty | 1‑Year Standard Quality Warranty |
| Package / Case | H57 (Alias:H2M) Metal‑Ceramic RF Module Package |
| Mounting Type | Flange Screw‑Mount to Heatsink |
| Module Dimension | 46 × 14.4 × 6.3 mm |

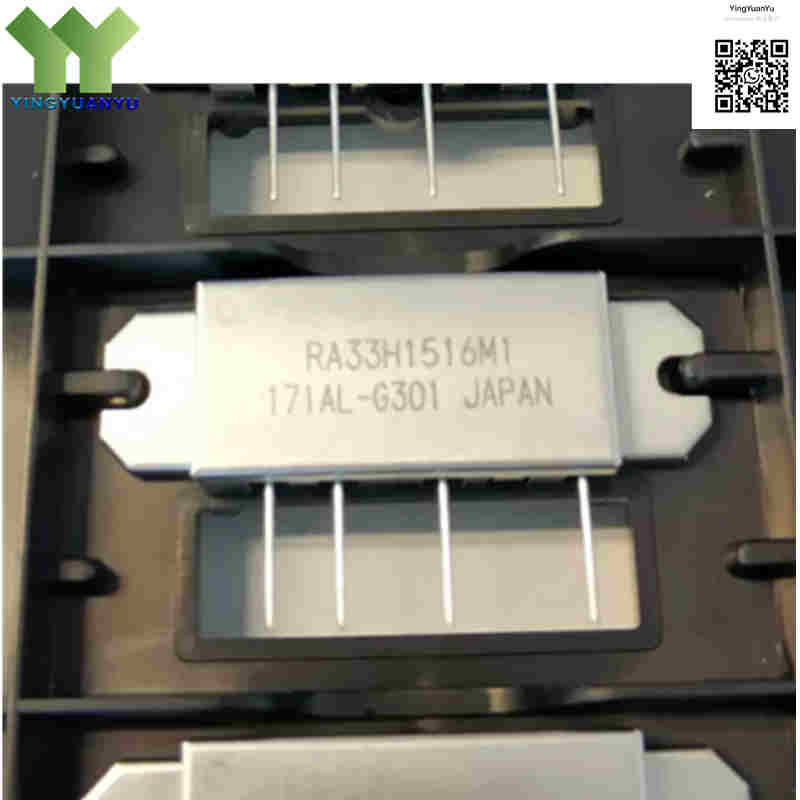

| Surface Marking / Silkscreen | RA33H1516M1 |
| Frequency Range | 154 MHz to 162 MHz (VHF Band) |
| Output Power (Pout) | > 33.0 W (at Pin = 50 mW, VDD = 12.5V, VGG = 5.0V) |
| Drain Efficiency (ηD) | > 50% (Typical 55%) |
| Supply Voltage (VDD) | 12.5 V Nominal; Operating range 9.8V ~ 15.0V |
| Gate Control Voltage (VGG) | 0 V to 5 V (APC Power‑Control) |
| Input/Output Impedance | 50 Ω Internally Matched |
| Operating Case Temperature | -30°C ~ +110°C |
| Device Characteristic | 2‑Stage VHF Power Amplifier Module, ESD‑Sensitive Device |
Typical Applications
- Commercial VHF Land Mobile Radio (LMR) Base Stations and Mobile Transceivers
- Marine VHF Radios and Navigation Communication Systems
- Public Safety, Tactical Transmitters, and Emergency Service Wireless Terminals
- Amateur Radio VHF High‑Power Transmitters (2‑Meter Band Extensions)
- Industrial Wireless Data Networks and Telemetry Communication Links
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Shipped within 1‑2 business days |
| Delivery Time | 3‑7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
Q1: What operating frequency range is covered by the RA33H1516M1‑501?
A: Tuned for 154‑162 MHz VHF band, suitable for land‑mobile and marine radio transmitters.
Q2: Does RA33H1516M1‑501 need external impedance‑matching circuit?
A: No. Built‑in 50‑ohm matching for input & output port, connect directly to 50‑ohm PCB trace.
Q3: What does suffix‑501 stand for? What is the difference between RA33H1516M1,‑501 and‑201?
A: Same die and H57(H2M) package. RA33H1516M1 is non‑RoHS base version.‑501 is standard RoHS grade.‑201 is RoHS with tighter RF bin‑sorting for mass production. All are pin‑to‑pin compatible.
Q4: How to adjust output power for this RF amplifier module?
A: Adjust VGG gate voltage 0‑5V, compatible with APC automatic power‑control circuits.
Q5: What is its package type and mounting requirement?
A: H57(H2M) metal‑ceramic flange package. Fasten firmly to heatsink for proper heat dissipation.
Q6: Are there cross‑reference alternative amplifier modules?
A: RA30H1317M1 can be referenced for lower‑power VHF application. Not direct drop‑in replacement; verify specs before design‑in.
Q7: Any special handling note for RA33H1516M1‑501?
A: It is ESD‑sensitive device. Apply ESD protection during assembly to prevent permanent damage.
Q8: How can I get datasheet and bulk quotation?
A: Submit your demand via Quick Inquiry form for datasheet, application note and volume pricing.
