S34ML01G100TFI000
S34ML01G100TFI000
| Part Number | S34ML01G100TFI000 |
|---|---|
| Manufacturer | Infineon Technologies (Spansion / Cypress) |
| Category | Integrated Circuits (ICs) > Memory > FLASH – NAND SLC |
| Description | High-reliability 1Gbit (128M x 8) 3.3V SLC NAND Flash with 8-bit bus, ONFI-compliant interface and built-in spare ECC buffer, designed for long-lifecycle embedded boot code and persistent data storage. |
| Stock Status | In Stock |
| Origin | Original Factory |
Product Overview

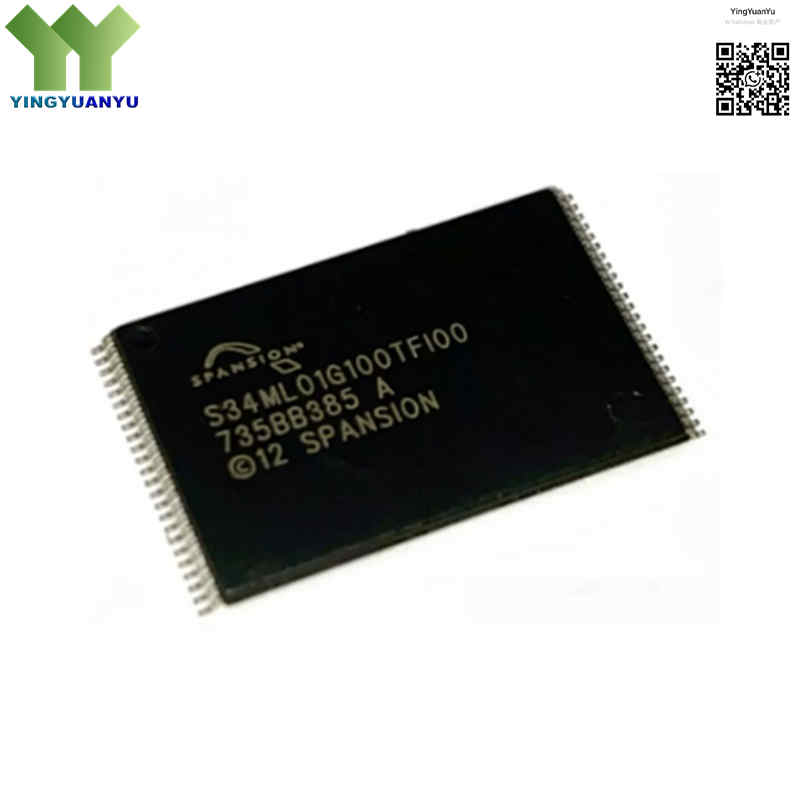

The S34ML01G100TFI000 is a 1Gbit SLC NAND Flash from Infineon (ex-Spansion/Cypress), operating at 2.7V~3.6V nominal 3.3V supply with x8 multiplexed I/O bus compatible with ONFI 1.0. The storage array contains 1024 blocks of 64 pages each; every page provides 2048 bytes main storage plus 64 bytes spare area for ECC processing. This SLC device delivers 100,000 program/erase cycles and long data retention, supporting fast page program, block erase and random read operations. Packaged in 48-pin TSOP-I (12mm×20mm), it serves as reliable non-volatile storage for network routers, industrial PLC, automotive telematics, smart meters and medical embedded equipment.
Core Advantages
Superior SLC NAND Endurance & Reliability
SLC cell design delivers up to 100,000 write/erase cycles and stable long-term data retention, far exceeding MLC/TLC flash for industrial long-life applications.
ONFI 1.0 Standard Compatibility
Fully compliant with ONFI 1.0 specification, enabling seamless connection with mainstream embedded processors and memory controllers without extra conversion logic.
Hardware Write Protection Mechanism
Integrated active-low WP# pin provides hardware lock for boot partition, preventing accidental data damage under unstable power supply conditions.
Low Power Consumption Design
Low active operating current plus automatic deep power-down standby mode reduces power draw and heat generation, ideal for battery-powered remote IoT sensors.
Key Specifications
| Brand | Infineon Technologies |
|---|---|
| RoHS Status | RoHS Compliant / Lead-Free Standard (Green Package Matrix) |
| EDA/CAD Model | 3D Model & PCB Footprint Available upon request |
| Warranty | 1-Year Standard Factory Warranty |
| Package / Case | TSOPI-48 (12mm x 20mm) |
| Mounting Type | Surface Mount Technology (SMD/SMT) |
| Surface Marking / Silkscreen | S34ML01G100TFI000 Marking |
| Memory Density | 1 Gbit (128MB, 128 Megabytes x 8-bit Configuration) |
| Technology Type | SLC (Single-Level Cell) NAND Flash Memory Architecture |
| Interface Bus Width | x8 Parallel Multiplexed I/O Port Interface |
| Page Size Parameters | 2,112 Bytes Total (2,048 Bytes Main Storage + 64 Bytes Spare ECC Buffer Area) |
| Block Size Dimensions | 128 KB Main Array Storage Area per Programmable Sector Block |
| Random Read Access Speed | 25 μs Maximum Initial Delay Window |
| Sequential Access Time | 25 ns Minimum Read/Write Data Cycle Rate |
| Operating Voltage Supply | 2.7V to 3.6V (Nominal 3.3V Main System Power Rail) |
| Operating Temperature Range | -40°C to +85°C (Industrial System Reliability Grade Envelope) |
| Program Page Time (tPROG) | Typical 200μs per page |
| Block Erase Time (tBERS) | Typical 2ms per 128KB block |
| Endurance Cycles | 100,000 Program/Erase Cycles Minimum |
| Data Retention | 10 Years Minimum at 85°C Operating Temperature |
| Write Protection Pin | Active-Low Hardware WP# Pin for Boot Area Lock |
| Compliance Standard | ONFI 1.0 Open NAND Flash Interface Specification |
Typical Applications
- Telecommunication Enterprise Core Routers, Network Switches, and Wi-Fi Access Point Gateways
- Industrial Control Interfaces, Human-Machine Interface (HMI) Panels, and Programmable Logic Controllers (PLCs)
- Automotive Infotainment OS Storage, Connected Car Telematics Units, and Fleet Monitoring Instrumentation
- Smart Utility Power Grid Meters, IoT Edge Data Loggers, and Environmental Remote Sensor Hubs
- Medical Patient Diagnostics Hardware, Embedded Surgical Imaging Gear, and Laboratory Telemetry Scanners
Order & Shipping Info
| Minimum Order Quantity (MOQ) | 1 Piece |
|---|---|
| Shipping Time | Shipped within 1-2 business days |
| Delivery Time | 3-7 working days worldwide |
| Shipping Methods | DHL, UPS, FedEx, EMS |
| Payment Methods | T/T (Bank Transfer), PayPal, Credit Card, Western Union |
Technical Support
For datasheet, sample requests, stock check, or bulk pricing, please use the Quick Inquiry form. We will reply within 24 hours.
Frequently Asked Questions
Q1: Is your currently available inventory of the S34ML01G100TFI000 100% genuine and original?
A: Yes, we guarantee that all S34ML01G100TFI000 devices in our inventory are 100% brand-new, factory-original products directly from Infineon Technologies. Every batch is tracked, logged, and packed inside standard moisture-barrier bags with strict anti-static ESD shielding measures.
Q2: What specific Error Correction Code (ECC) requirements does this SLC NAND flash demand from the host microprocessor?
A: The S34ML01G100TFI000 architecture generally requires a minimum of 1-bit ECC per 512-byte data block to protect data integrity over its full operating lifespan. Most modern microcontroller or FPGA embedded flash controllers support this natively.
Q3: What do the specific code segments “TF” and “I” signify inside the manufacturer’s part number suffix structure?
A: In the Infineon/Spansion part coding logic, “TF” specifies the 48-pin Thin Small Outline Package (TSOP Type I) mechanical outline footprint. The “I” explicit designator certifies that the chip is rated for the Industrial working temperature spectrum (-40°C to +85°C).
Q4: How can our technical division request IBIS hardware simulation models, raw software driver codes, or ask for high-volume wholesale pricing tiers?
A: Please complete our Quick Inquiry web form on this page with details about your processing parameters. Our application support desk will process your inquiry and dispatch the available technical documentation package within 24 hours.
